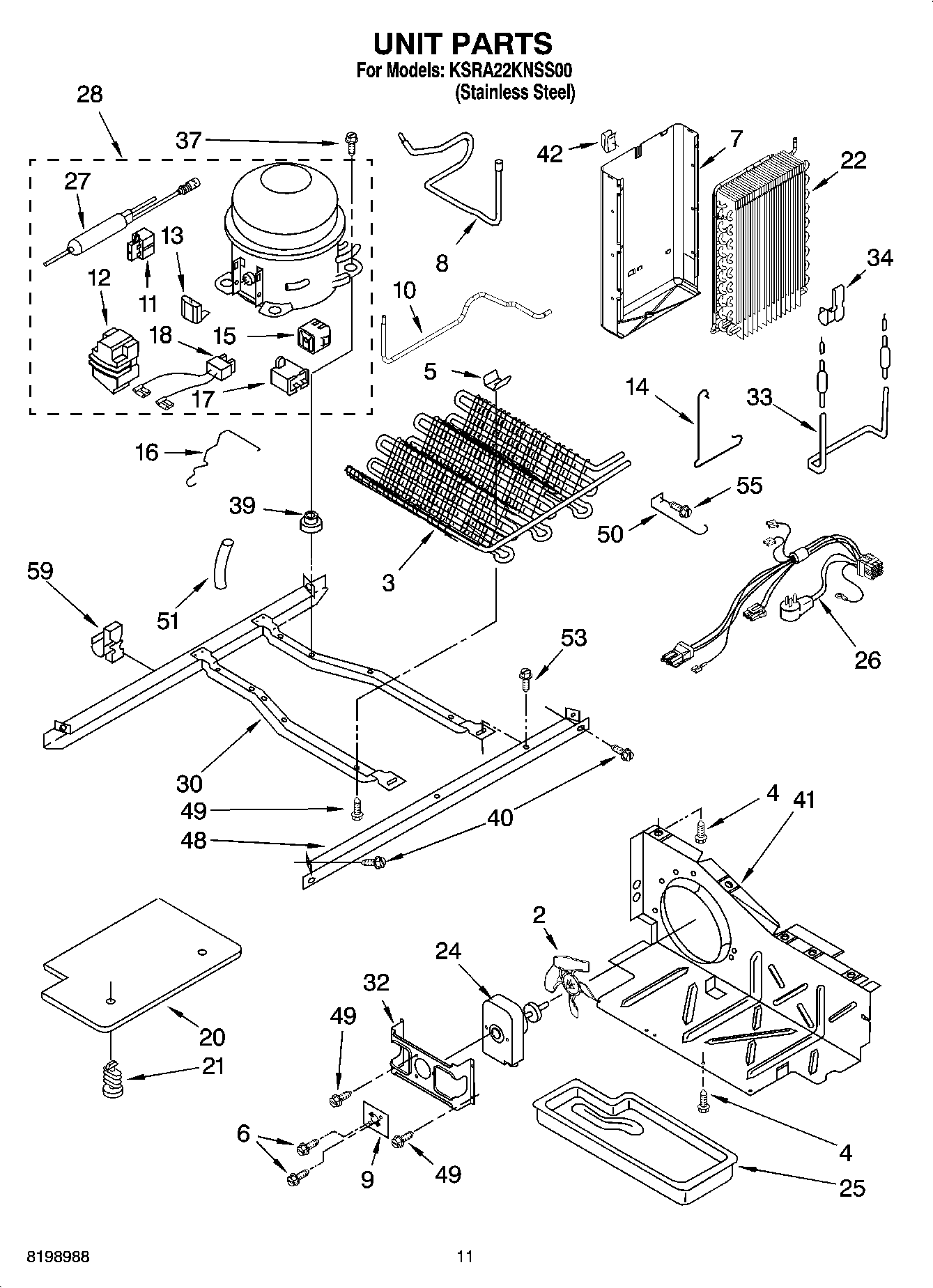

KSRA22KNSS00 08 – UNIT PARTS

KSRA22KNSS00 08 – UNIT PARTS

Written by

in

KSRA22KNSS00 08 – UNIT PARTS

Products

Position	Product
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	8281160 Whirlpool Screw
7	Heat Shield
8	2205764 Whirlpool Refrigerator Tube
9	Insert, Bracket
10	2261599 Whirlpool Refrigerator Tube
11	W10920279 Whirlpool Refrigerator Start Relay
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2187145 Whirlpool Refrigerator Overload
14	Clamp
15	8201786 Whirlpool Relay and Overload Start Kit
16	2223314 Whirlpool Refrigerator Clip
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	WP2172890 Whirlpool Refrigerator Wire
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	WP2187778 Whirlpool Refrigerator Wire Harness
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
39	876811 Whirlpool Grommet
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	W11544659 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	SLEEVE
53	WP489427 Whirlpool Refrigerator Screw
55	WP489478 Whirlpool Refrigerator Screw
59	and Optional Parts Not In
59	FOLLOWING PARTS NOT ILLUSTRATED
59	VALVE, ACCESS (5/8“)
59	978026 Whirlpool Refrigerator Primary Valve
59	978027 Whirlpool Refrigerator Primary Valve
59	978030 Whirlpool Refrigerator Valve
59	WP978025 Whirlpool Refrigerator Valve
59	VALVE, ACCESS (1/2“)
59	876764 Whirlpool Refrigerator Primary Valve
59	Clip, Wire & Tube
59	WPL ARI93142A9
