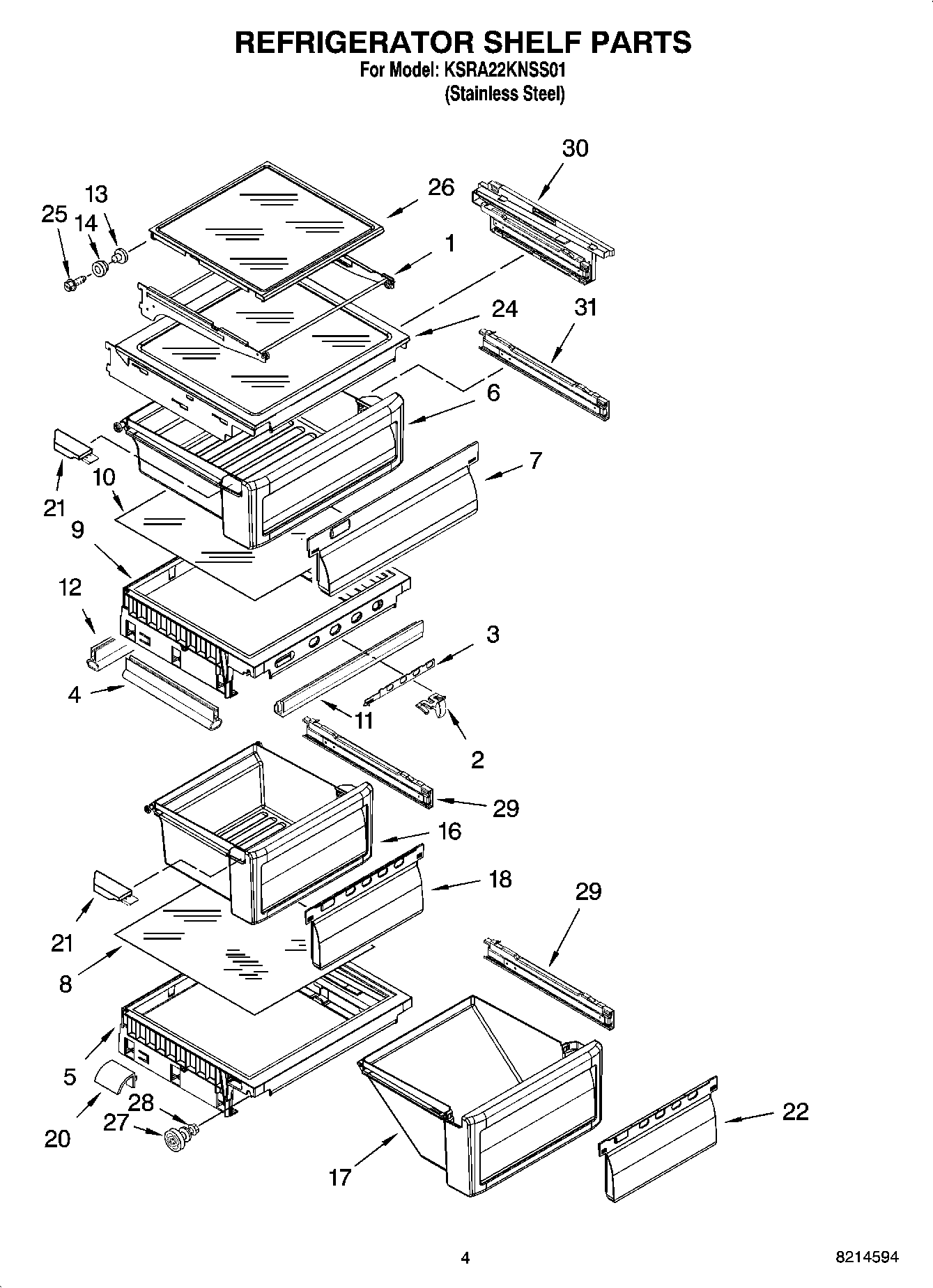

KSRA22KNSS01 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame Assembly
2	Knob, Humidity
3	2301026 Whirlpool Refrigerator Slide
4	2301117 Whirlpool Refrigerator Gasket
5	Cover, Meat Pan (Includes 20 & 24)
6	Snack Bin
7	Window, Snack Pan
8	Glass, Crisper Cover
9	Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
10	Glass, Meat Pan Cover
11	WP1125528 Whirlpool Refrigerator Gasket
12	Gasket, Rear
13	Eyelet, Roller
14	Roller
16	W10916292 Whirlpool Refrigerator Crisper Pan
17	Meat Pan (Includes 21)
18	Window, Crisper
20	Deflector
21	Cap, Crisper Pan (Right Side)
21	Cap, Crisper Pan (Left Side)
22	Window, Meat Pan
24	Shelf Assembly
25	Screw
26	Shelf & Roller Assembly (2)
27	W11223328 Whirlpool Refrigerator Shelf Stud
28	WP3-24004-109 Whirlpool Refrigerator Screw
29	Glide Assm-Pan (Left Side)
29	2301548 Whirlpool Refrigerator Glide
30	Support Assembly (Right Side)
30	Support Assembly (Left Side)
31	Glide Assm-Pan (Right Side)
31	Glide Assm-Pan (Left Side)
