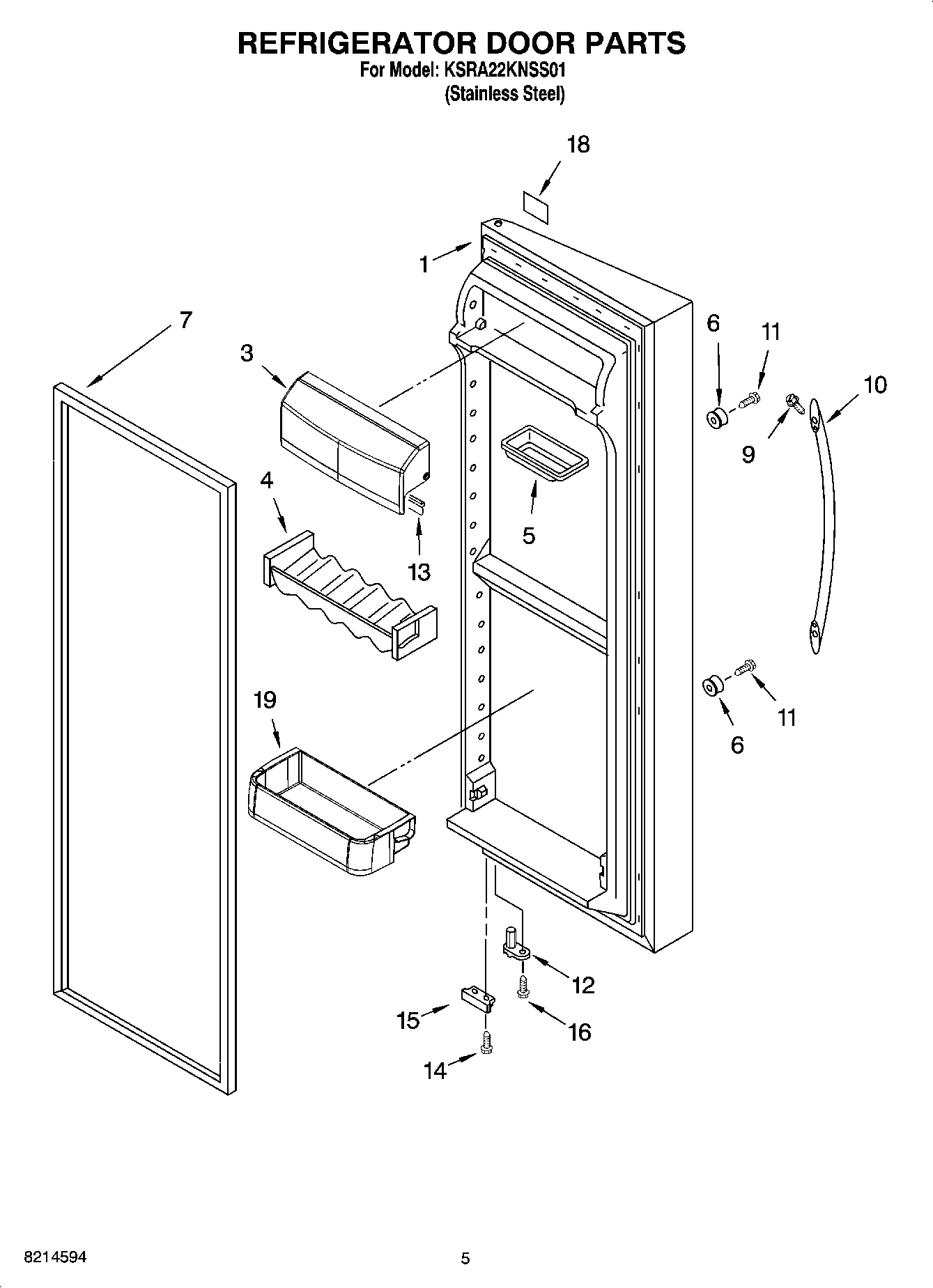

KSRA22KNSS01 04 – REFRIGERATOR DOOR PARTS

KSRA22KNSS01 04 – REFRIGERATOR DOOR PARTS

Written by

in

KSRA22KNSS01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (Stainless)
3Door, Compartment
4Beverage Holder
5Dish, Butter
6WPW10170540 Whirlpool Screw
72159081 Whirlpool Refrigerator Door Gasket
9Screw
10Handle, Door (Stainless Steel)
11WP488163 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15Bracket, Door Stop
16WP3400012 Whirlpool Refrigerator Screw
18Nameplate (Black)
19WP2223434K Whirlpool Refrigerator Door Shelf Bin
