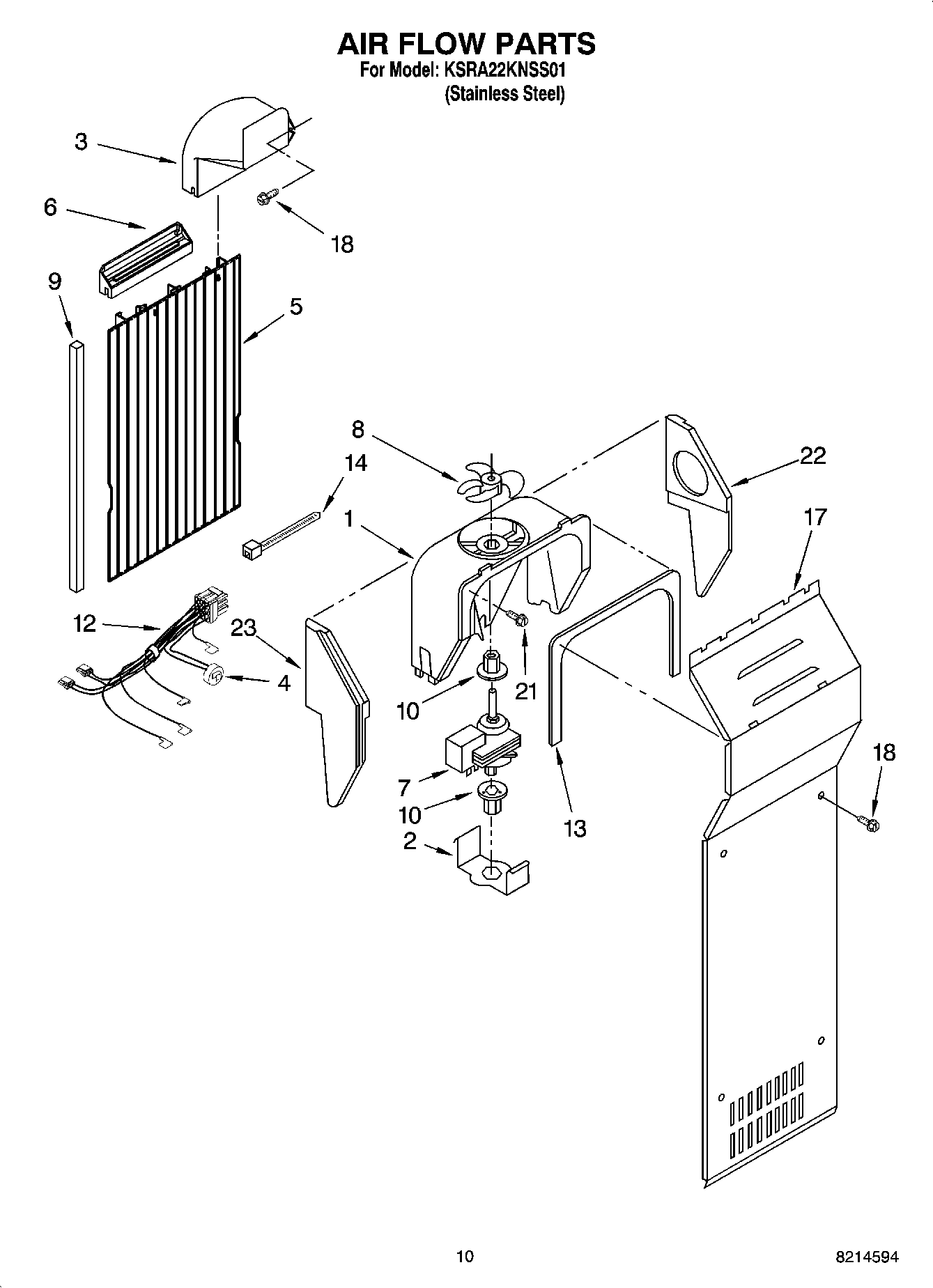

KSRA22KNSS01 07 – AIR FLOW PARTS

KSRA22KNSS01 07 – AIR FLOW PARTS

Written by

in

KSRA22KNSS01 07 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3Air Scoop
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5Air Duct Freezer
6Diffuser, Air Duct
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
94388500 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
12Harness, Fan Evaporator (Includes 6)
13WP2155789 Whirlpool Refrigerator Gasket
14WPW10339879 Whirlpool Wire Tie
174388357 Whirlpool Refrigerator Evaporator Cover
184389654 Whirlpool Screw
21WP489478 Whirlpool Refrigerator Screw
224388358 Whirlpool Refrigerator Support Bracket
