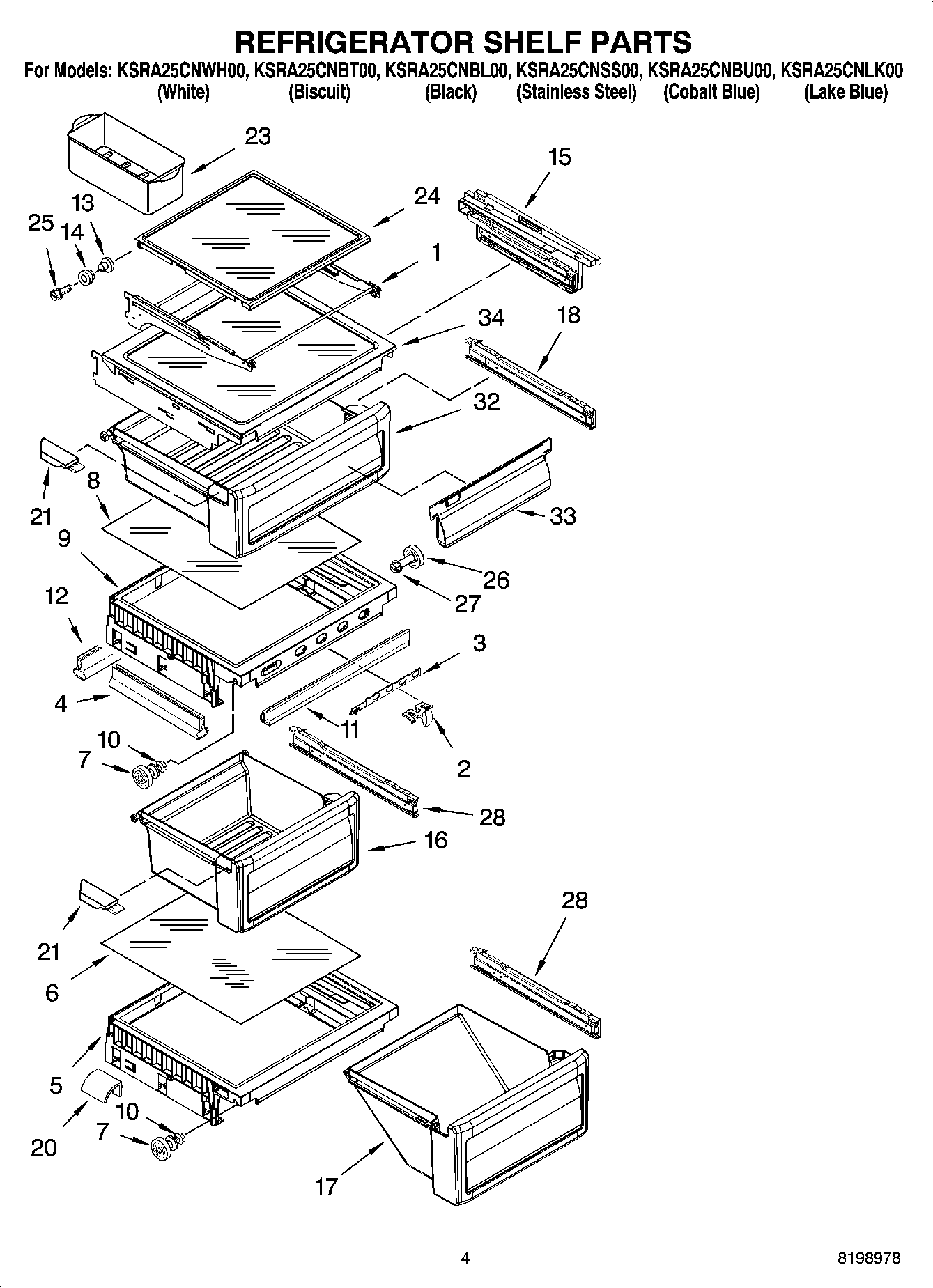

KSRA25CNBL00 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame Assembly
2	Knob, Humidity
3	2301026 Whirlpool Refrigerator Slide
4	2301117 Whirlpool Refrigerator Gasket
5	Cover, Meat Pan (Includes 6 & 20)
6	Glass, Meat Pan Cover
7	W11223328 Whirlpool Refrigerator Shelf Stud
8	Glass, Crisper Cover
9	Cover, Crisper (Includes 2, 3, 4, 6, 11 & 12)
10	WP3-24004-109 Whirlpool Refrigerator Screw
11	WP1125528 Whirlpool Refrigerator Gasket
12	Gasket, Rear
13	Eyelet, Roller
14	Roller
15	Support Assembly (Left Side)
15	Support Assembly (Right Side)
16	W10916292 Whirlpool Refrigerator Crisper Pan
17	Meat Pan (Includes 21)
18	Glide Assm-Pan (Left Side)
18	Glide Assm-Pan (Right Side)
20	Deflector
21	Cap, Crisper Pan (Right Side)
21	Cap, Crisper Pan (Left Side)
23	W10136387A Whirlpool Refrigerator Egg Container
24	Shelf & Roller Assembly (2)
25	Screw
26	WP2196483 Whirlpool Refrigerator Shelf Stud
27	WP3400806 Whirlpool Screw
28	Glide Assm-Pan (Left Side)
28	2301548 Whirlpool Refrigerator Glide
32	Snack Bin
33	Window, Snack Pan
34	Shelf Assembly
