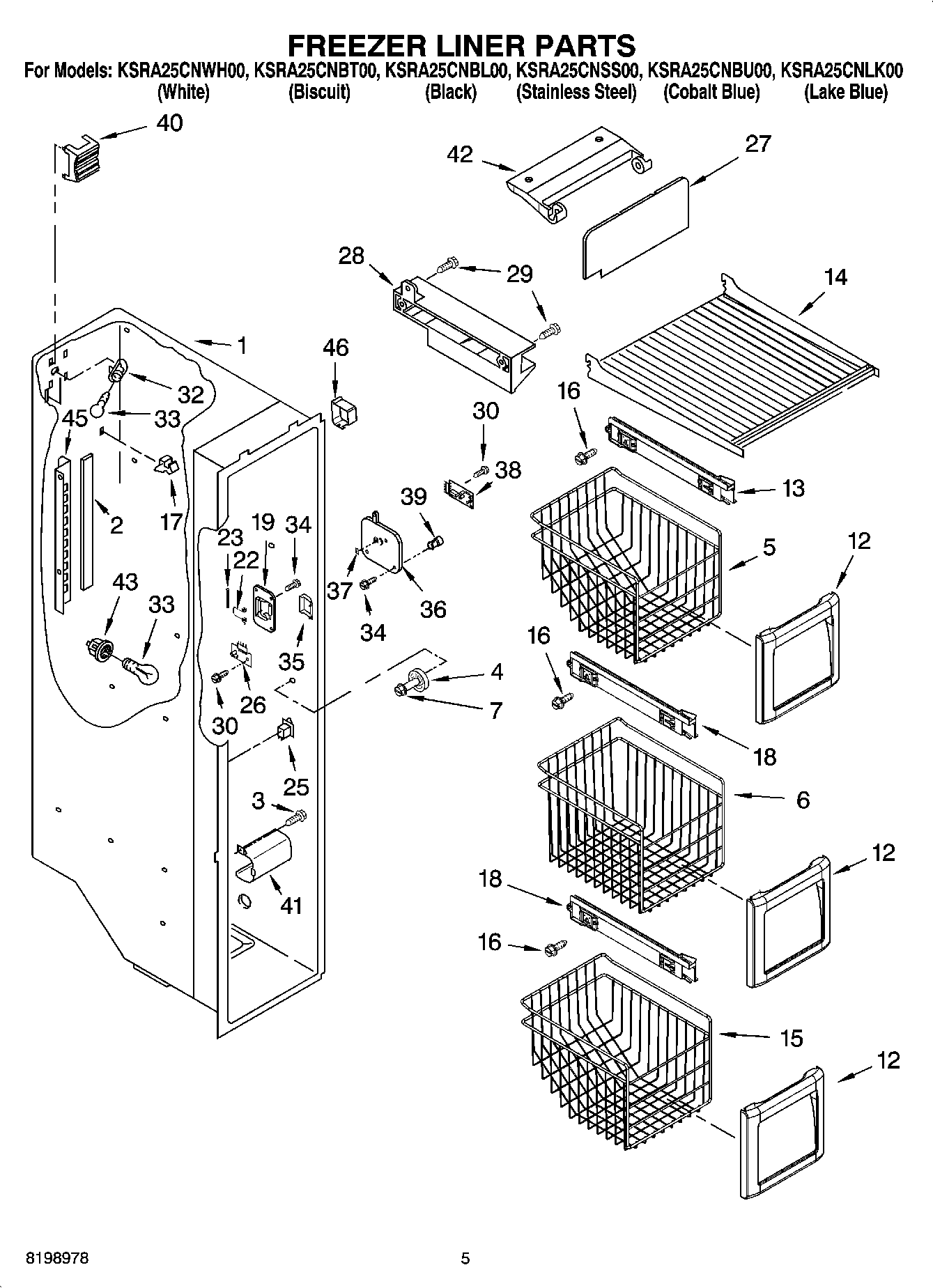

KSRA25CNBU00 04 – FREEZER LINER PARTSadmin2025-04-26T12:29:28+00:00KSRA25CNBU00 04 – FREEZER LINER PARTS
Products
| Position | Product |
|---|
| 1 | Liner (Not A Seviceable Part) |
| 2 | Gasket |
| 3 | W10142289 Whirlpool Air Conditioner Screw |
| 4 | WP2196483 Whirlpool Refrigerator Shelf Stud |
| 5 | Basket, Top (Includes 12) |
| 6 | Basket, Deep (Includes 12) |
| 7 | WP3400806 Whirlpool Screw |
| 12 | Front, Assembly Basket |
| 13 | Glide Assy, Basket Top (Right Side) |
| 13 | Glide Assy, Basket Top (Left Side) |
| 14 | Shelf |
| 15 | Basket, Sloped (Includes 12) |
| 16 | Screw |
| 17 | 2215823 Whirlpool Refrigerator Clip |
| 18 | Glide Assy, Basket (Left Side) |
| 18 | Glide Assy, Basket (Right Side) |
| 19 | WP2198587 Whirlpool Refrigerator Cover |
| 22 | WP2198635 Whirlpool Refrigerator Spring |
| 23 | WP2198634 Whirlpool Door Pin |
| 25 | W11457217 Whirlpool Refrigerator Rocker Switch Combination |
| 26 | W10757851-includeCORE Whirlpool Electronic Control+Core |
| 27 | WP2255720 Whirlpool Refrigerator Ice Maker Door |
| 28 | Slide, Ice Maker |
| 29 | WP489478 Whirlpool Refrigerator Screw |
| 30 | 2006254 Whirlpool Refrigerator Screw |
| 32 | 4387478 Whirlpool Refrigerator Light Socket |
| 33 | RANGE ONLY 40W 120V APPL BULB |
| 34 | WPW10142283 Whirlpool Refrigerator Screw |
| 35 | WP2198633 Whirlpool Refrigerator Flipper |
| 36 | Cover, Receiver |
| 37 | Slide, Ice Maker Shut Off |
| 39 | WP2198643 Whirlpool Refrigerator Lens |
| 40 | Light Shield |
| 41 | Light Lens |
| 42 | WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket |
| 43 | SOCKET |
| 45 | Ladder (Right Side) |
| 45 | Ladder (Left Side) |
| 46 | Shield, Wiring |
