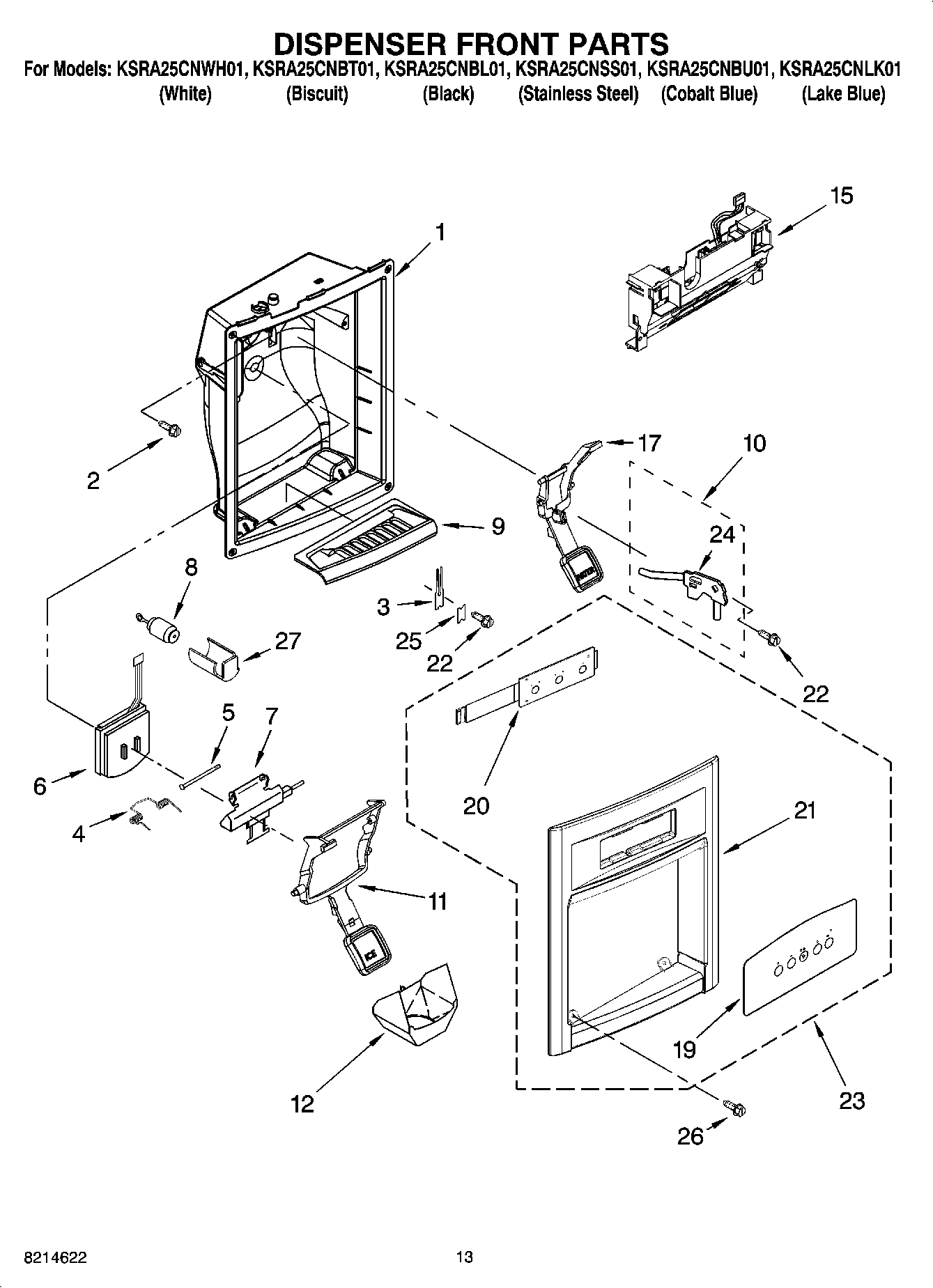

KSRA25CNLK01 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing, Dispenser (Not Serviced)
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	Grille, Overflow (White)
9	WP2207007B Whirlpool Refrigerator Grille
9	Grille, Overflow (Biscuit)
9	Grille, Overflow (European Silver)
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (Biscuit)
11	Lever, Ice Dispenser (White)
11	Lever, Ice Dispenser (Black)
12	WP2180224 Whirlpool Dispenser Funnel Guide
15	Bracket, Control
17	Lever, Water Dispenser (White)
17	Lever, Water Dispenser (Black)
17	Lever, Water Dispenser (Biscuit)
19	Overlay, Front Cover (Not Available, Order 23)
20	LED Display with Auto Night Light (Not Available Order 23)
21	Front Cover, Housing (Not Available Order 23)
22	WP3400906 Whirlpool Refrigerator Screw
23	Front Cover Assembly (Includes Items 19, 20 & 21) (Black)
23	Front Cover Assembly (Includes Items 19, 20 & 21) (White)
23	Front Cover Assembly (Includes Items 19, 20 & 21) (European Silver)
23	Front Cover Assembly (Includes Items 19, 20 & 21) (Biscuit)
24	WP2304673 Whirlpool Refrigerator Bracket
25	WP2195051 Whirlpool Refrigerator Clip
26	WP3400065 Whirlpool Refrigerator Screw
27	Sleeve, Delay Mechanism
