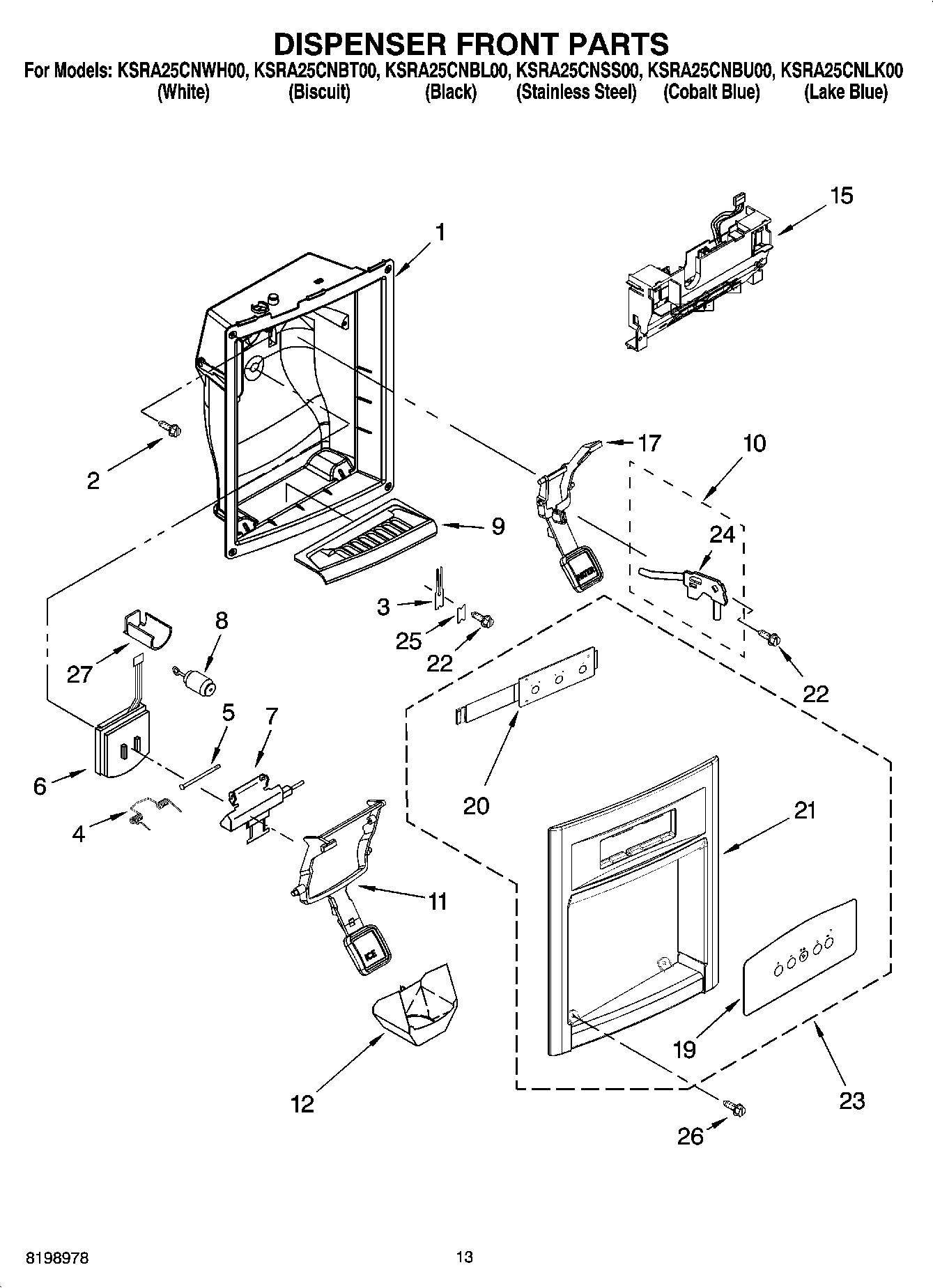

KSRA25CNWH00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing, Dispenser (Not Serviced)
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9Grille, Overflow (White)
9Grille, Overflow (Biscuit)
9WP2207007B Whirlpool Refrigerator Grille
9Grille, Overflow (Cobalt Blue)
108201537 Whirlpool Water Tubing Assembly
11Lever, Ice Dispenser (Biscuit)
11Lever, Ice Dispenser (Black)
11Lever, Ice Dispenser (White)
11Lever, Ice Dispenser (Graphite)
12WP2180224 Whirlpool Dispenser Funnel Guide
15Bracket, Control
17Lever, Water Dispenser (Biscuit)
17Lever, Water Dispenser (White)
17W10856124 Whirlpool Refrigerator Dispenser Arm
19Overlay, Front Cover (Not Available, Order 23)
20LED Display with Auto Night Light (Not Available Order 23)
21Front Cover, Housing (Not Available Order 23)
22WP3400906 Whirlpool Refrigerator Screw
23Front Cover Assembly (Includes Items 19, 20 & 21) (Black)
23Front Cover Assembly (Includes Items 19, 20 & 21) (European Silver)
23Front Cover Assembly (Includes Items 19, 20 & 21) (Biscuit)
23Front Cover Assembly (Includes Items 19, 20 & 21) (White)
24WP2304673 Whirlpool Refrigerator Bracket
25WP2195051 Whirlpool Refrigerator Clip
26WP3400065 Whirlpool Refrigerator Screw
27Sleeve, Delay Mechanism
