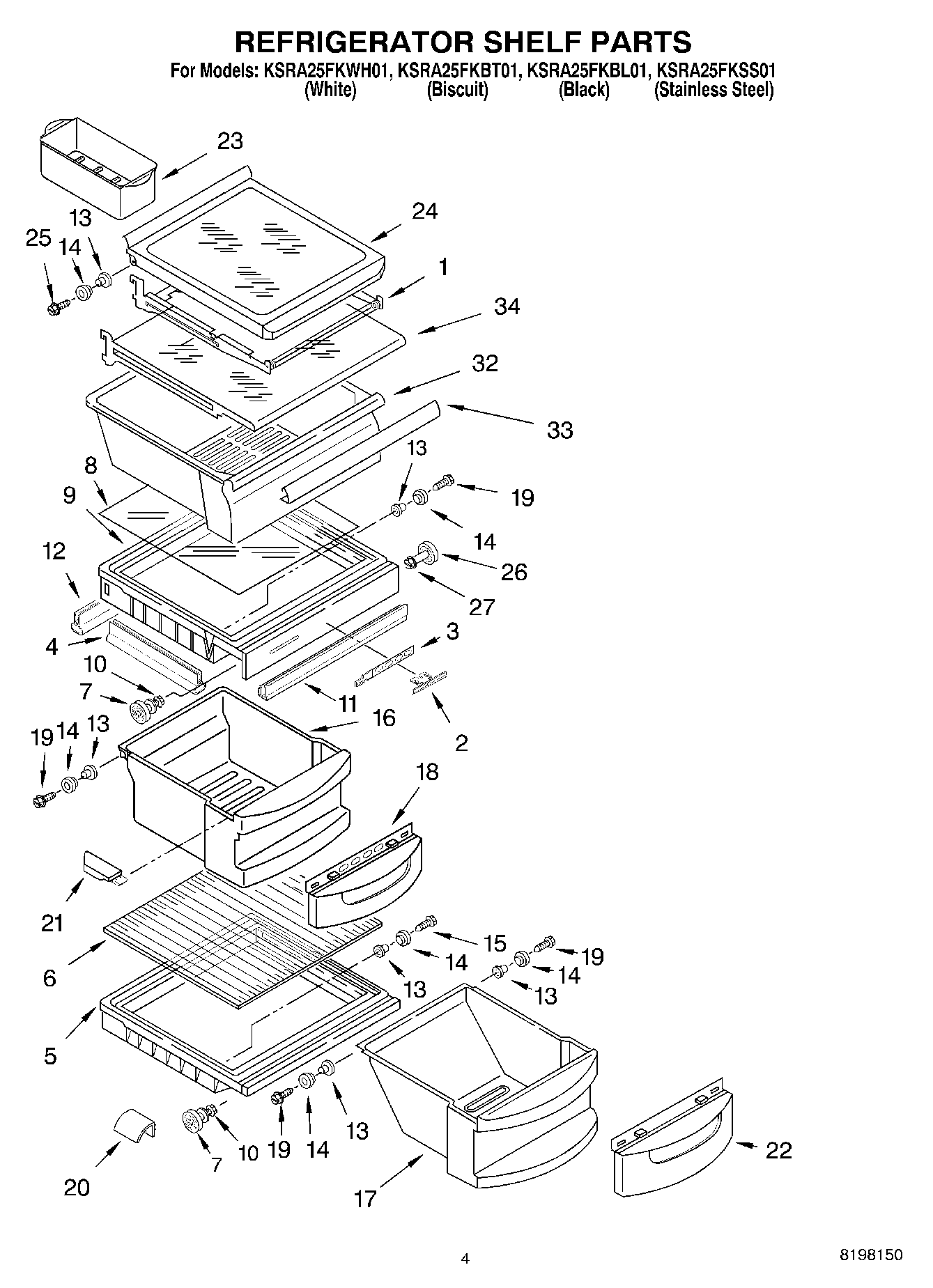

KSRA25FKBT01 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Shelf Assembly, Cantilever
2	Button, Humidity Control
3	2174252 Whirlpool Refrigerator Slide
4	Gasket, Side (2)
5	WP2161491 Whirlpool Crisper Drawer Cover
6	Glass, Cover
7	W11223328 Whirlpool Refrigerator Shelf Stud
8	Glass, Cover
9	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14, & 19)
10	WP3-24004-109 Whirlpool Refrigerator Screw
11	WP1125528 Whirlpool Refrigerator Gasket
12	Gasket, (Rear)
13	Eyelet, Roller
14	Roller
15	WPW10272364 Whirlpool Refrigerator Screw
16	WP2179227 Whirlpool Refrigerator Crisper Pan
17	Meat Pan (Includes 13, 14, 19, & 22)
18	Window, Crisper
19	WP489261 Whirlpool Refrigerator Screw
20	2176095 Whirlpool Refrigerator Deflector
21	Cap, Crisper (Right Side)
21	Cap, Crisper (Left Side)
22	Window, Meat Pan
23	W10136387A Whirlpool Refrigerator Egg Container
24	Shelf & Roller Assembly
25	Screw
26	WP2196483 Whirlpool Refrigerator Shelf Stud
27	WP3400806 Whirlpool Screw
32	W11497323 Whirlpool Snack Pan
33	WP2179243 Whirlpool Refrigerator Pan Trim
34	Shelf Assembly
