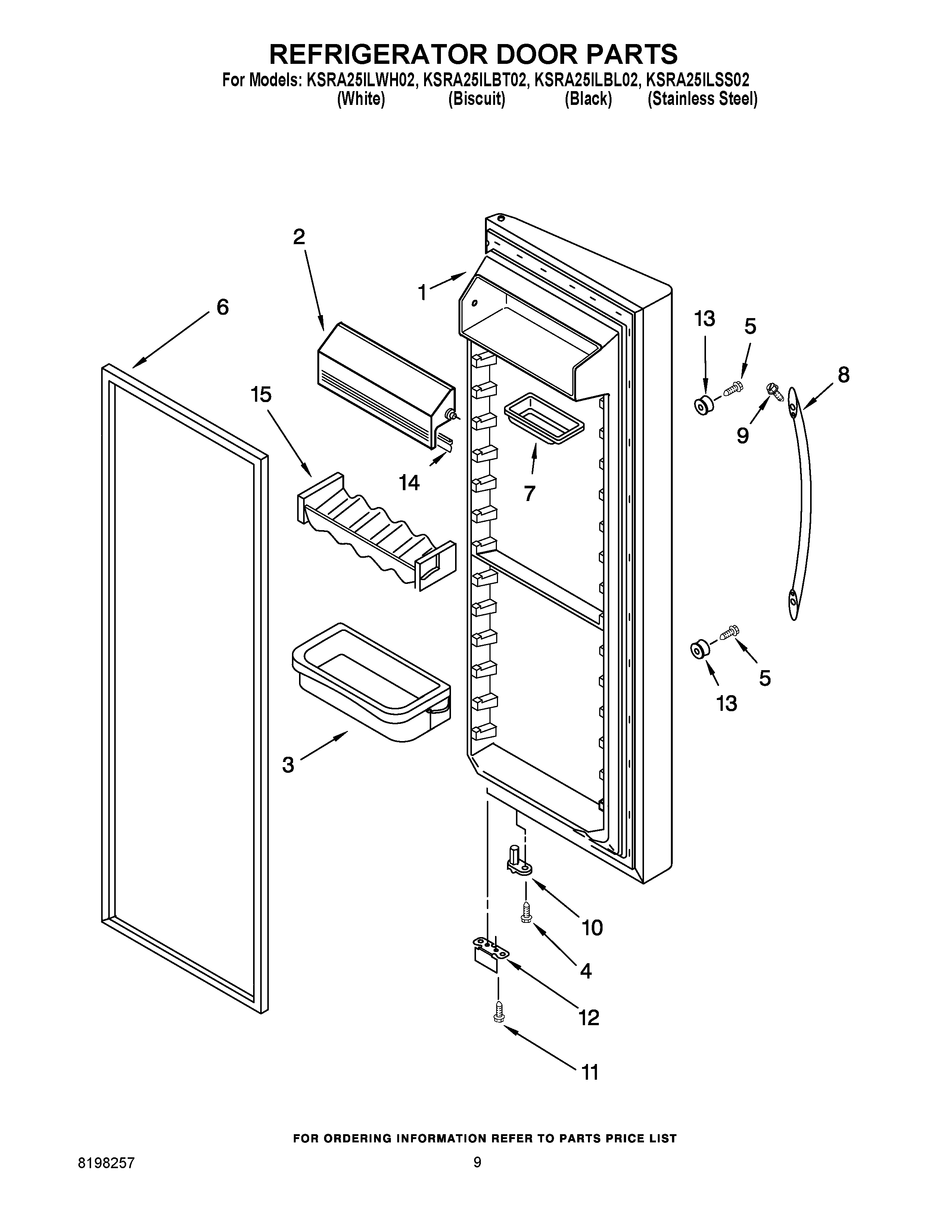

KSRA25ILBL02 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item No.6) (White)
1B	Refrigerator Door (Includes Item No.6) (Black)
1C	Refrigerator Door (Includes Item No.6) (Stainless)
1A	Refrigerator Door (Includes Item No.6) (Biscuit)
2	WP2313637 Whirlpool Cutting Grid Assembly
3	Shelf Bin (3)
4	WP3400012 Whirlpool Refrigerator Screw
5	WP488163 Whirlpool Refrigerator Screw
6	2159075 Whirlpool Door Gasket Seal
6A	2159083 Whirlpool Gasket Door
7	Butter Tray
8	Handle (White)
8C	Handle (Stainless Steel)
8B	Handle (Black)
8A	Handle (Biscuit)
9	Setscrew, 10-32
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12A	Bracket, Door Stop
12	Bracket, Door Stop
13	Stud, Handle
14	Gasket, Door Compartment
15	Beverage Holder
