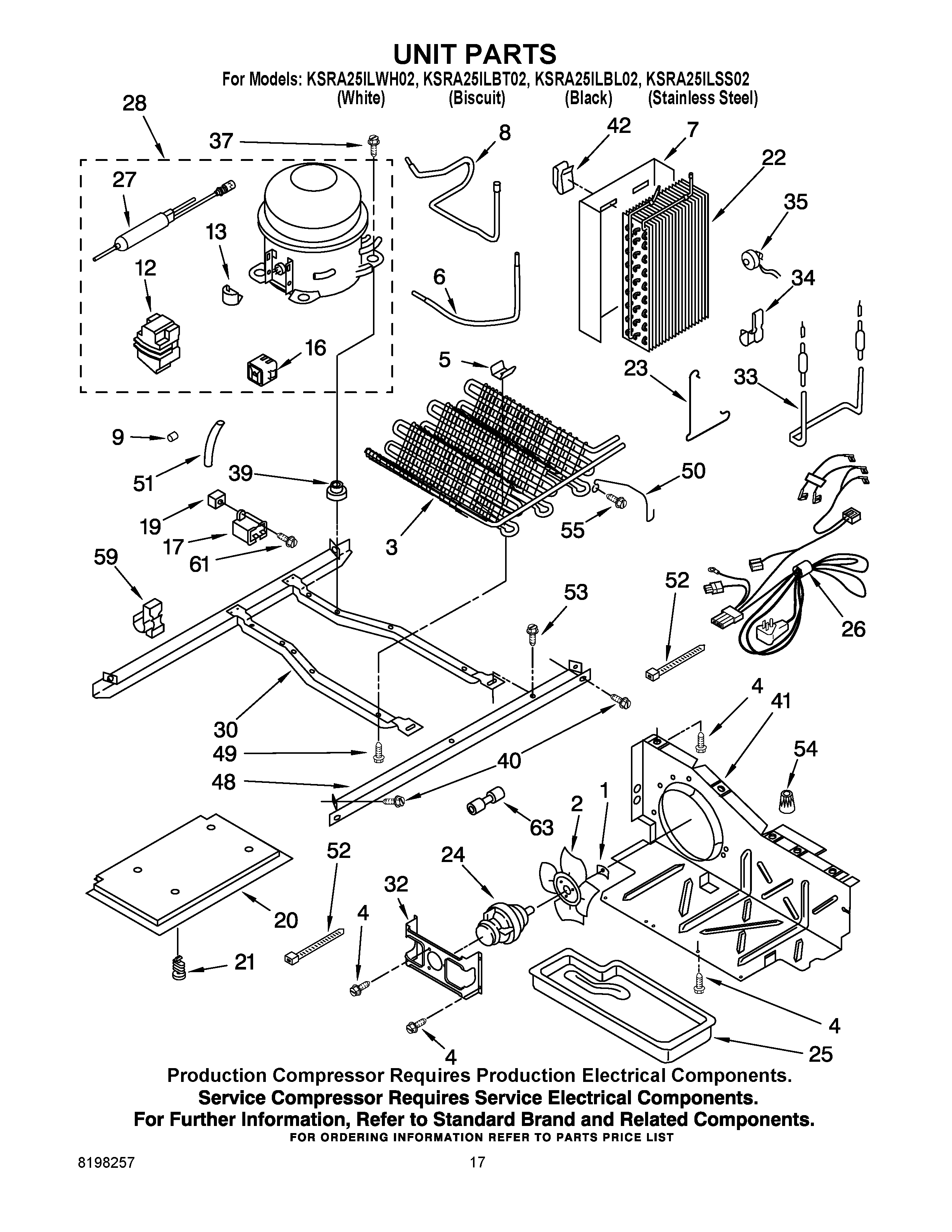

KSRA25ILBL02 12 – UNIT PARTS

KSRA25ILBL02 12 – UNIT PARTS

Written by

in

KSRA25ILBL02 12 – UNIT PARTS

Products

PositionProduct
NIWP978025 Whirlpool Refrigerator Valve
NI876764 Whirlpool Refrigerator Primary Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978030 Whirlpool Refrigerator Valve
NIVALVE, ACCESS (1/2“)
NIVALVE, ACCESS (5/8“)
NICABINET (NOT A SERVICEABLE PART)
NI978026 Whirlpool Refrigerator Primary Valve
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6Tube, Condenser to Heat Loop
7Heat Shield
8WP2205765 Whirlpool Refrigerator Tube
9WP2158826 Whirlpool Refrigerator Dampener
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP4387835 Whirlpool Refrigerator Overload
168201786 Whirlpool Relay and Overload Start Kit
17WPW10662129 Whirlpool Refrigerator Run Capacitor
17AWP4387764 Whirlpool Run Capacitor
19Screw Grommet
20Unit Cover, Bottom
21489396 Whirlpool Refrigerator Clip
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24W10822259 Whirlpool Refrigerator Condenser Fan Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Unit, Harness
27W10843121 Whirlpool Refrigerator Tube
28W10309994 Whirlpool Refrigerator Compressor
302304904 Whirlpool Frame Assembly
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323198 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37SCREW
39AWP4387558 Whirlpool Refrigerator Compressor Grommet
39W11661108 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
482305374 Whirlpool Refrigerator Unit Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
51SLEEVE
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
54Wire Connector
55WP489478 Whirlpool Refrigerator Screw
59Clip, Wire & Tube
61W11693756 Whirlpool Screw Assembly
63WP4373559 Whirlpool Fitting
