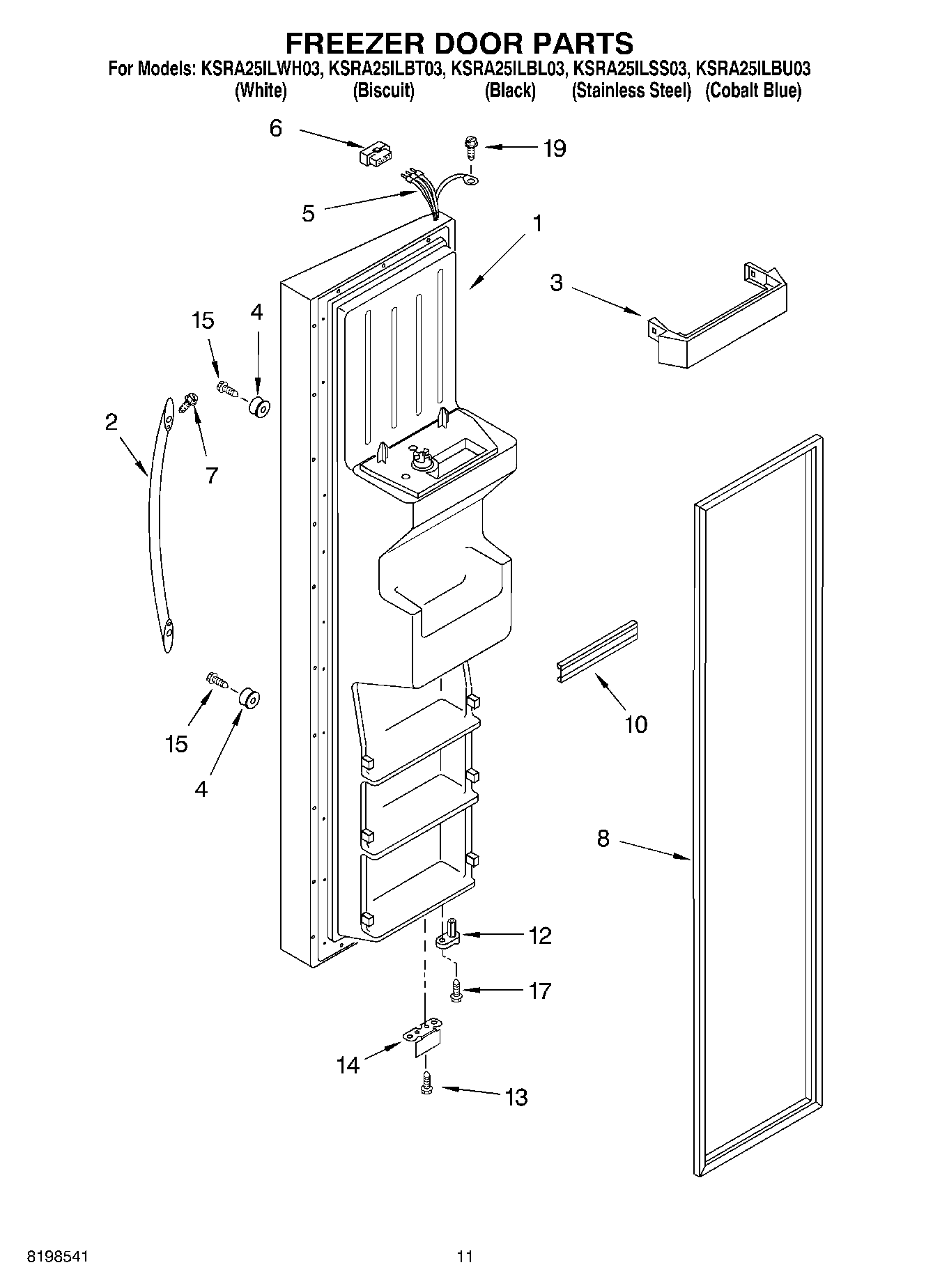

KSRA25ILWH03 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Cobalt Blue)
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (Black)
2	Handle (Black)
2	Handle (Biscuit)
2	Handle (White)
2	Handle (Stainless Steel)
2	Handle (European Silver)
3	Shelf Bin (4)
4	Stud, Handle
5	Dispenser Harness
6	WP2154473 Whirlpool Refrigerator Connector
7	Setscrew, 10-32
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
10	WPW10307490 Whirlpool Door Trim Assembly
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop
14	Bracket, Door Stop
15	WP488163 Whirlpool Refrigerator Screw
17	WP3400012 Whirlpool Refrigerator Screw
19	WP489128 Whirlpool Refrigerator Screw
