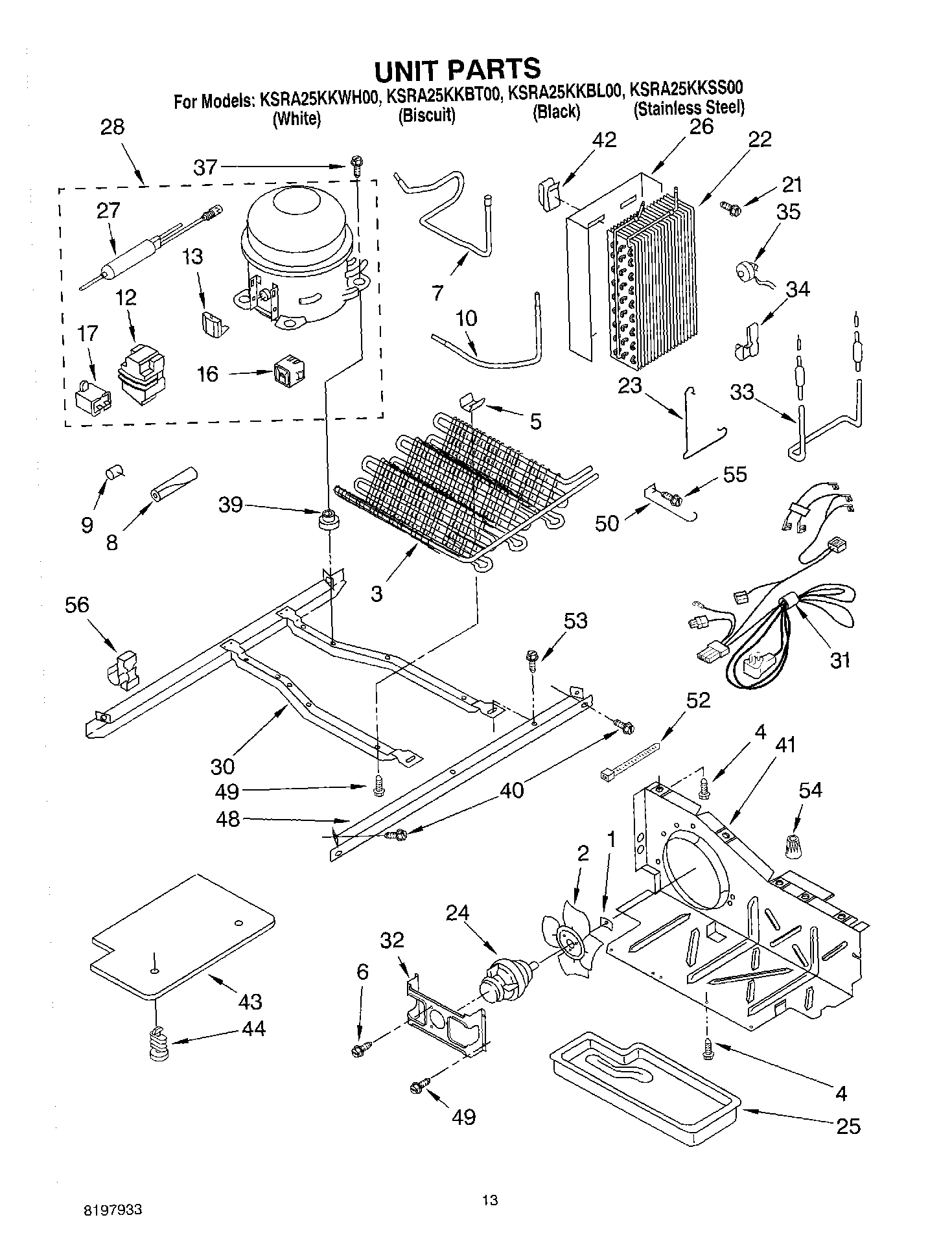

KSRA25KKBL00 09 – UNIT, OPTIONAL

KSRA25KKBL00 09 – UNIT, OPTIONAL

Written by

in

KSRA25KKBL00 09 – UNIT, OPTIONAL

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	681390 Whirlpool Refrigerator Screw
7	WP2205765 Whirlpool Refrigerator Tube
8	SLEEVE
9	WP2158826 Whirlpool Refrigerator Dampener
10	Tube, Condenser to Heat Loop
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP4387835 Whirlpool Refrigerator Overload
16	8201786 Whirlpool Relay and Overload Start Kit
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	WP4387764 Whirlpool Run Capacitor
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	W10822259 Whirlpool Refrigerator Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	W10309994 Whirlpool Refrigerator Compressor
30	2304904 Whirlpool Frame Assembly
31	4389202 Whirlpool Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	SCREW
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	W11661108 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	Unit Cover, Bottom
44	489396 Whirlpool Refrigerator Clip
48	2305374 Whirlpool Refrigerator Unit Rail
49	W11544659 Whirlpool Refrigerator Screw
50	Guard, Fan
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
56	350956 Whirlpool Spray Assembly
56	Clip, Wire & Tube
56	606755 Whirlpool Refrigerator Bag
56	511873 Whirlpool Refrigerator Paint
56	4392901 Whirlpool Biscuit Spray Paint
56	4392899 Whirlpool Biscuit Touch-Up Paint
56	350942 Whirlpool Spray Paint
56	212643 Whirlpool Refrigerator Permagum Sealer
56	350930 Whirlpool White Spray Paint
56	VALVE, ACCESS (5/8“)
56	Cleaner, Stainless Steel
56	Almond (Uncut)
56	WP72107 Whirlpool Touchup
56	799344 Whirlpool Refrigerator Paint
56	72017 Whirlpool Appliance Touch-Up Paint White
56	833938 Whirlpool Refrigerator Terminal
56	876370 Whirlpool Refrigerator Insulation
56	WP503695 Whirlpool Refrigerator Sealer
56	285006 Whirlpool Spray
56	72032 Whirlpool Touch Up Paint Black
56	WPL 876029
56	WPL 799833
56	Enamel, Black (1 Qt. Uncut)
56	CEMENT, ALUMILASTIC (1 1/4 OZ.)
56	TAPE, VINYL (3/4 X 108“)
56	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
56	VALVE, ACCESS (1/2“)
56	WP978025 Whirlpool Refrigerator Valve
56	Torx Key
56	978030 Whirlpool Refrigerator Valve
56	WP542638 Whirlpool Refrigerator Grease
56	978027 Whirlpool Refrigerator Primary Valve
56	WP505587 Whirlpool Refrigerator Sealer
56	978026 Whirlpool Refrigerator Primary Valve
56	876764 Whirlpool Refrigerator Primary Valve
56	W11729596 Whirlpool Ice Maker Field Install Kit
