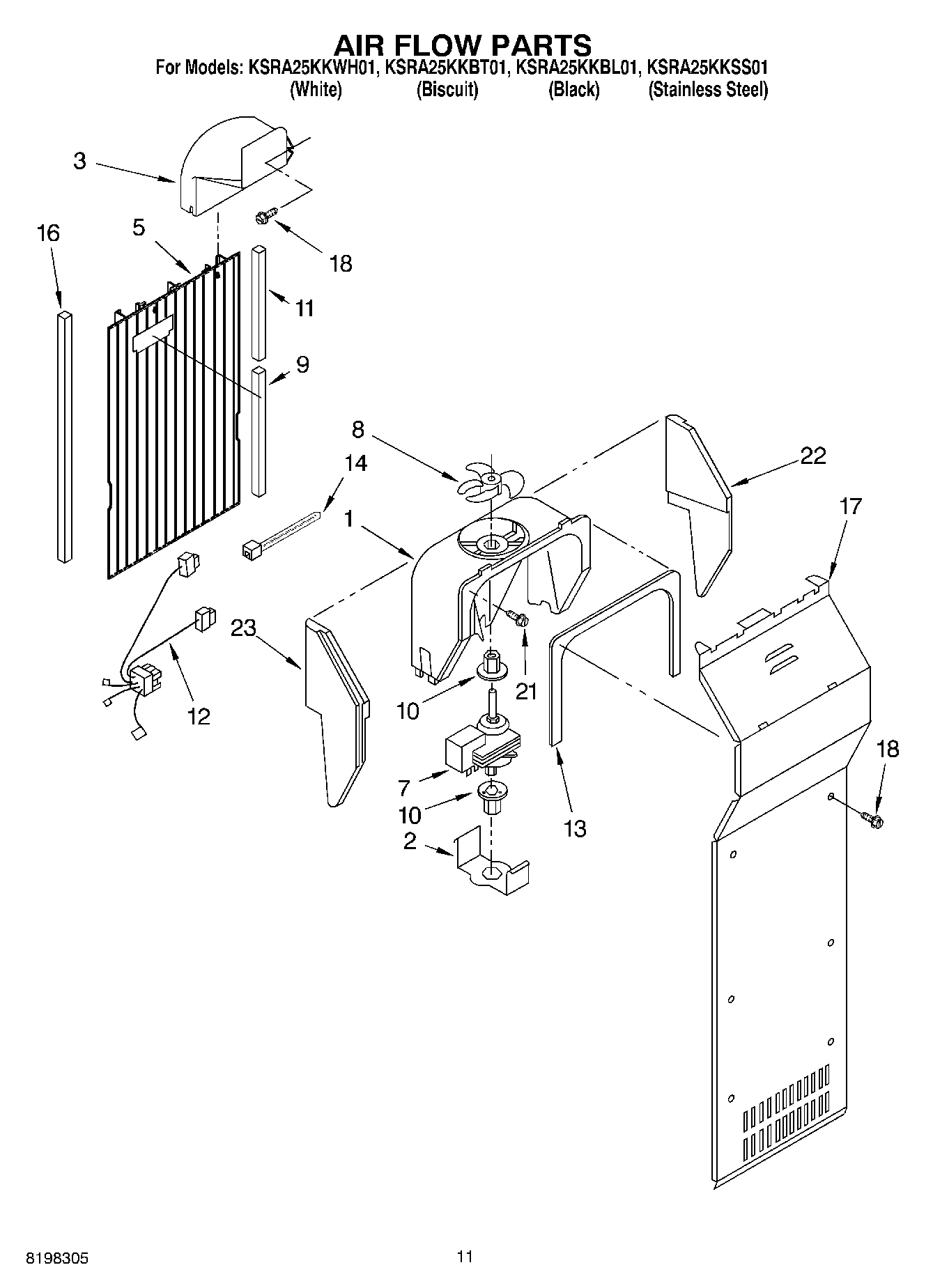

KSRA25KKBL01 07 – AIR FLOW PARTS

KSRA25KKBL01 07 – AIR FLOW PARTS

Written by

in

KSRA25KKBL01 07 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3Air Scoop
5Air Duct Freezer
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
9WP2209606 Whirlpool Gasket Assembly
10WP2176759 Whirlpool Refrigerator Grommet
11WP2209607 Whirlpool Gasket Assembly
12Harness, Fan Evaporator (Includes 6)
13WP2155789 Whirlpool Refrigerator Gasket
14WPW10339879 Whirlpool Wire Tie
164388500 Whirlpool Refrigerator Gasket
17Cover, Evaporator
18SCREW
21WP489478 Whirlpool Refrigerator Screw
234388358 Whirlpool Refrigerator Support Bracket
