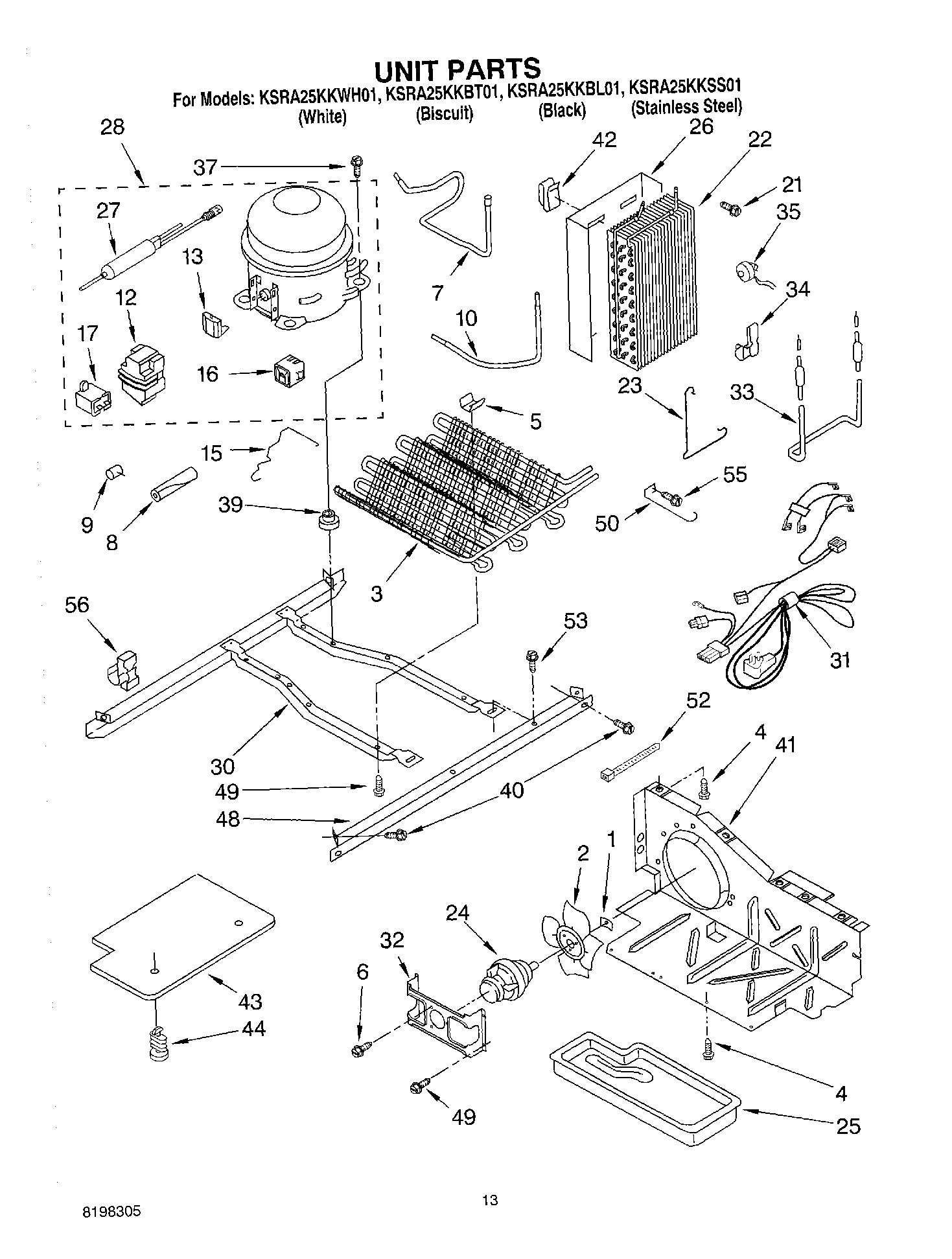

KSRA25KKBL01 09 – UNIT PARTS, PARTS NOT ILLUSTRATED

KSRA25KKBL01 09 – UNIT PARTS, PARTS NOT ILLUSTRATED

Written by

in

KSRA25KKBL01 09 – UNIT PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
WPL ARI93790A5
WPL 799833
Enamel, Black (1 Qt. Uncut)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
TAPE, VINYL (3/4 X 108“)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI93789A2
WPL ARI93788A5
WPL ARI93787A3
WPL ARI93786A7
Cleaner, Stainless Steel
WPL ARI93791A5
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
Almond (Uncut)
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
WP72107 Whirlpool Touchup
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
799344 Whirlpool Refrigerator Paint
511873 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
606755 Whirlpool Refrigerator Bag
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
833938 Whirlpool Refrigerator Terminal
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6681390 Whirlpool Refrigerator Screw
7WP2205765 Whirlpool Refrigerator Tube
8SLEEVE
9WP2158826 Whirlpool Refrigerator Dampener
10Tube, Condenser to Heat Loop
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP4387835 Whirlpool Refrigerator Overload
168201786 Whirlpool Relay and Overload Start Kit
17WP4387764 Whirlpool Run Capacitor
17WPW10662129 Whirlpool Refrigerator Run Capacitor
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24W10822259 Whirlpool Refrigerator Condenser Fan Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Heat Shield
27W10843121 Whirlpool Refrigerator Tube
28W10309994 Whirlpool Refrigerator Compressor
302304904 Whirlpool Frame Assembly
314389202 Whirlpool Wire Harness
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323198 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37SCREW
39W11661108 Whirlpool Grommet
39WP4387558 Whirlpool Refrigerator Compressor Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
43Unit Cover, Bottom
44489396 Whirlpool Refrigerator Clip
482305374 Whirlpool Refrigerator Unit Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55WP489478 Whirlpool Refrigerator Screw
56876764 Whirlpool Refrigerator Primary Valve
56978026 Whirlpool Refrigerator Primary Valve
56978027 Whirlpool Refrigerator Primary Valve
56978030 Whirlpool Refrigerator Valve
56WP978025 Whirlpool Refrigerator Valve
56REFRIGERANT CHARGE 5.0 oz. (R-134A)
56and Optional Parts Not Included
56VALVE, ACCESS (5/8“)
56VALVE, ACCESS (1/2“)
56Clip, Wire & Tube
56FOLLOWING PARTS NOT ILLUSTRATED
