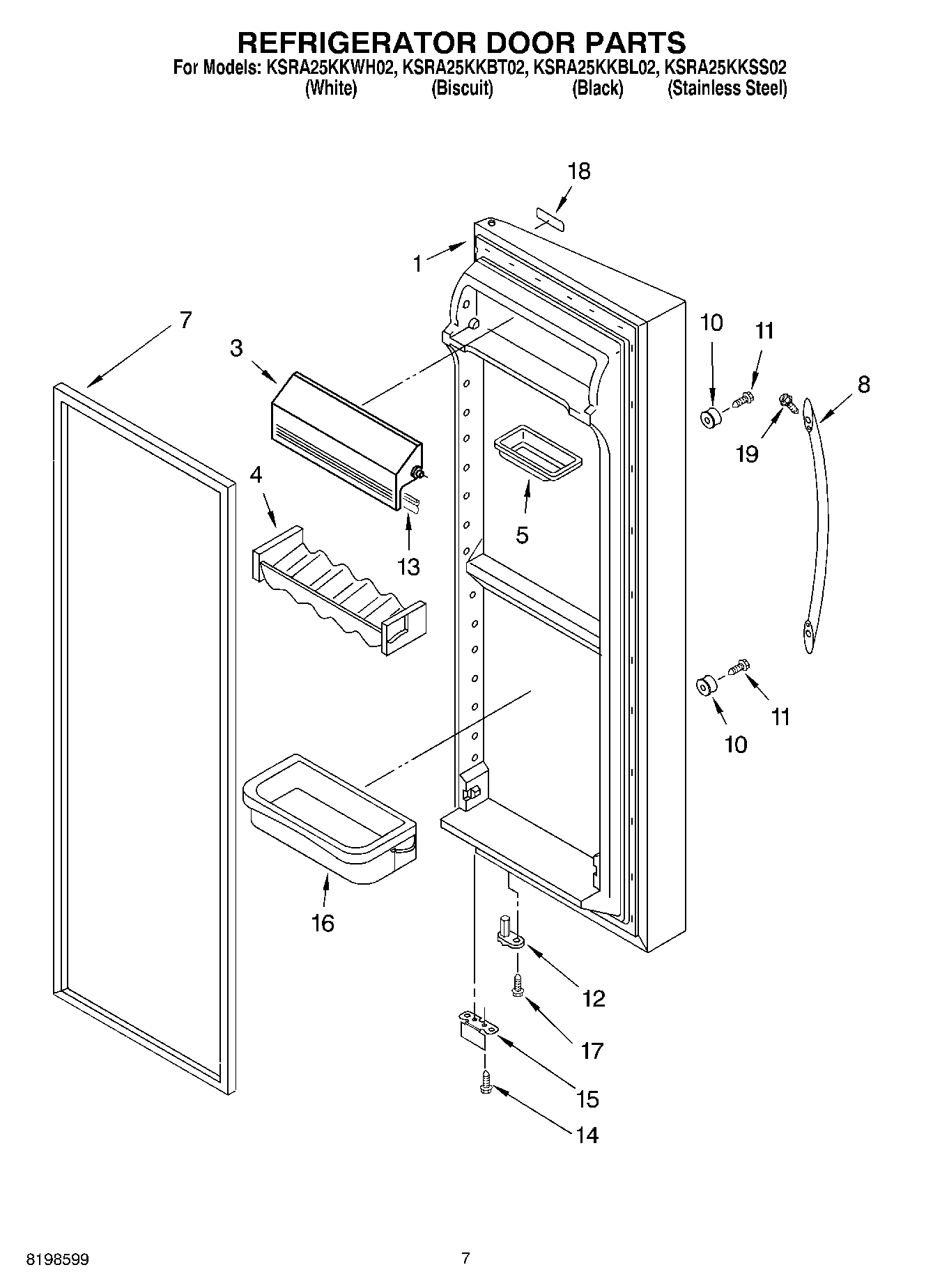

KSRA25KKBT02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item No.6) (White)
1Refrigerator Door (Includes Item No.6) (Biscuit)
1Refrigerator Door (Includes Item No.6) (Stainless)
1Refrigerator Door (Includes Item No.6) (Black)
3Door, Compartment
4Beverage Holder
5Butter Tray
72159083 Whirlpool Gasket Door
72159075 Whirlpool Door Gasket Seal
8Handle (Black)
8Handle (Biscuit)
8Handle (White)
8Handle (Stainless Steel)
10Stud, Handle
11WP488163 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15Bracket, Door Stop
15Bracket, Door Stop
16Shelf Bin (3)
17WP3400012 Whirlpool Refrigerator Screw
18Nameplate (Black)
18Nameplate (Biscuit)
18Nameplate (White)
19Setscrew, 10-32
