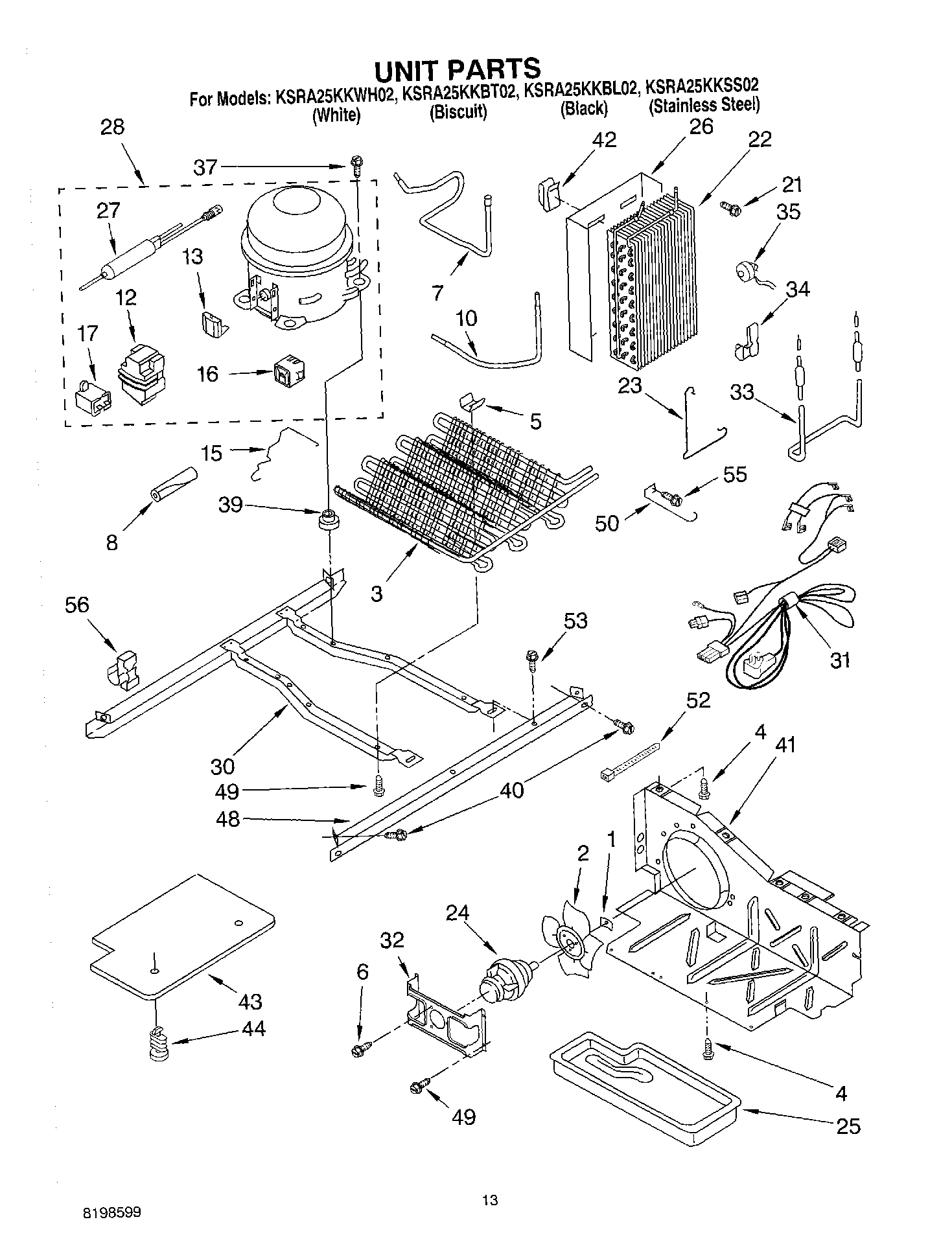

KSRA25KKSS02 09 – UNIT PARTS, PARTS NOT ILLUSTRATED

KSRA25KKSS02 09 – UNIT PARTS, PARTS NOT ILLUSTRATED

Written by

in

KSRA25KKSS02 09 – UNIT PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
72032 Whirlpool Touch Up Paint Black
WPL ARI93878A8
WP503695 Whirlpool Refrigerator Sealer
WPL ARI93877A4
WP505587 Whirlpool Refrigerator Sealer
Cleaner, Stainless Steel
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI93882A5
285006 Whirlpool Spray
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
511873 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI93881A1
WPL ARI93880A7
876370 Whirlpool Refrigerator Insulation
350942 Whirlpool Spray Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
WPL ARI93879A7
212643 Whirlpool Refrigerator Permagum Sealer
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6681390 Whirlpool Refrigerator Screw
7WP2205765 Whirlpool Refrigerator Tube
8SLEEVE
10Tube, Condenser to Heat Loop
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP4387835 Whirlpool Refrigerator Overload
152223314 Whirlpool Refrigerator Clip
168201786 Whirlpool Relay and Overload Start Kit
17WP4387764 Whirlpool Run Capacitor
17WPW10662129 Whirlpool Refrigerator Run Capacitor
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24W10822259 Whirlpool Refrigerator Condenser Fan Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Heat Shield And Drain Pan
27W10843121 Whirlpool Refrigerator Tube
28W10309994 Whirlpool Refrigerator Compressor
302304904 Whirlpool Frame Assembly
314389202 Whirlpool Wire Harness
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323198 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39876811 Whirlpool Grommet
39WP4387558 Whirlpool Refrigerator Compressor Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
43Unit Cover, Bottom
44489396 Whirlpool Refrigerator Clip
482305374 Whirlpool Refrigerator Unit Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55WP489478 Whirlpool Refrigerator Screw
56REFRIGERANT CHARGE 5.0 oz. (R-134A)
56VALVE, ACCESS (5/8“)
56876764 Whirlpool Refrigerator Primary Valve
56and Optional Parts Not Included
56FOLLOWING PARTS NOT ILLUSTRATED
56Clip, Wire & Tube
56978026 Whirlpool Refrigerator Primary Valve
56978027 Whirlpool Refrigerator Primary Valve
56WP978025 Whirlpool Refrigerator Valve
56VALVE, ACCESS (1/2“)
56978030 Whirlpool Refrigerator Valve
