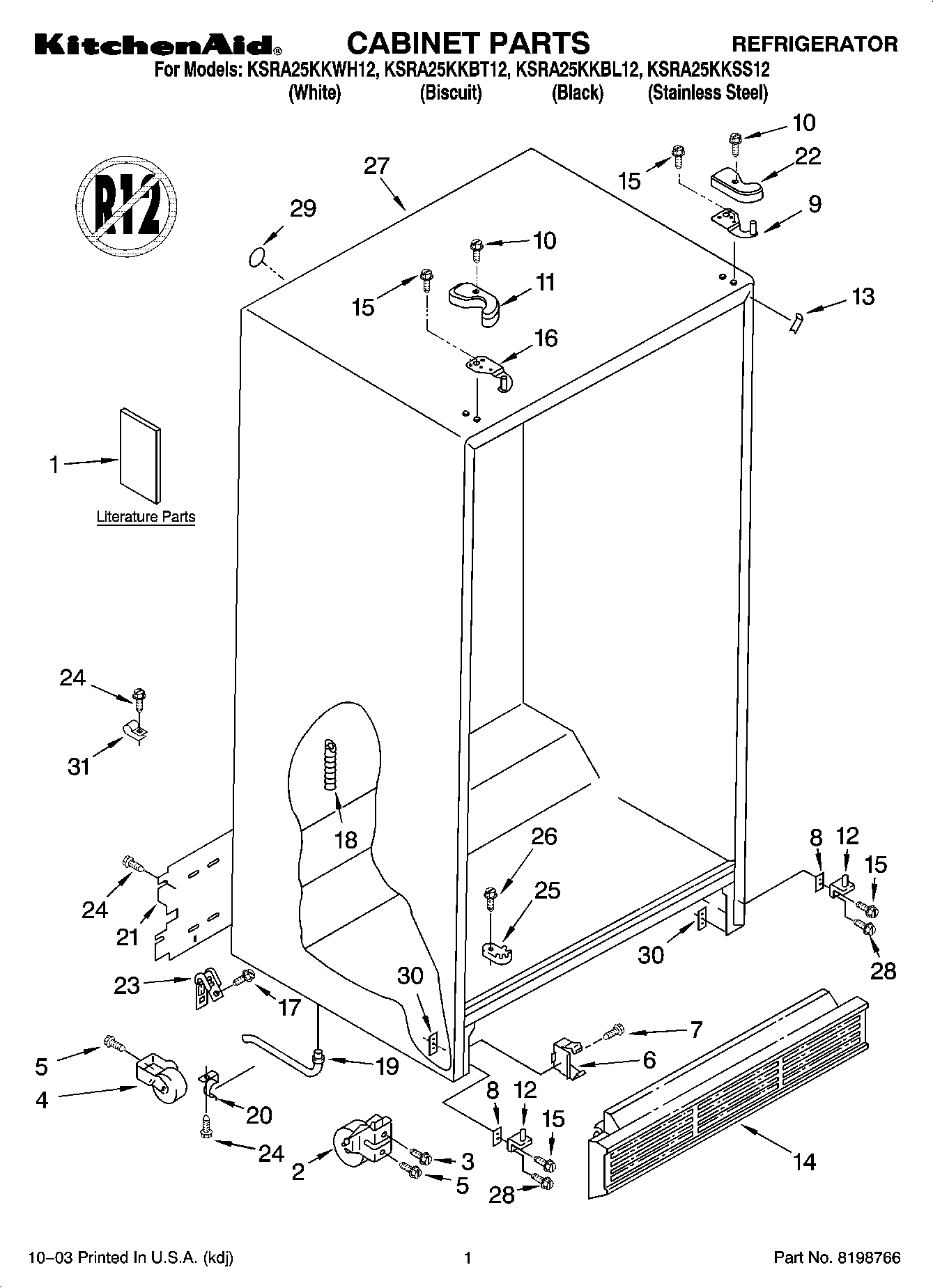

KSRA25KKSS12 01 – CABINET PARTS

Products

Position	Product
1	LITERATURE PARTS (Energy Label)
1	LITERATURE PARTS (Service & Wiring Sheet)
1	Literature Parts (Use & Care Guide)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP8281227 Whirlpool Screw
11	2203407T Whirlpool Refrigerator Cover
11	WP2203407B Whirlpool Refrigerator Cover
11	WP2203407W Whirlpool Refrigerator Cover
12	8201707 Whirlpool Door Hinge
13	Filler, Wrapper (Biscuit)
13	Filler, Wrapper (White)
13	Filler, Wrapper (Black)
14	WPW10283946 Whirlpool Refrigerator Grille
14	W10283947 Whirlpool Grille Assembly
15	WP489497 Whirlpool Screw
16	WP2203770 Whirlpool Refrigerator Door Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	Cover, Unit
22	Hinge Cover (Biscuit)
22	WP2203408W Whirlpool Refrigerator Cover
22	WP2203408B Whirlpool Refrigerator Cover
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	Cabinet (Not A Serviceable Part)
28	W10856122 Whirlpool Refrigerator Screw
29	2223173 Whirlpool Refrigerator Tube Plug
30	WP2304249 Whirlpool Refrigerator Plate
31	WP488366 Whirlpool Refrigerator Clamp
