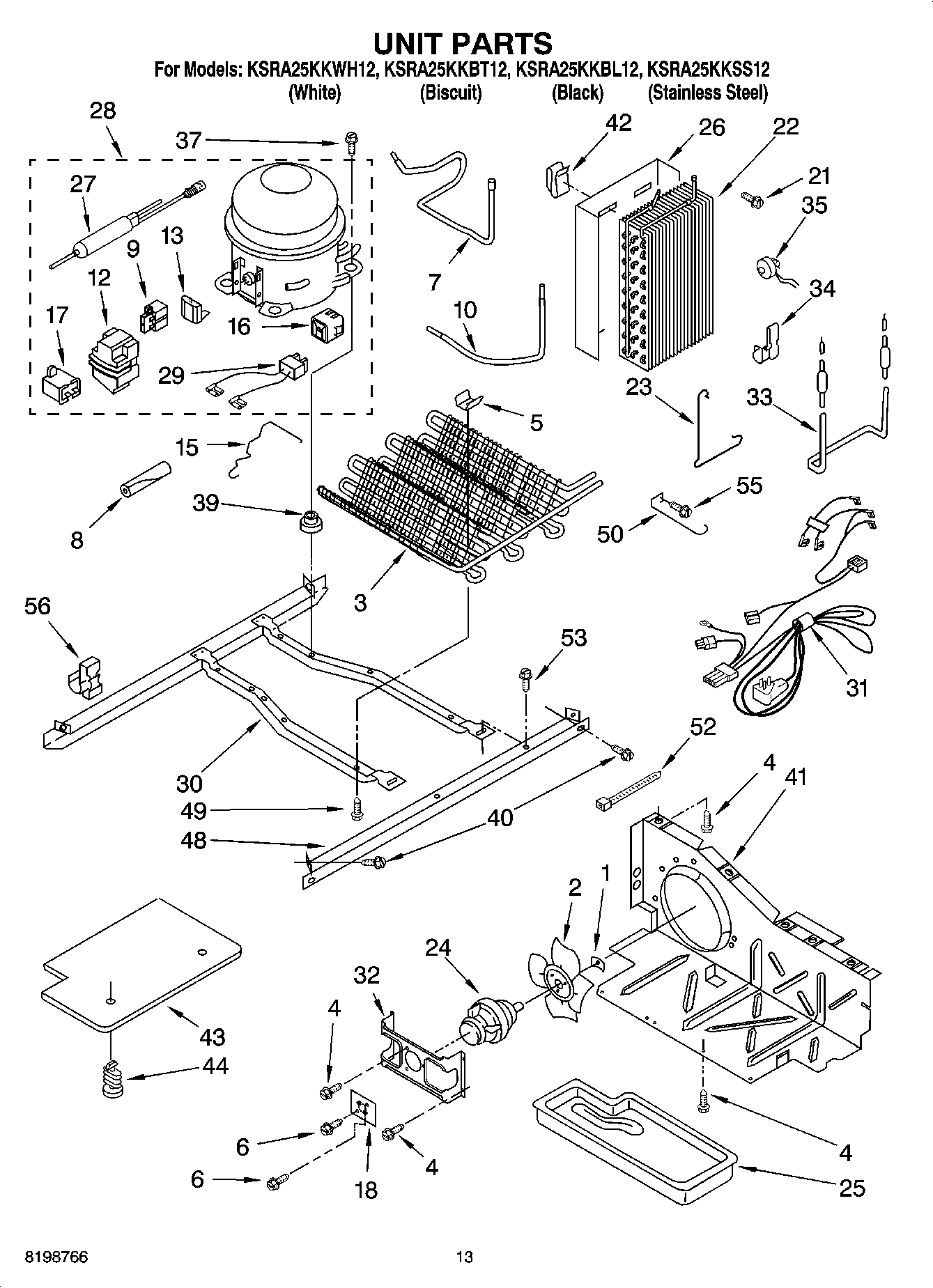

KSRA25KKSS12 09 – UNIT PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
WPL ARI93892A9
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
Cleaner, Stainless Steel
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI93893A6
WPL ARI93890A7
WPL ARI93891A1
606755 Whirlpool Refrigerator Bag
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
212643 Whirlpool Refrigerator Permagum Sealer
WP72107 Whirlpool Touchup
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350930 Whirlpool White Spray Paint
833938 Whirlpool Refrigerator Terminal
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
68281160 Whirlpool Screw
7WP2205765 Whirlpool Refrigerator Tube
8SLEEVE
9W10920279 Whirlpool Refrigerator Start Relay
10Tube, Condenser to Heat Loop
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2154697 Whirlpool Refrigerator Overload
152223314 Whirlpool Refrigerator Clip
168201786 Whirlpool Relay and Overload Start Kit
17WPW10662129 Whirlpool Refrigerator Run Capacitor
18Insert, Bracket
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Heat Shield And Drain Pan
27W10843121 Whirlpool Refrigerator Tube
28W10309994 Whirlpool Refrigerator Compressor
29WP2172890 Whirlpool Refrigerator Wire
302304904 Whirlpool Frame Assembly
31Harness, Unit
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323198 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39WP4387558 Whirlpool Refrigerator Compressor Grommet
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
43Unit Cover, Bottom
44489396 Whirlpool Refrigerator Clip
482305374 Whirlpool Refrigerator Unit Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55WP489478 Whirlpool Refrigerator Screw
56978030 Whirlpool Refrigerator Valve
56Clip, Wire & Tube
56876764 Whirlpool Refrigerator Primary Valve
56978026 Whirlpool Refrigerator Primary Valve
56WPL ARI93889A9
56and Op
56FOLLOWING PARTS NOT ILLUSTRATED
56VALVE, ACCESS (1/2“)
56WP978025 Whirlpool Refrigerator Valve
56978027 Whirlpool Refrigerator Primary Valve
56VALVE, ACCESS (5/8“)
