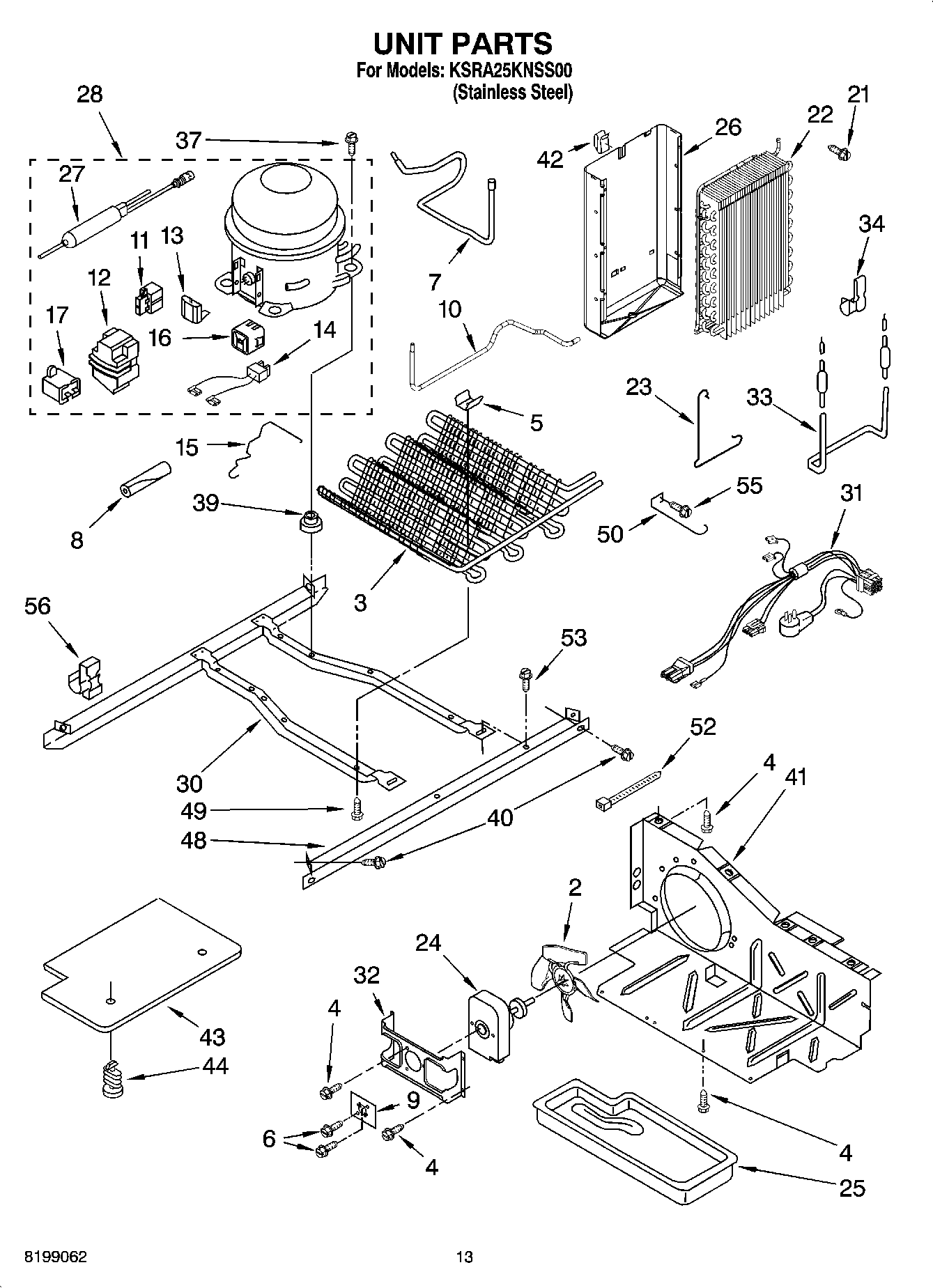

KSRA25KNSS00 09 – UNIT PARTS, PARTS NOT ILLUSTRATED

KSRA25KNSS00 09 – UNIT PARTS, PARTS NOT ILLUSTRATED

Written by

in

KSRA25KNSS00 09 – UNIT PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
72032 Whirlpool Touch Up Paint Black
876370 Whirlpool Refrigerator Insulation
WPL ARI93943A9
WPL ARI93942A8
WPL ARI93941A1
WP505587 Whirlpool Refrigerator Sealer
CLEANER, STAINLESS STEEL (12 OZ)
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
285006 Whirlpool Spray
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI93946A5
WPL ARI93945A8
WPL ARI93944A2
511873 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
WP503695 Whirlpool Refrigerator Sealer
4392901 Whirlpool Biscuit Spray Paint
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
68281160 Whirlpool Screw
7WP2205765 Whirlpool Refrigerator Tube
8SLEEVE
9Insert, Bracket
102261599 Whirlpool Refrigerator Tube
11W10920279 Whirlpool Refrigerator Start Relay
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2154697 Whirlpool Refrigerator Overload
14WP2172890 Whirlpool Refrigerator Wire
152223314 Whirlpool Refrigerator Clip
168201786 Whirlpool Relay and Overload Start Kit
17WPW10662129 Whirlpool Refrigerator Run Capacitor
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Heat Shield
27W10843121 Whirlpool Refrigerator Tube
28W10309994 Whirlpool Refrigerator Compressor
302304904 Whirlpool Frame Assembly
31WP2187778 Whirlpool Refrigerator Wire Harness
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323198 Whirlpool Refrigerator Heater
34W11623163 Whirlpool Refrigerator Clip
39876811 Whirlpool Grommet
39WP4387558 Whirlpool Refrigerator Compressor Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
43Unit Cover, Bottom
44489396 Whirlpool Refrigerator Clip
482305374 Whirlpool Refrigerator Unit Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55WP489478 Whirlpool Refrigerator Screw
56VALVE, ACCESS (1/2“)
56and Optional Parts Not Includ
56FOLLOWING PARTS NOT ILLUSTRATED
56VALVE, ACCESS (5/8“)
56Clip, Wire & Tube
56876764 Whirlpool Refrigerator Primary Valve
56978026 Whirlpool Refrigerator Primary Valve
56978027 Whirlpool Refrigerator Primary Valve
56978030 Whirlpool Refrigerator Valve
56WP978025 Whirlpool Refrigerator Valve
56WPL ARI93940A6
