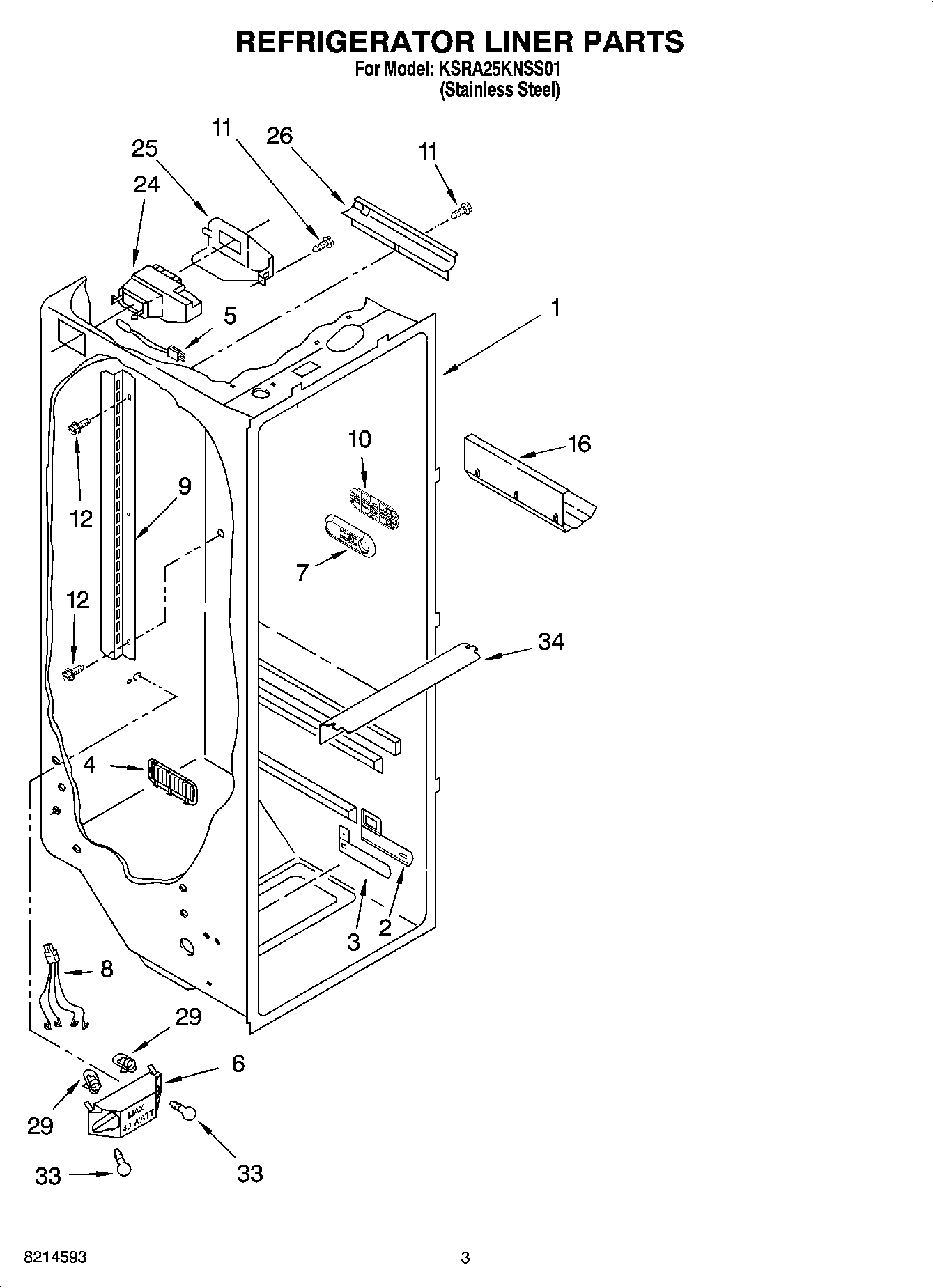

KSRA25KNSS01 02 – REFRIGERATOR LINER PARTS

KSRA25KNSS01 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRA25KNSS01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Escutcheon, Meat Pan Control
3Slide Meat Pan Control
4Louver
5WP2188819 Whirlpool Thermistor
6Bracket, Dual Crisper Light
72301234 Whirlpool Refrigerator Control
82311637 Whirlpool Refrigerator Wire Harness
9Ladder, Shelf
10Slide, Door Control
11W10759522 Whirlpool Screw
12WP489478 Whirlpool Refrigerator Screw
16W10777924 Whirlpool Refrigerator Wine Rack
24WP2216112 Whirlpool Damper Control Assembly
25WP2212240 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
294387478 Whirlpool Refrigerator Light Socket
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
