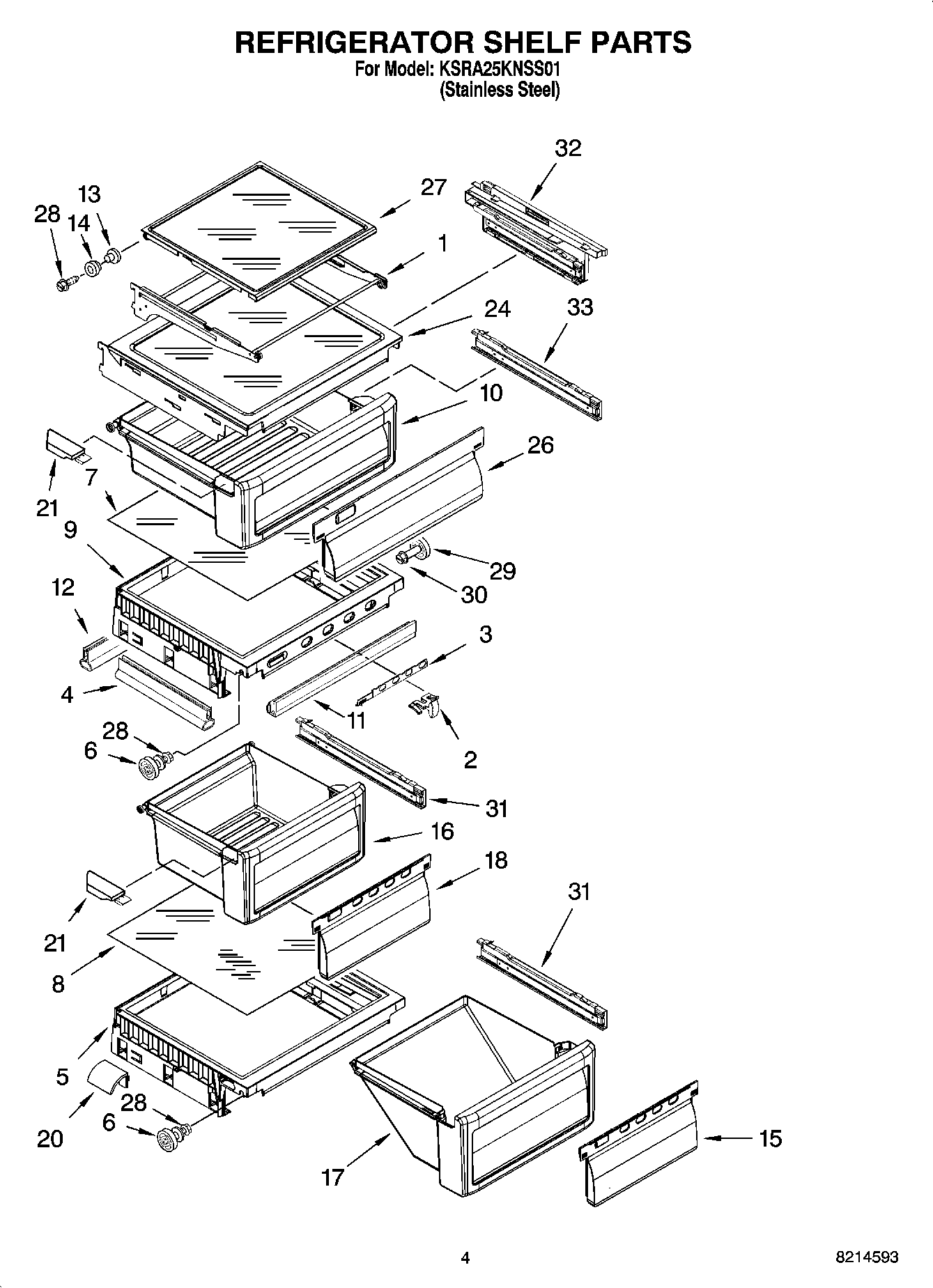

KSRA25KNSS01 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame Assembly
2	Knob, Humidity
3	2301026 Whirlpool Refrigerator Slide
4	2301117 Whirlpool Refrigerator Gasket
5	Cover, Meat Pan (Includes 20 & 24)
6	13, 14 & 15)
6	W11223328 Whirlpool Refrigerator Shelf Stud
7	Glass, Crisper Cover
8	Glass, Meat Pan Cover
9	Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
10	Snack Bin
11	WP1125528 Whirlpool Refrigerator Gasket
12	Gasket, Rear
13	Eyelet, Roller
14	Roller
15	Window, Meat Pan
16	W10916292 Whirlpool Refrigerator Crisper Pan
17	Meat Pan (Includes 21)
18	Window, Crisper
20	Deflector
21	Cap, Crisper Pan (Right Side)
21	Cap, Crisper Pan (Left Side)
24	Shelf Assembly
26	Window, Snack Pan
27	Shelf & Roller Assembly (2)
28	WP3-24004-109 Whirlpool Refrigerator Screw
29	WP2196483 Whirlpool Refrigerator Shelf Stud
30	WP3400806 Whirlpool Screw
31	Glide Assm-Pan (Left Side)
31	2301548 Whirlpool Refrigerator Glide
32	Support Assembly (Right Side)
32	Support Assembly (Left Side)
33	Glide Assm-Pan (Right Side)
33	Glide Assm-Pan (Left Side)
