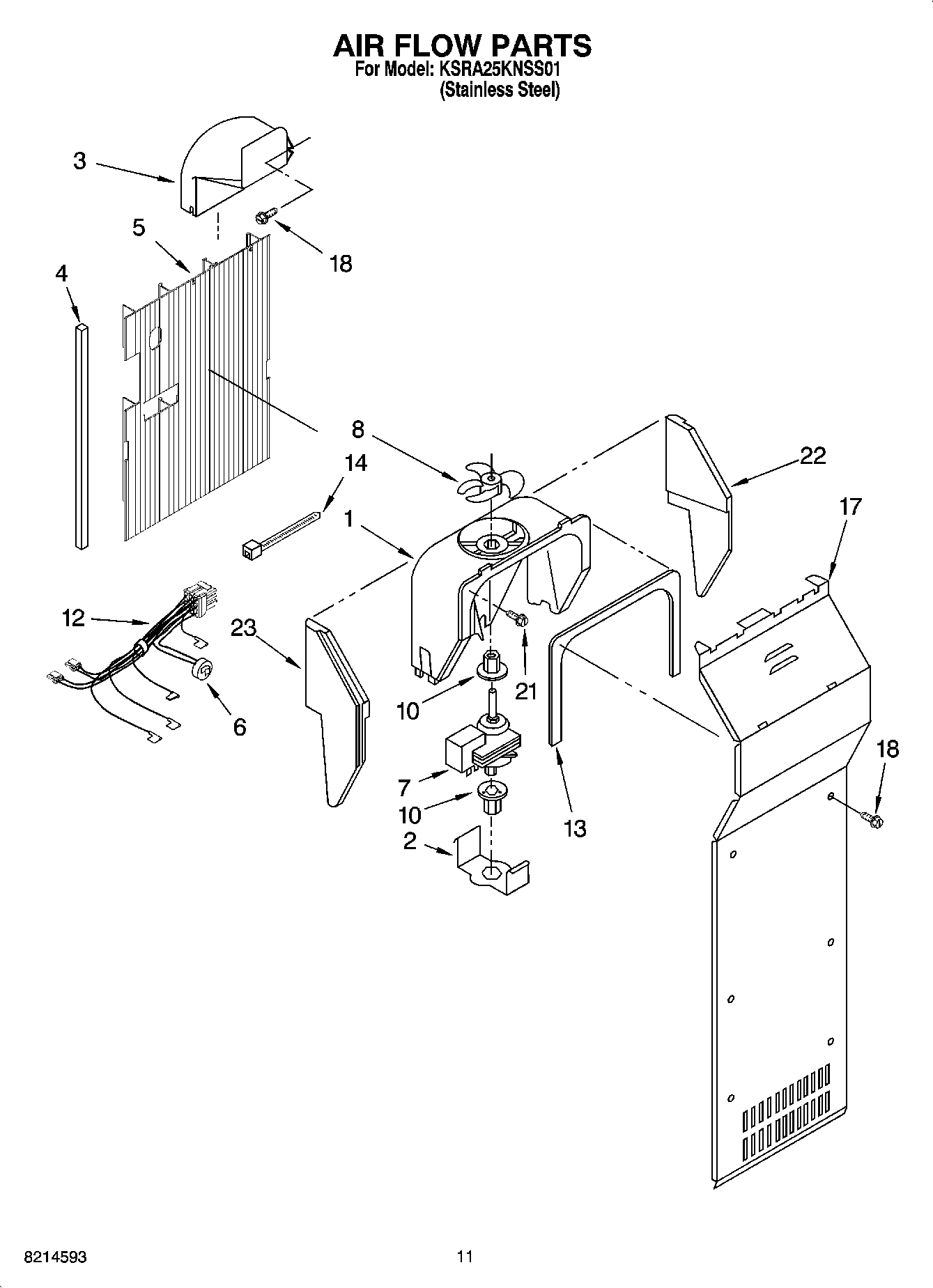

KSRA25KNSS01 07 – AIR FLOW PARTS

KSRA25KNSS01 07 – AIR FLOW PARTS

Written by

in

KSRA25KNSS01 07 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3Air Scoop
44388500 Whirlpool Refrigerator Gasket
5Air Duct Freezer
6WPW10225581 Whirlpool Refrigerator Defrost Thermostat
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
10WP2176759 Whirlpool Refrigerator Grommet
12Harness, Fan Evaporator (Includes 6)
13WP2155789 Whirlpool Refrigerator Gasket
14WPW10339879 Whirlpool Wire Tie
17Cover, Evaporator
184389654 Whirlpool Screw
21WP489478 Whirlpool Refrigerator Screw
234388358 Whirlpool Refrigerator Support Bracket
