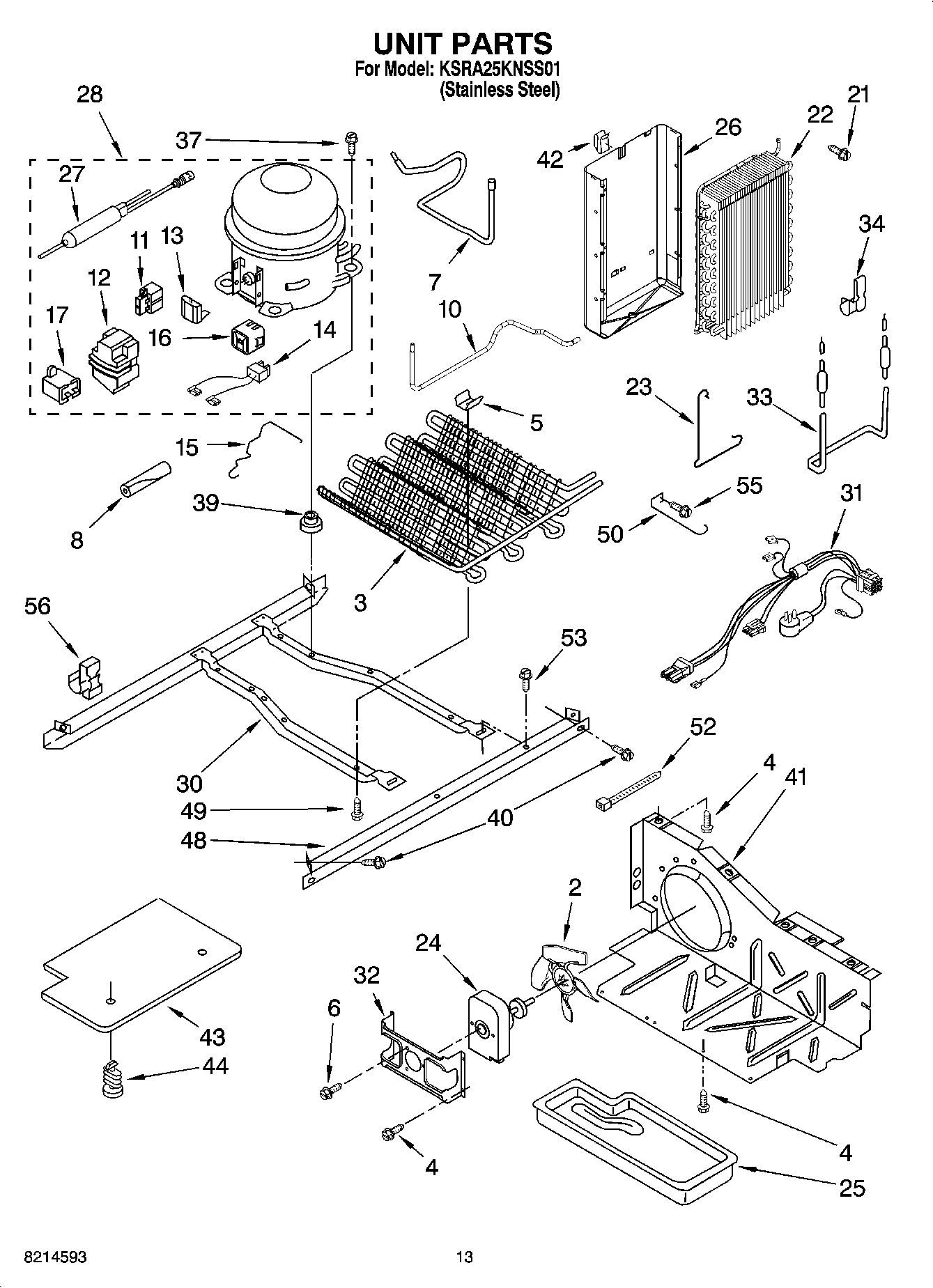

KSRA25KNSS01 09 – UNIT PARTS, OPTIONAL PARTS
Written by
in
KSRA25KNSS01 09 – UNIT PARTS, OPTIONAL PARTS
Products
Position
Product
72032 Whirlpool Touch Up Paint Black
WPL ARI93956A8
WP505587 Whirlpool Refrigerator Sealer
WPL ARI93955A9
WP542638 Whirlpool Refrigerator Grease
CLEANER, STAINLESS STEEL (12 OZ)
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
285006 Whirlpool Spray
WPL ARI93957A2
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
WPL ARI93959A4
799344 Whirlpool Refrigerator Paint
WPL ARI93958A3
350930 Whirlpool White Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
72017 Whirlpool Appliance Touch-Up Paint White
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
WPL ARI93960A1
2
W11458267 Whirlpool Refrigerator Fan Blade
3
2324712 Whirlpool Refrigerator Condenser
4
WP489464 Whirlpool Refrigerator Screw
5
W10683556 Whirlpool Refrigerator Clip
6
WP8533993 Whirlpool Refrigerator Screw
7
WP2205765 Whirlpool Refrigerator Tube
8
SLEEVE
10
2261599 Whirlpool Refrigerator Tube
11
W10920279 Whirlpool Refrigerator Start Relay
12
WP2162358 Whirlpool Refrigerator Terminal Cover
13
WP2154697 Whirlpool Refrigerator Overload
14
WP2172890 Whirlpool Refrigerator Wire
15
2223314 Whirlpool Refrigerator Clip
16
8201786 Whirlpool Relay and Overload Start Kit
17
WPW10662129 Whirlpool Refrigerator Run Capacitor
22
WP2188823 Whirlpool Refrigerator Evaporator
23
Clamp
24
WP2188874 Whirlpool Refrigerator Condenser Motor
25
WPW10614158 Whirlpool Refrigerator Evaporator Tray
26
Heat Shield
27
W10843121 Whirlpool Refrigerator Tube
28
W10309994 Whirlpool Refrigerator Compressor
30
2304904 Whirlpool Frame Assembly
31
WP2187778 Whirlpool Refrigerator Wire Harness
32
WP2181929 Whirlpool Refrigerator Bracket
33
WP2323198 Whirlpool Refrigerator Heater
34
W11623163 Whirlpool Refrigerator Clip
39
WP4387558 Whirlpool Refrigerator Compressor Grommet
39
876811 Whirlpool Grommet
40
489340 Whirlpool Refrigerator Screw
41
W10896764 Whirlpool Refrigerator Air Baffle
42
Clip, Heat Shield
43
Unit Cover, Bottom
44
489396 Whirlpool Refrigerator Clip
48
2305374 Whirlpool Refrigerator Unit Rail
49
W11544659 Whirlpool Refrigerator Screw
50
Guard, Fan
52
WPW10339879 Whirlpool Wire Tie
53
WP489427 Whirlpool Refrigerator Screw
55
WP489478 Whirlpool Refrigerator Screw
56
VALVE, ACCESS (1/2“)
56
and Optional Parts Not Included
56
FOLLOWING PARTS NOT ILLUSTRATED
56
VALVE, ACCESS (5/8“)
56
Clip, Wire & Tube
56
876764 Whirlpool Refrigerator Primary Valve
56
978026 Whirlpool Refrigerator Primary Valve
56
978027 Whirlpool Refrigerator Primary Valve
56
978030 Whirlpool Refrigerator Valve
56
WP978025 Whirlpool Refrigerator Valve
56
REFRIGERANT C
←
