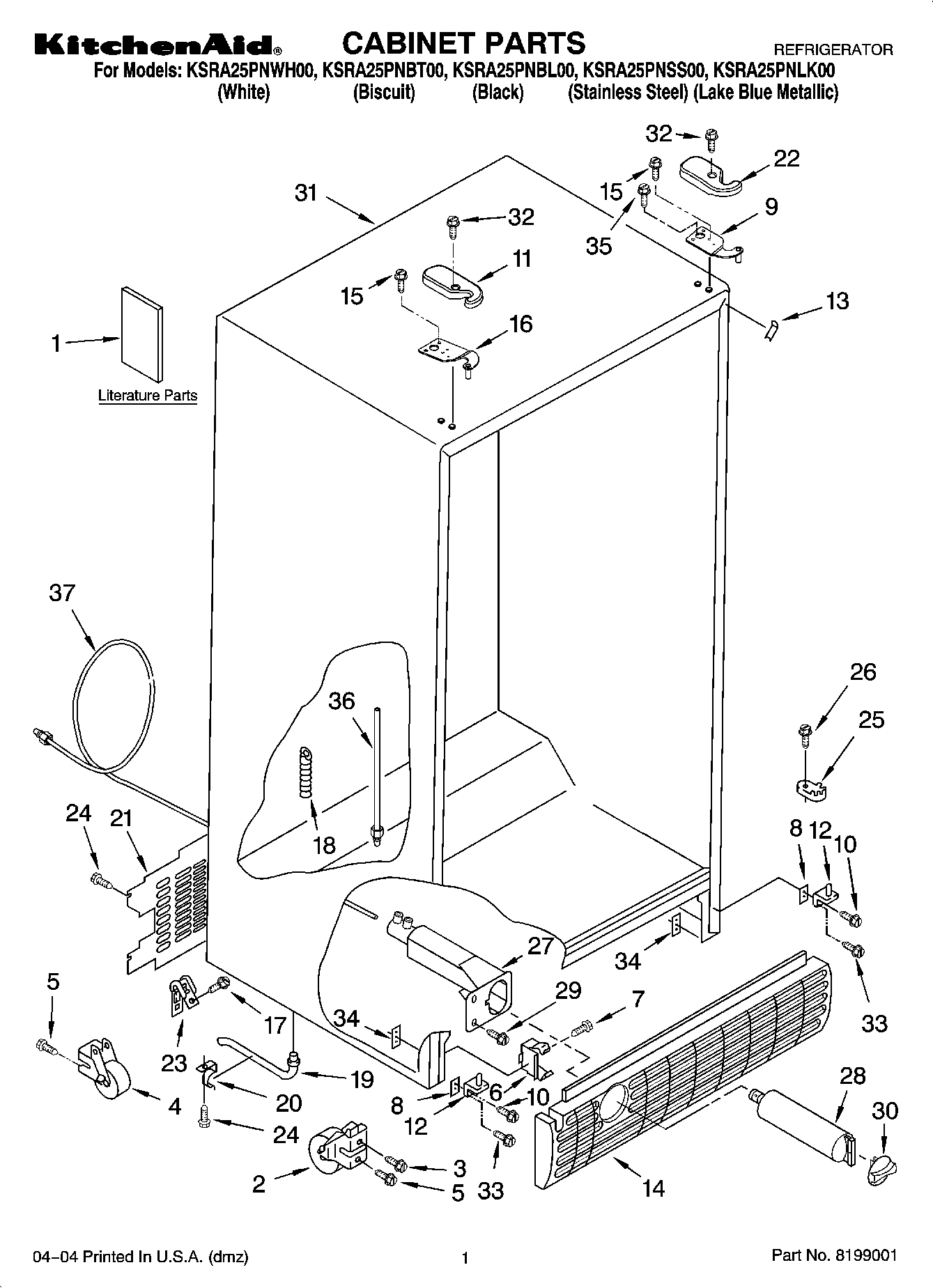

KSRA25PNBT00 01 – CABINET PARTS

Products

Position	Product
	WPL ARI93979A5
1	Literature Parts (Service & Wiring Sheet)
1	Literature Parts (Energy Guide)
1	Literature Parts (Use & Care Guide)
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP489497 Whirlpool Screw
11	2203407T Whirlpool Refrigerator Cover
11	WP2203407B Whirlpool Refrigerator Cover
11	Hinge Cover (European Silver)
11	WP2203407W Whirlpool Refrigerator Cover
12	8201707 Whirlpool Door Hinge
13	Filler, Wrapper (White)
13	Filler, Wrapper (Black)
13	Filler, Wrapper (Biscuit)
13	Filler, Wrapper (European Silver)
14	Grille (European Silver)
14	Grille (Biscuit)
14	W10803964 Whirlpool Grille Assembly
16	WP2203770 Whirlpool Refrigerator Door Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	WP2188755 Whirlpool Rear Panel
22	WP2203408W Whirlpool Refrigerator Cover
22	WP2203408B Whirlpool Refrigerator Cover
22	Hinge Cover (European Silver)
22	Hinge Cover (Biscuit)
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	WP2186443 Whirlpool Water Filter Housing
28	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
29	WP489500 Whirlpool Refrigerator Screw
30	WP2186494T Whirlpool Water Filter Cap
30	Cap, Water Filter (European Silver)
30	WP2186494B Whirlpool Refrigerator Filter Cap
30	WP2186494W Whirlpool Water Filter Cap
31	Cabinet (Not A Serviceable Part)
32	WP8281227 Whirlpool Screw
33	W10856122 Whirlpool Refrigerator Screw
34	WP2304249 Whirlpool Refrigerator Plate
35	W10853301 Whirlpool Refrigerator Screw
36	Tube
37	WPL ARI93982A9
