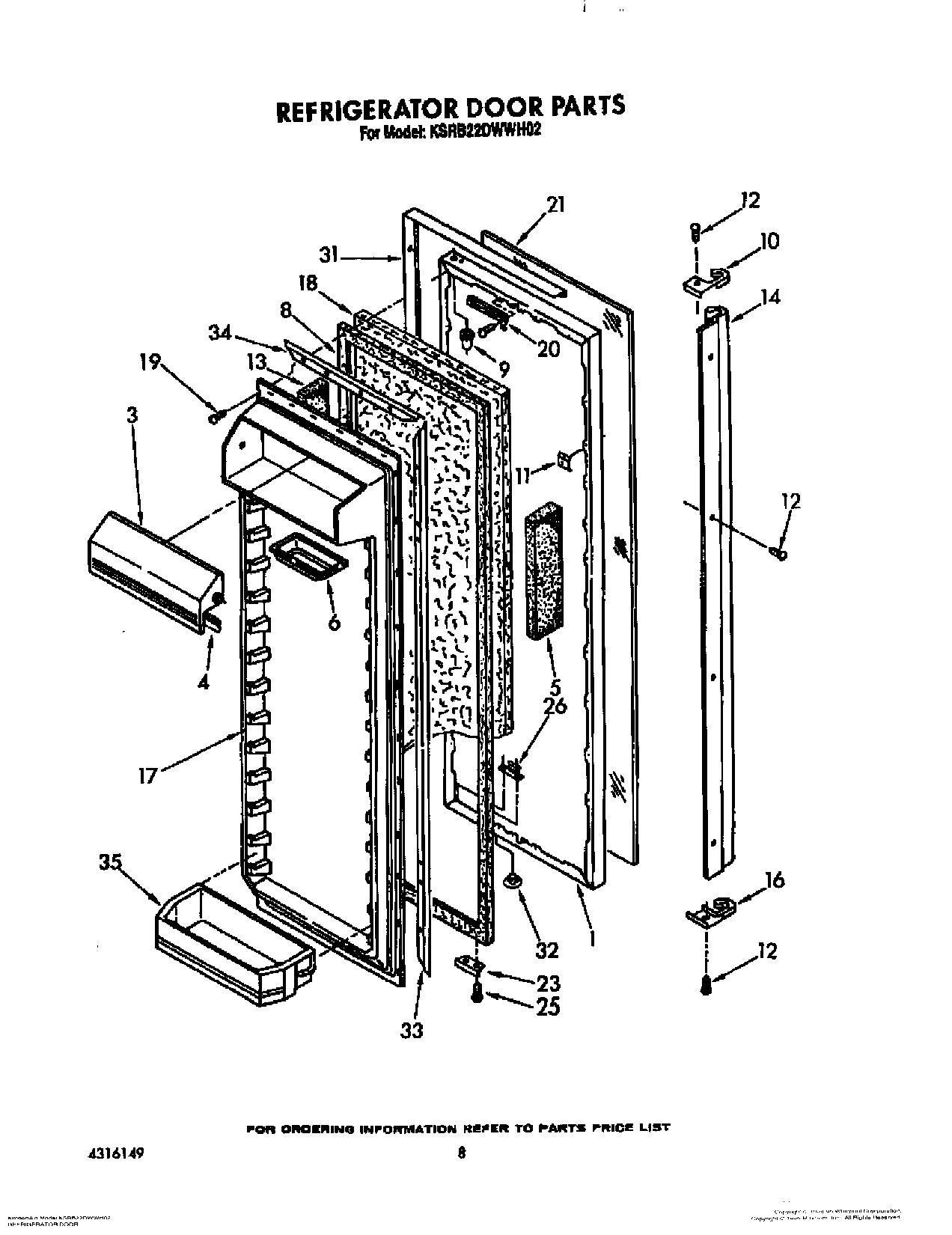

KSRB22DWWH02 07 – REFRIGERATOR DOOR

Products

Position	Product
NI	WP488729 Whirlpool Refrigerator Door Screw
1	Refrigerator Door (Almond (Also Order Item 18))
1	Refrigerator Door (White)
3	Compartment Door,
4	Gasket, Utility Door
5	Dike, Door Handle Side
6	Butter, Tray
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	End Cap, Bottom
11	Screw Anchor (2)
12	Screw, 6-32 x 1/2
13	Dike, Door Hinge Side
14	Handle Assembly
16	End Cap, Top
17	Panel, Interior Door
18	WPL 876029
19	WP489069 Whirlpool Compactor Screw
20	Door Closer, Upper Cam
21	Black Glass
23	Bracket, Door Stop
25	Screw, 89 x 5/8
26	Tap Plate
31	Trim, Door
32	Hole Plug (2)
33	Retainer, Gasket
34	Gasket Retainer, Top & Bottom
35	Bin, Door Shelf Deep. Wide
