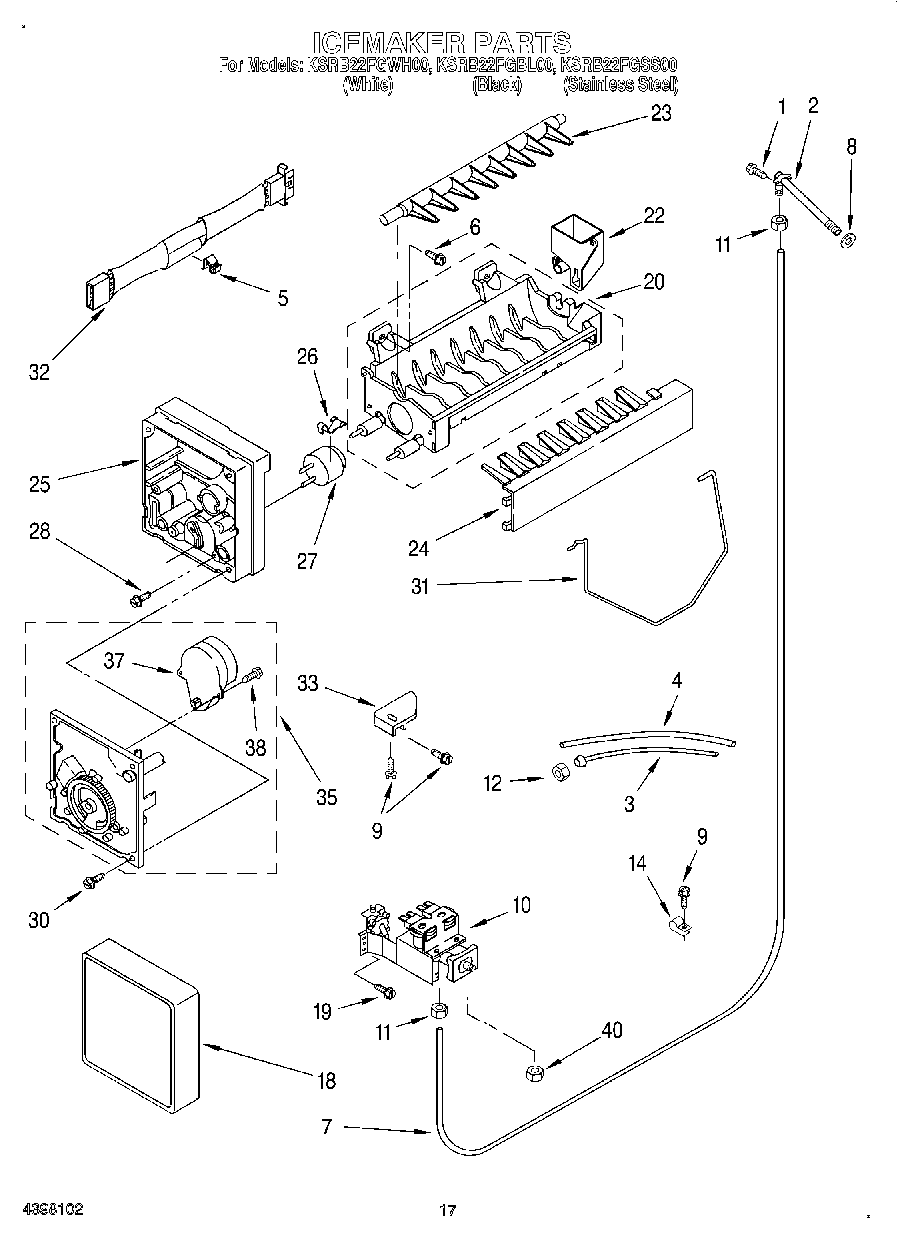

KSRB22FGWH00 11 – ICEMAKER

Products

Position	Product
2	WP2196157 Whirlpool Fill Tube
3	W11496481 Whirlpool Refrigerator Water Tube
4	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
5	WP628379 Whirlpool Refrigerator Clip
6	WP488163 Whirlpool Refrigerator Screw
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489478 Whirlpool Refrigerator Screw
10	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
11	WP627018 Whirlpool Refrigerator Nut
12	Nut, Compression
14	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
20	WP542638 Whirlpool Refrigerator Grease
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
27	Cement Alumilastic)
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
40	Nut, Compression
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
