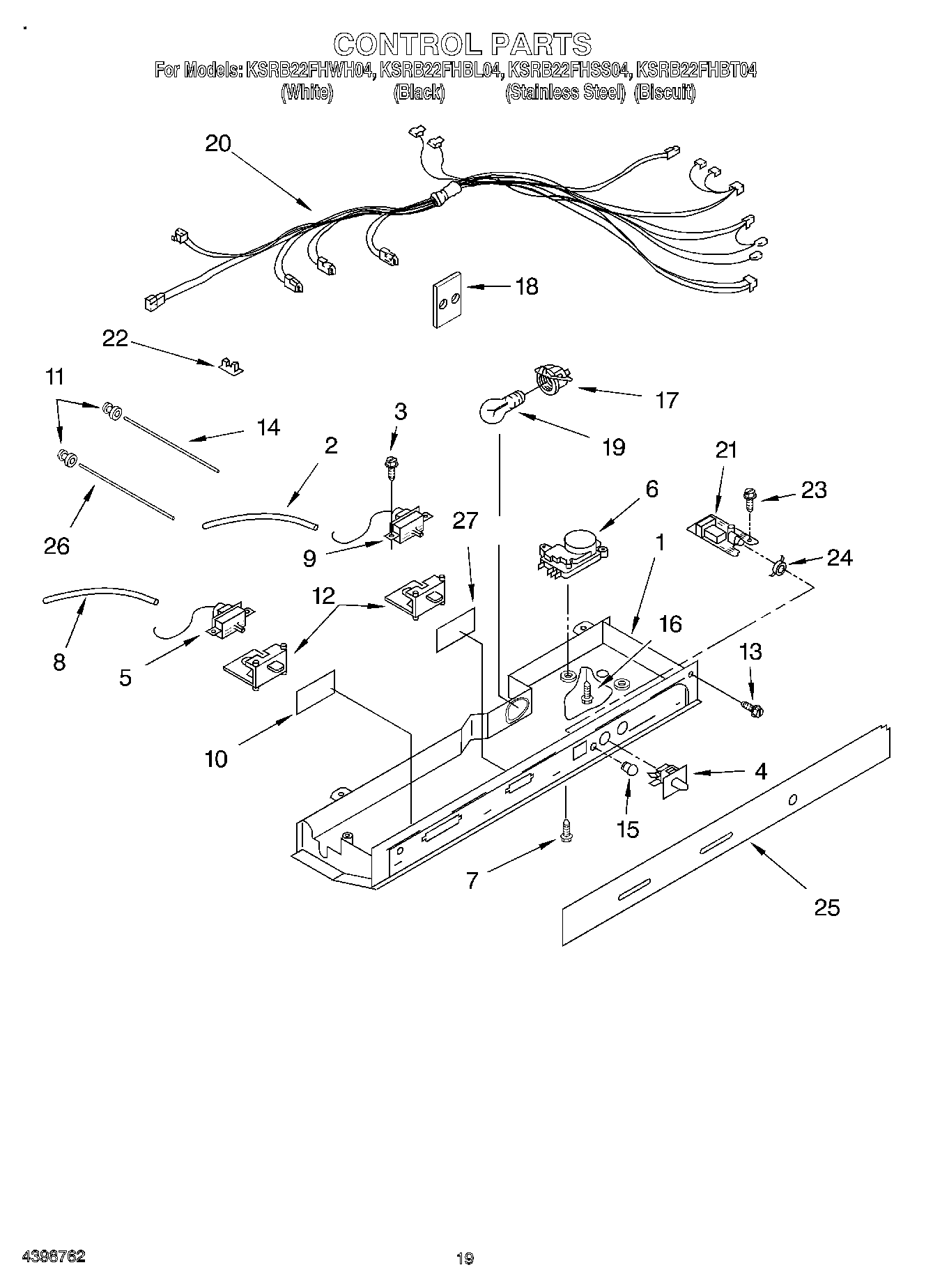

KSRB22FHBL04 12 – CONTROL, OPTIONAL

KSRB22FHBL04 12 – CONTROL, OPTIONAL

Written by

in

KSRB22FHBL04 12 – CONTROL, OPTIONAL

Products

PositionProduct
12200135 Whirlpool Refrigerator Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2182770 Whirlpool Refrigerator Thermostat
6Defrost Timer (10 Hr.)
7489392 Whirlpool Refrigerator Screw
9WP2161460 Whirlpool Refrigerator Thermostat
102172940 Whirlpool Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
15COVER, LIGHT LENS
16WP488488 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
182172931 Whirlpool Refrigerator Shield
19RANGE ONLY 40W 120V APPL BULB
20Control Box Harness
21P.C. Board Filter Indicator
22CLIP, WIRING
232006254 Whirlpool Refrigerator Screw
24Retainer, Light Lens
25Escutcheon, Control Box
26Light Bar (FC)
27Window
27Torx Key
27WPW10312301 Whirlpool Refrigerator Ice Container
27350930 Whirlpool White Spray Paint
2772032 Whirlpool Touch Up Paint Black
27285006 Whirlpool Spray
27511873 Whirlpool Refrigerator Paint
274392901 Whirlpool Biscuit Spray Paint
274392899 Whirlpool Biscuit Touch-Up Paint
27350942 Whirlpool Spray Paint
27212643 Whirlpool Refrigerator Permagum Sealer
27Almond (Uncut)
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
27606755 Whirlpool Refrigerator Bag
27833938 Whirlpool Refrigerator Terminal
27876370 Whirlpool Refrigerator Insulation
27WPL 876029
27WPL 799833
27Enamel, Black (1 Qt. Uncut)
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
27TAPE, VINYL (3/4 X 108“)
27PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
27WP542638 Whirlpool Refrigerator Grease
27WP505587 Whirlpool Refrigerator Sealer
27WP503695 Whirlpool Refrigerator Sealer
27350956 Whirlpool Spray Assembly
