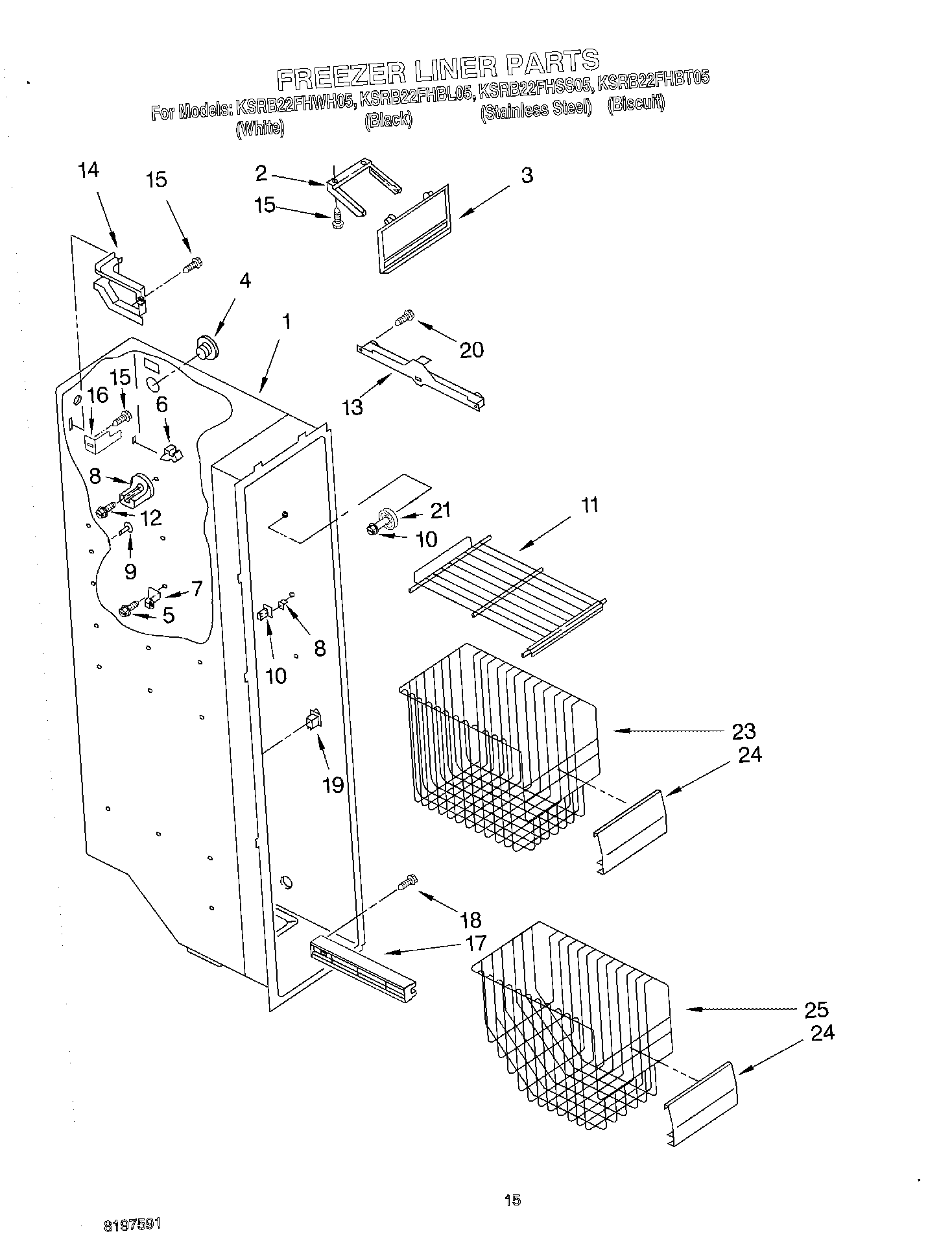

KSRB22FHBL05 09 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
4	940014 Whirlpool Refrigerator Primary Button Plug
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud, Rear
9	Grommet
10	WP3400806 Whirlpool Screw
11	WP2174249K Whirlpool Refrigerator Wire Shelf
12	W10142289 Whirlpool Air Conditioner Screw
13	W10845585 Whirlpool Refrigerator Track
13	W10845583 Whirlpool Refrigerator Track
14	Cover, Wiring
15	SCREW
16	Bracket, Fill Tube
17	Slide, Basket (Left Side (2))
17	Slide, Basket (Right Side (2))
18	W10759522 Whirlpool Screw
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	718257 Whirlpool Dishwasher Screw
21	WP2196483 Whirlpool Refrigerator Shelf Stud
23	Basket, Tall
24	Basket, Front
25	Freezer Bin
