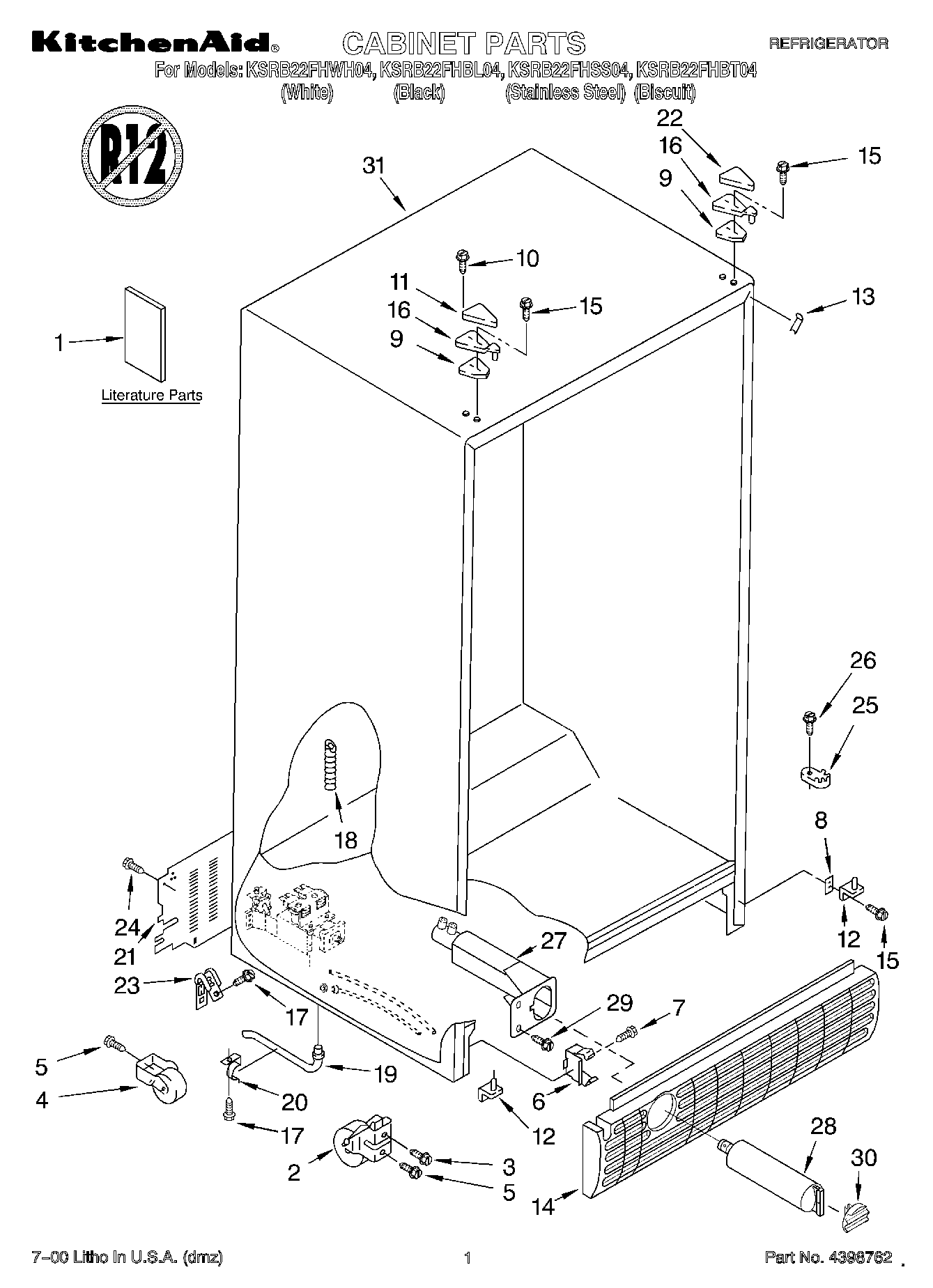

KSRB22FHBT04 01 – CABINET, LITERATURE

KSRB22FHBT04 01 – CABINET, LITERATURE

Written by

in

KSRB22FHBT04 01 – CABINET, LITERATURE

Products

PositionProduct
1Modular Icemaker Service Sheet
1LITERATURE PARTS (Energy Guide)
1Literature Parts (Use & Care Guide)
1LITERATURE PARTS (Service & Wiring Sheet)
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2181911 Whirlpool Refrigerator Shim
9Shim, Hinge Top
10Screw
11Hinge Cover
11Hinge Cover (White)
11Hinge Cover (Biscuit)
128201707 Whirlpool Door Hinge
13Filler, Wrapper (Biscuit)
13Filler, Wrapper (Black)
13Filler, Wrapper (White)
14W10802713 Whirlpool Refrigerator Grille
15WP489497 Whirlpool Screw
16WP2196046 Whirlpool Refrigerator Door Hinge
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19WP1108438 Whirlpool Refrigerator Extension
20WP1108439 Whirlpool Refrigerator Clip
21WP2188756 Whirlpool Refrigerator Unit Cover
221119787 Whirlpool Refrigerator Hinge Cover
22Hinge Cover (Black)
23549193 Whirlpool Refrigerator Power Clamp
25WPW10329686 Whirlpool Door Cam Black
26WP489483 Whirlpool Screw
27WP2186443 Whirlpool Water Filter Housing
28EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
29WP489500 Whirlpool Refrigerator Screw
30WP2186494W Whirlpool Water Filter Cap
30WP2186494B Whirlpool Refrigerator Filter Cap
30WP2186494T Whirlpool Water Filter Cap
31Cabinet (Not A Serviceable Part)
