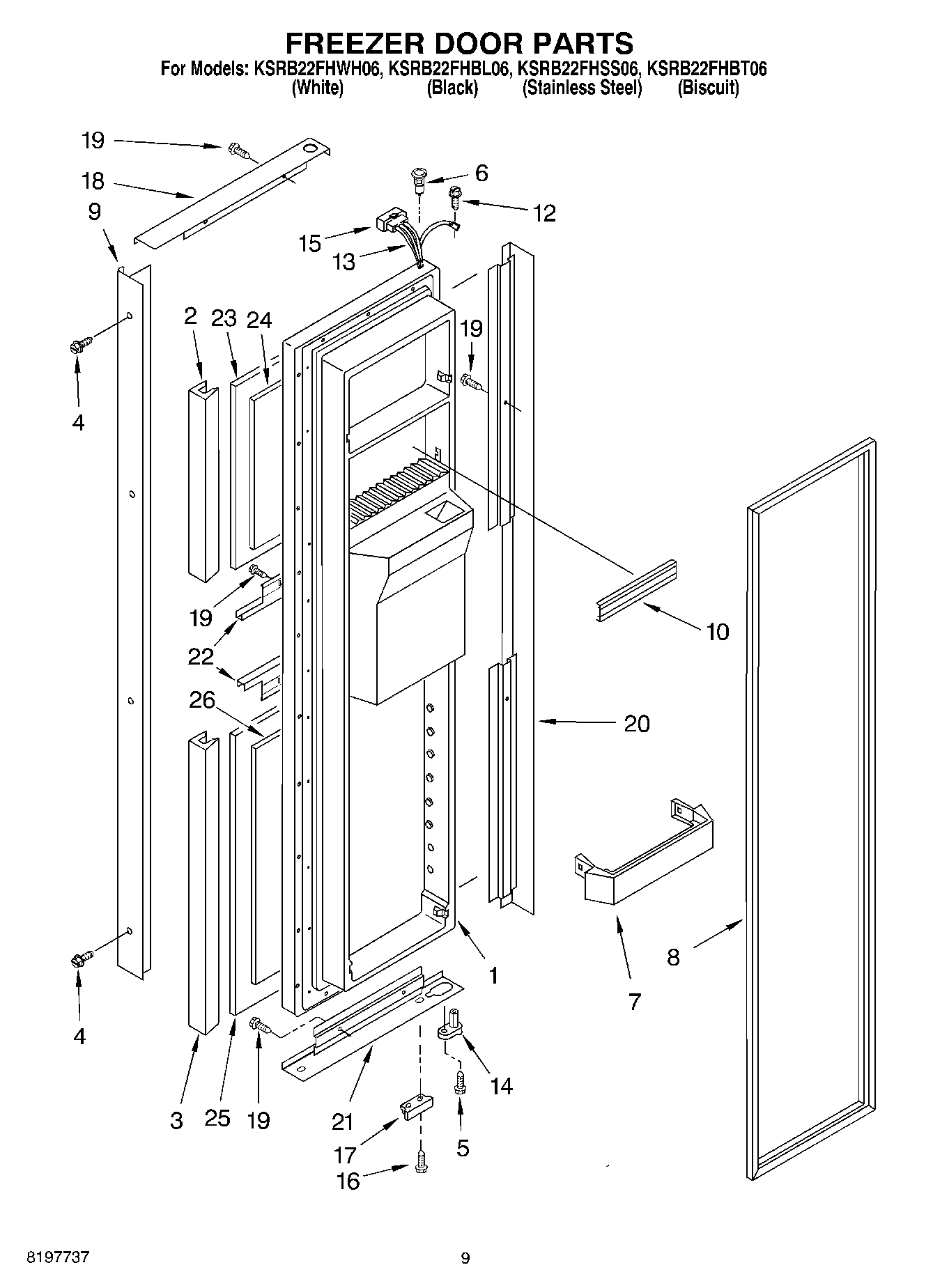

KSRB22FHBT06 06 – FREEZER DOOR

KSRB22FHBT06 06 – FREEZER DOOR

Written by

in

KSRB22FHBT06 06 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Stainless Steel)
1Freezer Door (Includes No.8 And Dispenser Front Parts) (White)
2Edging, Top (Biscuit)
2Edging, Top (Black)
2Edging, Top (White)
3Edging, Bottom (Black)
3Edging, Bottom (Biscuit)
3Edging, Bottom (White)
4Screw (White)
4Screw (Black)
4Screw (Biscuit)
4Screw
5WP3400012 Whirlpool Refrigerator Screw
6WP2182181 Whirlpool Refrigerator Thimble
7Trivet, Shelf (4)
82159080 Whirlpool Refrigerator Door Gasket
82159072 Whirlpool Refrigerator FIP Gasket
9Handle (Black)
9Handle (Stainless Steel)
9Handle (Biscuit)
9Handle (White)
10WPW10307490 Whirlpool Door Trim Assembly
12WP489128 Whirlpool Refrigerator Screw
13Wire Harness
14WP2182179 Whirlpool Cam Closer
15WP2154473 Whirlpool Refrigerator Connector
16WP489483 Whirlpool Screw
17Bracket, Door Stop (Chrome)
18Trim, Door (Top) (Black)
18Trim, Door (Top) (Biscuit)
18Trim, Door (Top) (Stainless Steel)
18Trim, Door (Top) (White)
19WP3196557 Whirlpool Screw
20Trim, Door (Hinge Side) (Biscuit)
20Trim, Door (Hinge Side) (Stainless Steel)
20Trim, Door (Hinge Side) (White)
20Trim, Door (Hinge Side) (Black)
21WPL 2203364T
21Trim, Door (Bottom) (Black)
21Trim, Door (Bottom) (White)
21Trim, Door (Bottom) (Stainless Steel)
22Trim, Door (Dispenser Top and Bottom) (Black)
22Trim, Door (Dispenser Top and Bottom
22WPL 2186701T
22Trim, Door (Dispenser Top and Bottom) (White)
23WPL 2203283T
23WPL 2203283B
23WPL 2203289S
23WPL 2203283W
24WPL 2208274
25WPL 2203285B
25WPL 2203285W
25WPL 2203291S
25WPL 2203285T
26WPL 2208275
