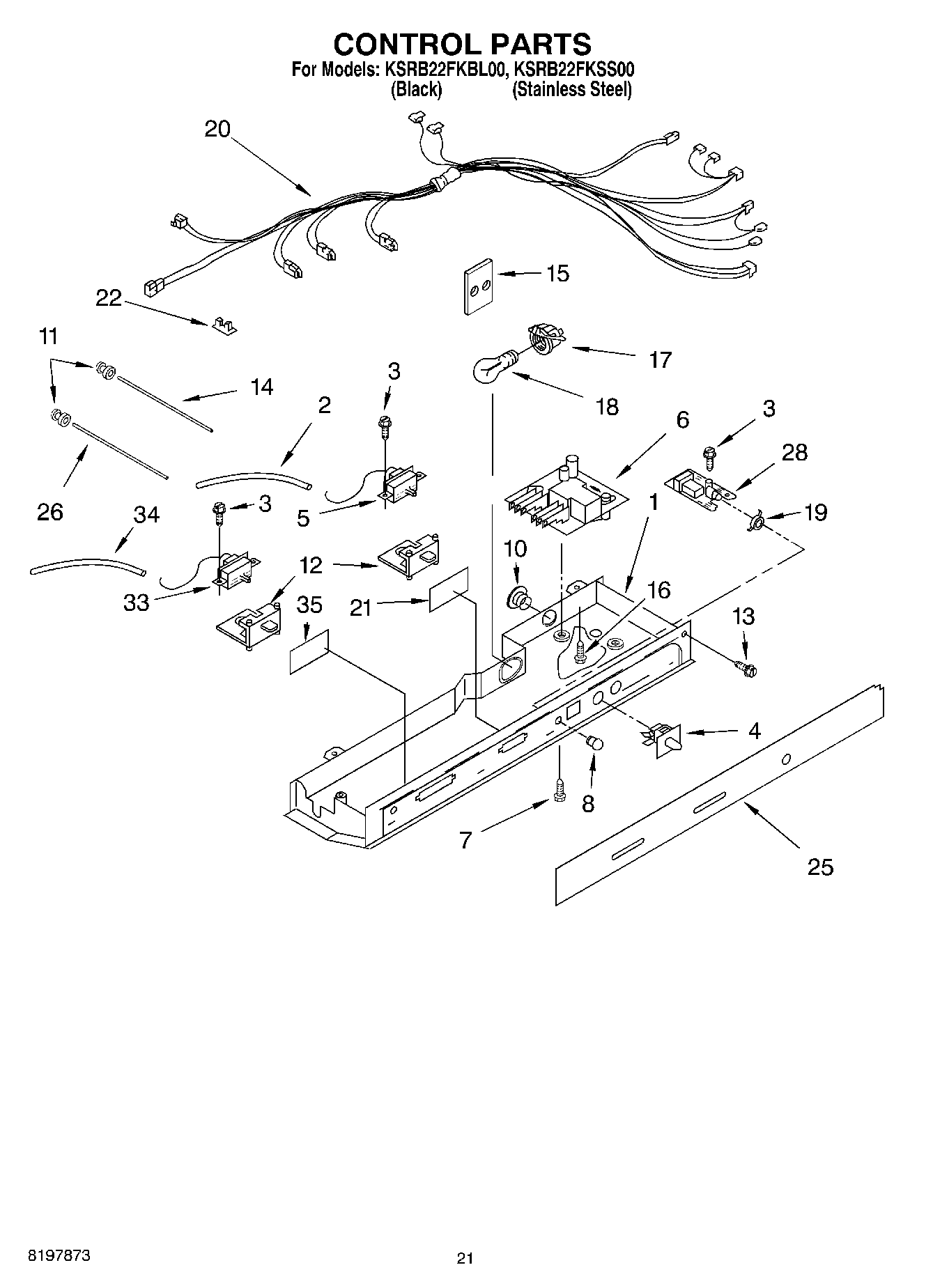

KSRB22FKBL00 12 – CONTROL, OPTIONAL

KSRB22FKBL00 12 – CONTROL, OPTIONAL

Products

PositionProduct
12200135 Whirlpool Refrigerator Control Box
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2161460 Whirlpool Refrigerator Thermostat
64388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7489392 Whirlpool Refrigerator Screw
8COVER, LIGHT LENS
10940014 Whirlpool Refrigerator Primary Button Plug
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
152172931 Whirlpool Refrigerator Shield
16WP488488 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
18RANGE ONLY 40W 120V APPL BULB
19Retainer, Light Lens
20Harness, Control Box
212172940 Whirlpool Window
22CLIP, WIRING
25Escutcheon, Control Box
26Light Bar (FC)
28P.C. Board Filter Indicator
33WP2182770 Whirlpool Refrigerator Thermostat
34WP2196003 Whirlpool Refrigerator Bar Riser
35Window
35350930 Whirlpool White Spray Paint
35PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
35WPW10312301 Whirlpool Refrigerator Ice Container
35Ice Crusher Mechanism Assembly
3572032 Whirlpool Touch Up Paint Black
35285006 Whirlpool Spray
35511873 Whirlpool Refrigerator Paint
354392901 Whirlpool Biscuit Spray Paint
354392899 Whirlpool Biscuit Touch-Up Paint
35350942 Whirlpool Spray Paint
35212643 Whirlpool Refrigerator Permagum Sealer
35Almond (Uncut)
35WP72107 Whirlpool Touchup
35799344 Whirlpool Refrigerator Paint
3572017 Whirlpool Appliance Touch-Up Paint White
35606755 Whirlpool Refrigerator Bag
35833938 Whirlpool Refrigerator Terminal
35876370 Whirlpool Refrigerator Insulation
35WPL 876029
35WPL 799833
35Enamel, Black (1 Qt. Uncut)
35CEMENT, ALUMILASTIC (1 1/4 OZ.)
35TAPE, VINYL (3/4 X 108``)
35Torx Key
35WP542638 Whirlpool Refrigerator Grease
35WP505587 Whirlpool Refrigerator Sealer
35WP503695 Whirlpool Refrigerator Sealer
35350956 Whirlpool Spray Assembly
