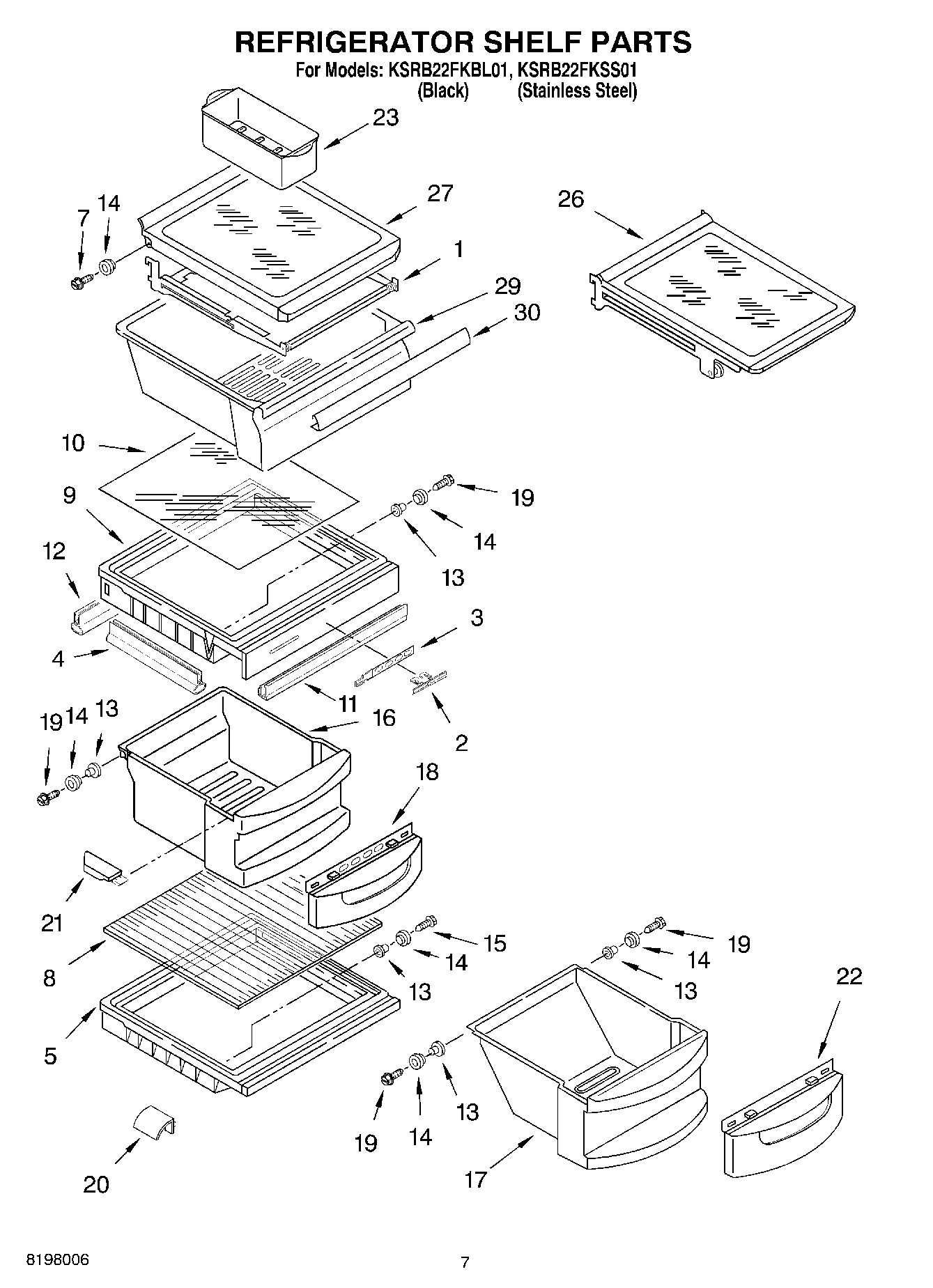

KSRB22FKBL01 05 – REFRIGERATOR SHELF

Products

Position	Product
1	Shelf Assembly, Cantilever
2	Button, Humidity Control
3	2174252 Whirlpool Refrigerator Slide
4	Gasket, Side (2)
5	WP2161491 Whirlpool Crisper Drawer Cover
7	Screw
8	Glass, Cover
9	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14, & 19)
10	Glass, Cover
11	WP1125528 Whirlpool Refrigerator Gasket
12	Gasket, (Rear)
13	Eyelet, Roller
14	Roller
15	WPW10272364 Whirlpool Refrigerator Screw
16	WP2179227 Whirlpool Refrigerator Crisper Pan
17	Meat Pan (Includes 13, 14, 19, & 22)
18	Window, Crisper
19	WP489261 Whirlpool Refrigerator Screw
20	2176095 Whirlpool Refrigerator Deflector
21	Cap, Crisper (Right Side)
21	Cap, Crisper (Left Side)
22	Window, Meat Pan
23	W10136387A Whirlpool Refrigerator Egg Container
26	Shelf Assembly
27	Shelf & Roller Assembly
29	W11497323 Whirlpool Snack Pan
30	WP2179243 Whirlpool Refrigerator Pan Trim
