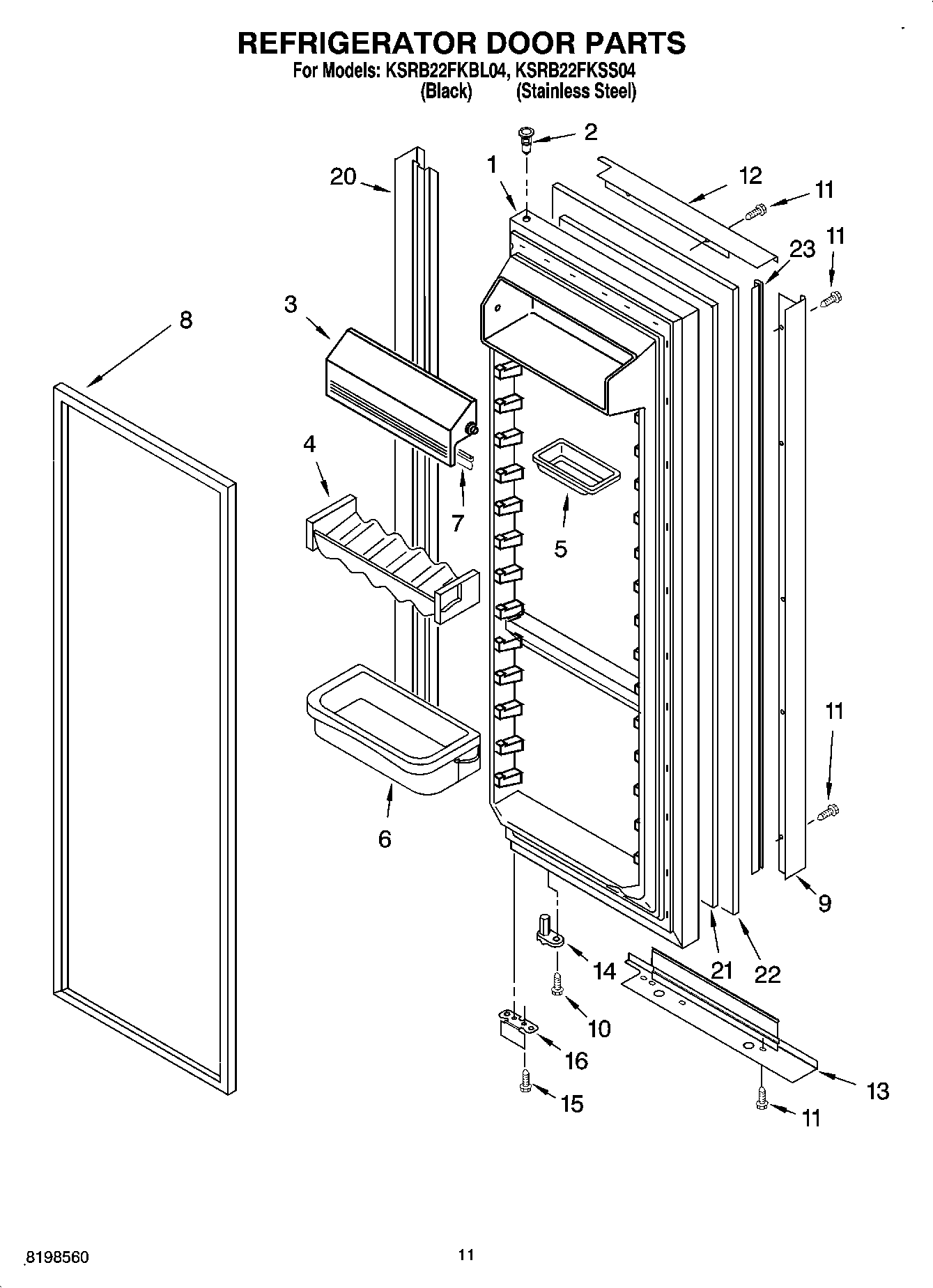

KSRB22FKBL04 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item No.8) (Black)
2	WP2182181 Whirlpool Refrigerator Thimble
3	Door, Compartment
4	Beverage Holder
5	Butter Tray
6	Shelf Bin (3)
7	Gasket, Door Compartment
8	2159081 Whirlpool Refrigerator Door Gasket
9	Handle (Stainless Steel)
9	Handle (Black)
10	WP3400012 Whirlpool Refrigerator Screw
11	Screw
11	Screw (Black)
12	Trim, Door Top (Black)
12	Trim, Door Top (Stainless Steel)
13	Trim, Door Bottom (Black)
13	Trim, Door Bottom (Stainless Steel)
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Black)
20	Trim, Hinge Side (Stainless Steel)
20	Trim, Hinge Side (Black)
21	Board, Filler
22	Panel, Door (Black)
22	Panel, Door (Stainless Steel)
23	Edging, Panel
