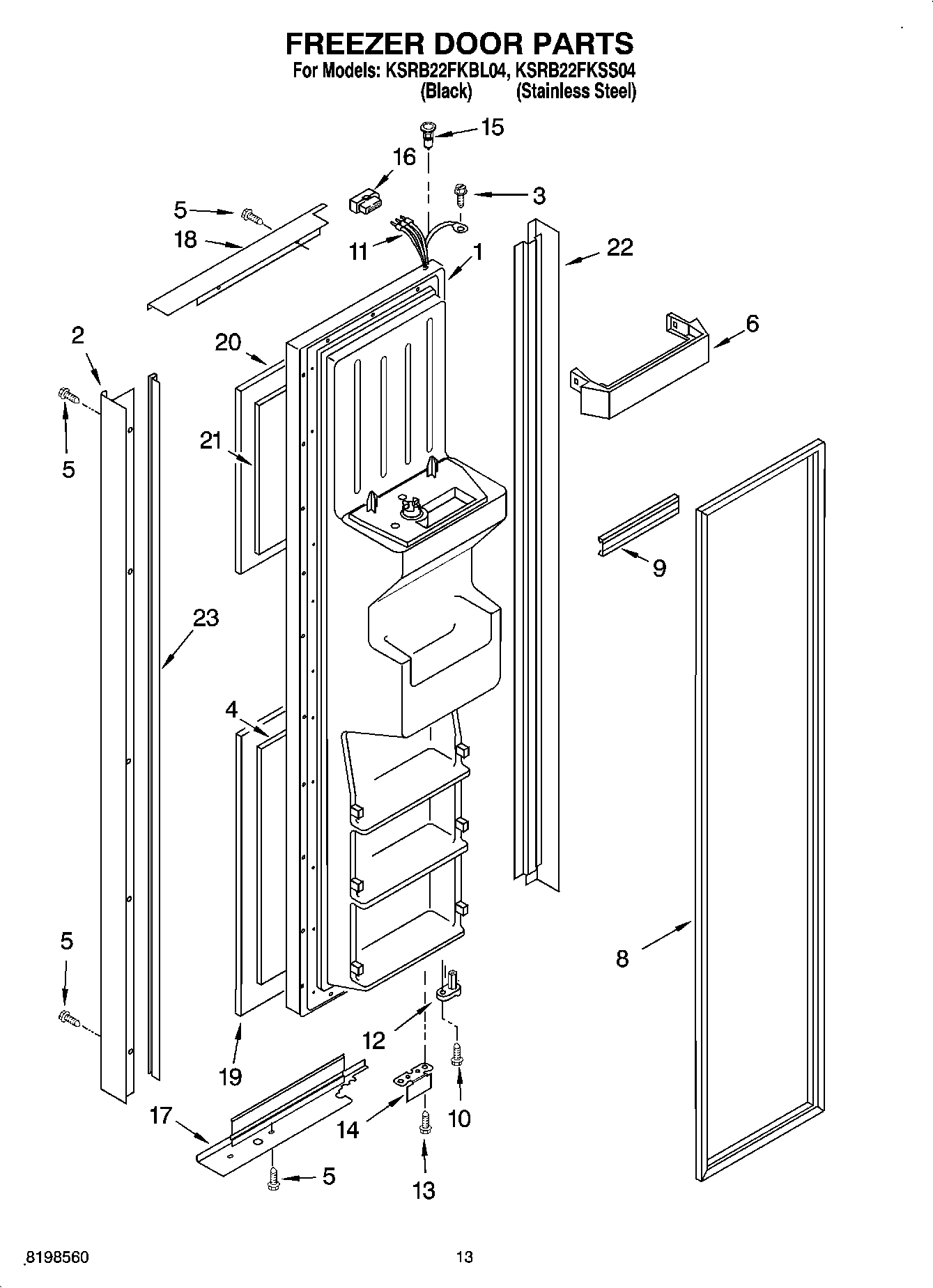

KSRB22FKBL04 08 – FREEZER DOOR PARTSadmin2025-04-26T11:30:35+00:00KSRB22FKBL04 08 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black) |
| 2 | Handle (Black) |
| 2 | Handle (Stainless Steel) |
| 3 | WP489128 Whirlpool Refrigerator Screw |
| 4 | Board, Filler Lower |
| 5 | Screw |
| 5 | Screw (Black) |
| 6 | Trivet, Shelf (4) |
| 8 | 2159080 Whirlpool Refrigerator Door Gasket |
| 9 | WPW10307490 Whirlpool Door Trim Assembly |
| 10 | WP3400012 Whirlpool Refrigerator Screw |
| 11 | Wire Harness |
| 12 | WP2182179 Whirlpool Cam Closer |
| 13 | WP489483 Whirlpool Screw |
| 14 | Bracket, Door Stop (Black) |
| 15 | WP2182181 Whirlpool Refrigerator Thimble |
| 16 | WP2154473 Whirlpool Refrigerator Connector |
| 17 | Trim, Door Bottom (Black) |
| 17 | Trim, Door Bottom (Stainless Steel) |
| 18 | Trim, Door Top (Stainless Steel) |
| 18 | Trim, Door Top (Black) |
| 19 | Panel, Door Lower (Black) |
| 19 | Panel, Door Lower (Stainless Steel) |
| 20 | Panel, Door Upper (Stainless Steel) |
| 20 | Panel, Door Upper (Black) |
| 21 | Board, Filler Upper |
| 22 | Trim, Hinge Side (Stainless Steel) |
| 22 | Trim, Hinge Side (Black) |
| 23 | Edging, Panel |
