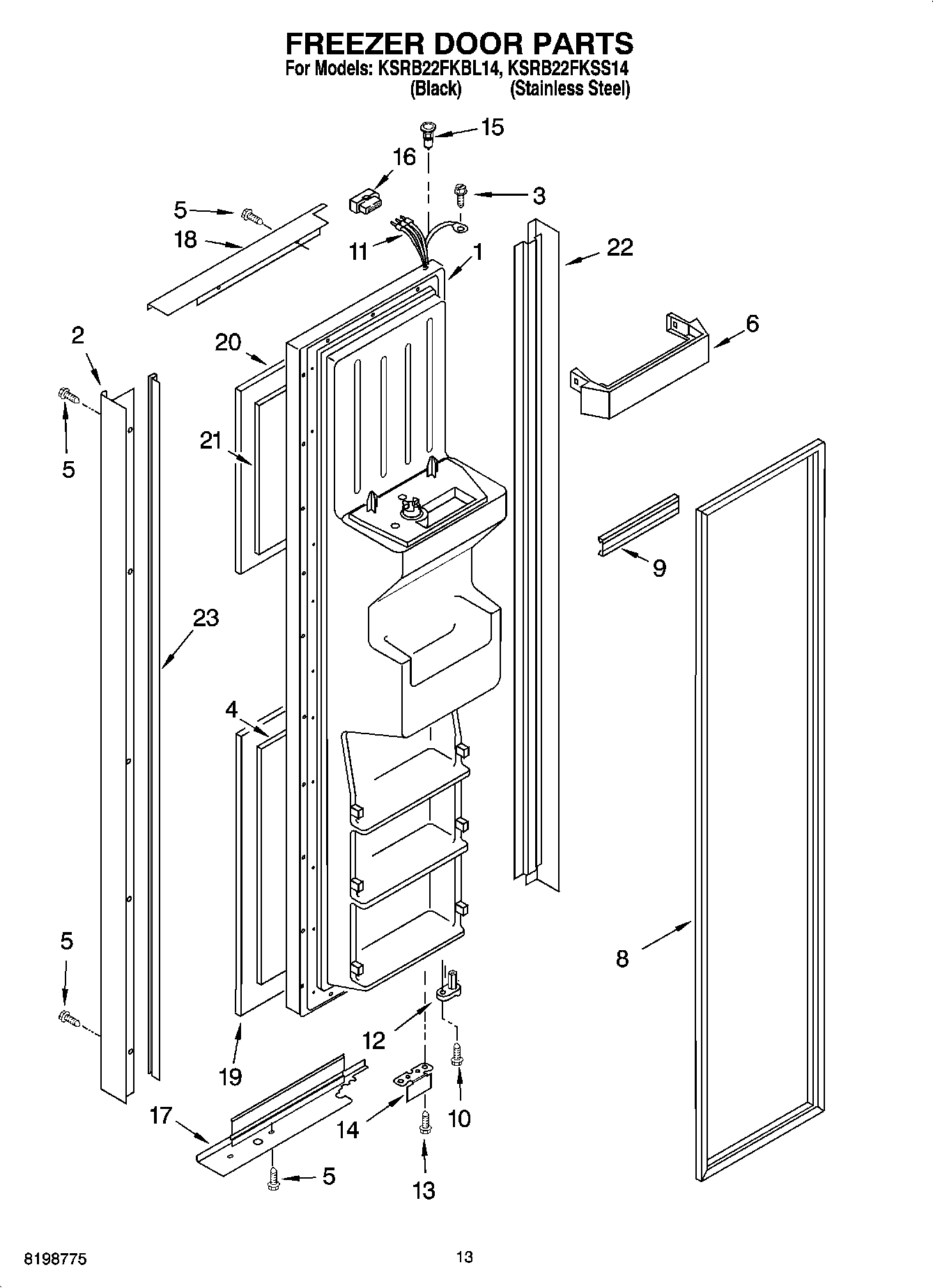

KSRB22FKBL14 08 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black)
2	Handle (Black)
2	Handle (Stainless Steel)
3	WP489128 Whirlpool Refrigerator Screw
4	Board, Filler Lower
5	Screw
5	Screw (Black)
6	Trivet, Shelf (4)
8	2159080 Whirlpool Refrigerator Door Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP3400012 Whirlpool Refrigerator Screw
11	Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
15	WP2182181 Whirlpool Refrigerator Thimble
16	WP2154473 Whirlpool Refrigerator Connector
17	Trim, Door Bottom (Black)
17	Trim, Door Bottom (Stainless Steel)
18	Trim, Door Top (Stainless Steel)
18	Trim, Door Top (Black)
19	Panel, Door Lower (Black)
19	Panel, Door Lower (Stainless Steel)
20	Panel, Door Upper (Stainless Steel)
20	Panel, Door Upper (Black)
21	Board, Filler Upper
22	Trim, Hinge Side (Stainless Steel)
22	Trim, Hinge Side (Black)
23	Edging, Panel
