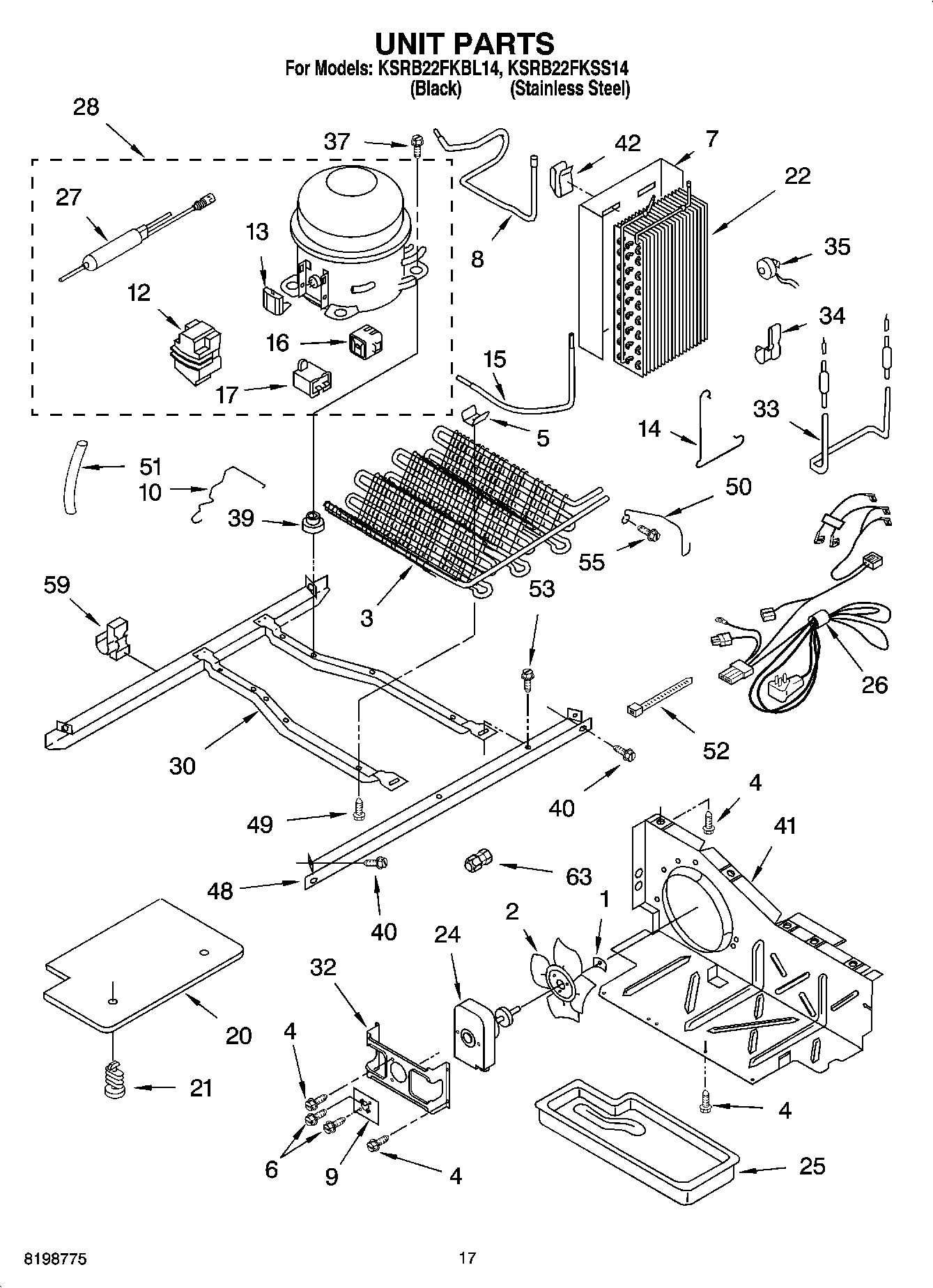

KSRB22FKBL14 10 – UNIT PARTS

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
68281160 Whirlpool Screw
7Heat Shield And Drain Pan
82205764 Whirlpool Refrigerator Tube
9Insert, Bracket
102223314 Whirlpool Refrigerator Clip
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
14Clamp
15Tube, Condenser to Heat Loop
168201786 Whirlpool Relay and Overload Start Kit
17WP4387764 Whirlpool Run Capacitor
17WPW10662129 Whirlpool Refrigerator Run Capacitor
20Unit Cover, Bottom
21489396 Whirlpool Refrigerator Clip
22WP2188822 Whirlpool Refrigerator Evaporator
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26WPW10309395 Whirlpool Refrigerator Wire Harness
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
302304903 Whirlpool Refrigerator Frame
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323197 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39876811 Whirlpool Grommet
39WP4387558 Whirlpool Refrigerator Compressor Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
51SLEEVE
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55WP489478 Whirlpool Refrigerator Screw
59Clip, Wire & Tube
63and Optional Pa
63FOLLOWING PARTS NOT ILLUSTRATED
63VALVE, ACCESS (5/8“)
63876764 Whirlpool Refrigerator Primary Valve
63978026 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
63WP978025 Whirlpool Refrigerator Valve
63VALVE, ACCESS (1/2“)
63WP4373559 Whirlpool Fitting
63WPL ARI94283A1
