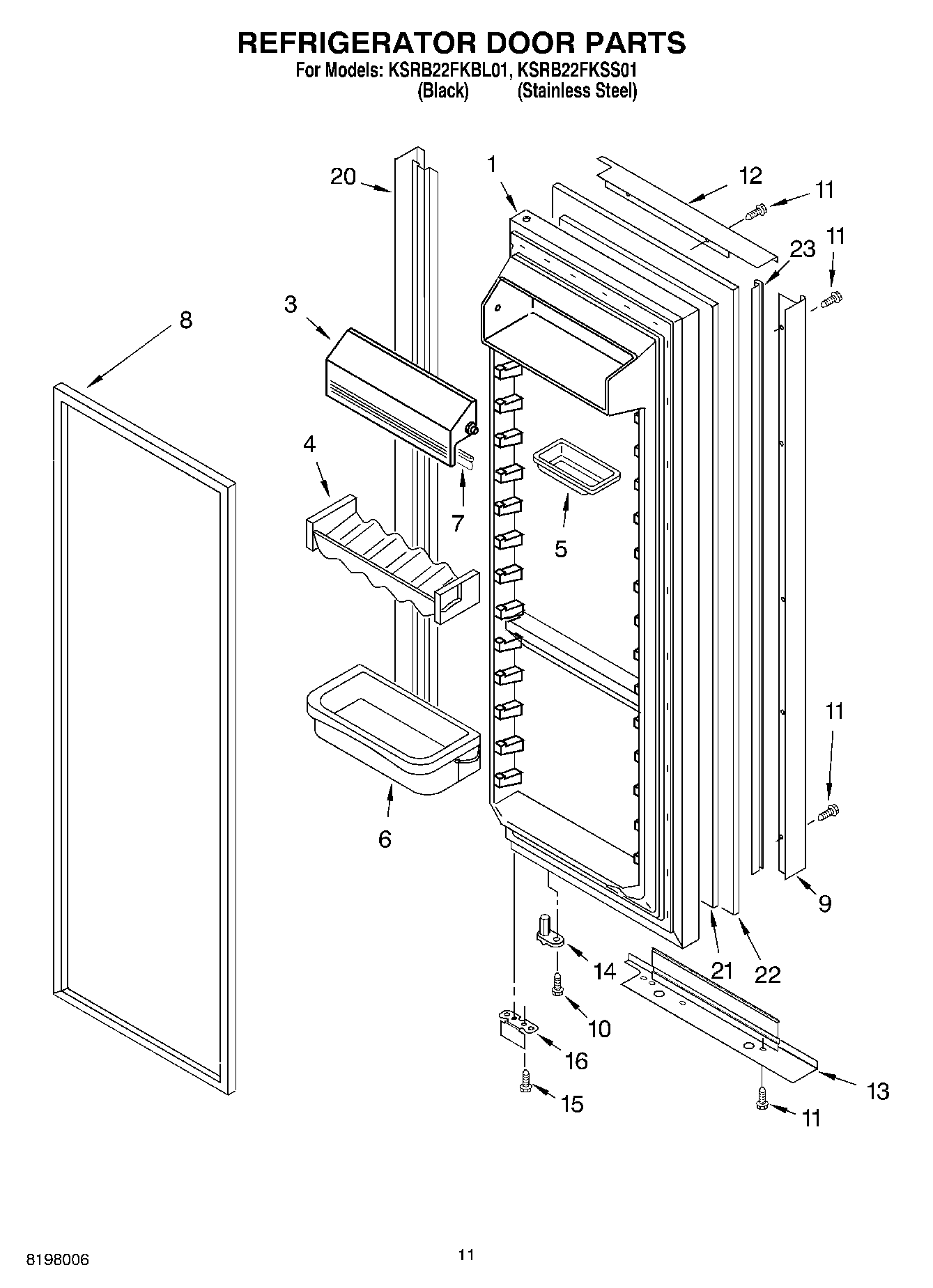

KSRB22FKSS01 07 – REFRIGERATOR DOOR

KSRB22FKSS01 07 – REFRIGERATOR DOOR

Written by

in

KSRB22FKSS01 07 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.8) (Black)
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
6Shelf Bin (3)
7Gasket, Door Compartment
82159081 Whirlpool Refrigerator Door Gasket
9Handle (Stainless Steel)
9Handle (Black)
10WP3400012 Whirlpool Refrigerator Screw
11WP8281250 Whirlpool Refrigerator Screw
11W10851443 Whirlpool Refrigerator Screw
12Trim, Door Top (Stainless Steel)
12Trim, Door Top (Black)
13Trim, Door Bottom (Stainless Steel)
13Trim, Door Bottom (Black)
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16Bracket, Door Stop (Black)
20Trim, Hinge Side (Black)
20Trim, Hinge Side (Stainless Steel)
21Board, Filler
22Panel, Door (Black)
22Panel, Door (Stainless Steel)
23Edging, Panel
