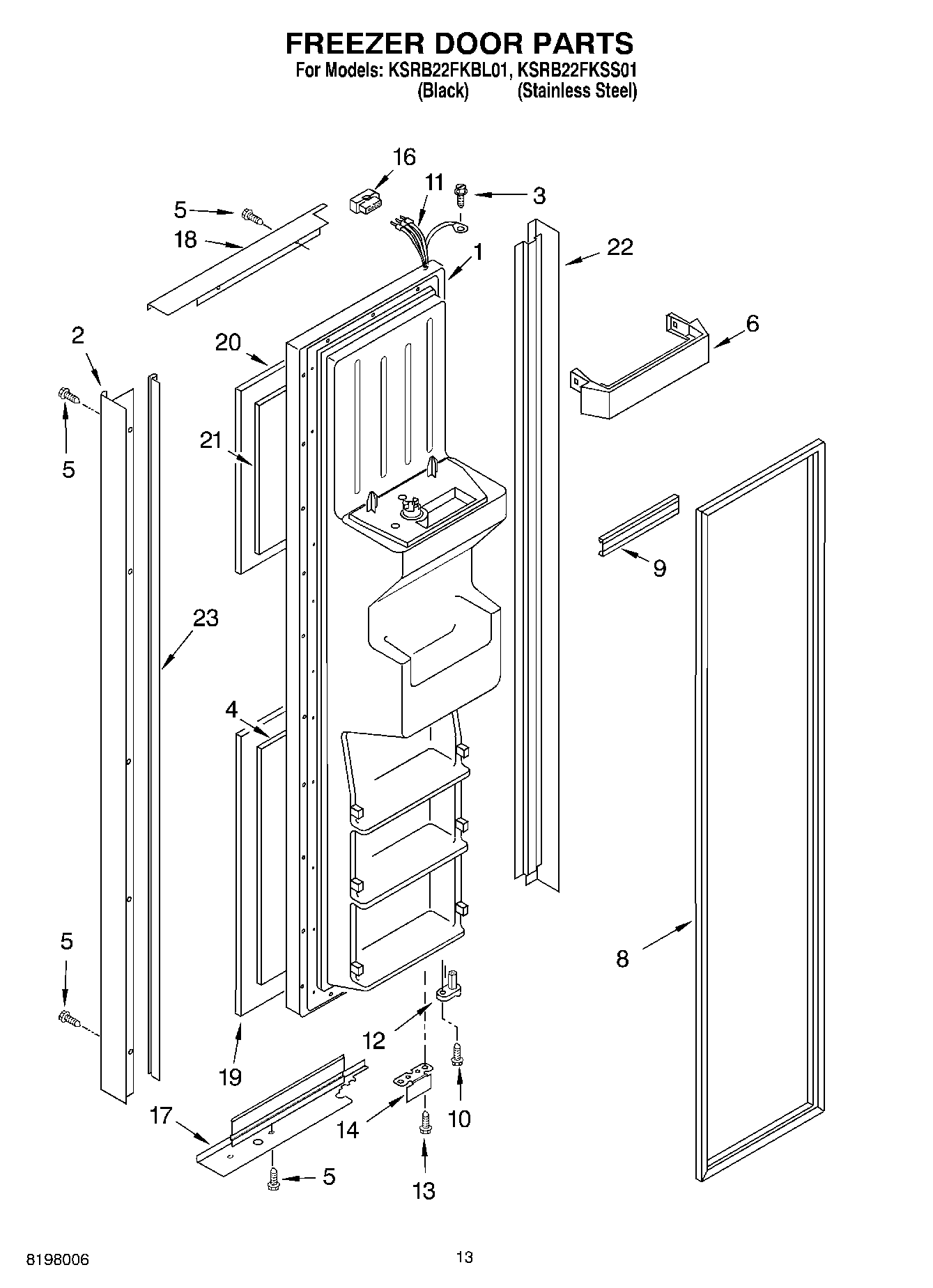

KSRB22FKSS01 08 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black)
2	Handle (Stainless Steel)
2	Handle (Black)
3	WP489128 Whirlpool Refrigerator Screw
4	Board, Filler Lower
5	W10851443 Whirlpool Refrigerator Screw
5	WP8281250 Whirlpool Refrigerator Screw
6	Trivet, Shelf (4)
8	2159080 Whirlpool Refrigerator Door Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP3400012 Whirlpool Refrigerator Screw
11	Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
16	WP2154473 Whirlpool Refrigerator Connector
17	Trim, Door Bottom (Stainless Steel)
17	Trim, Door Bottom (Black)
18	Trim, Door Top (Black)
18	Trim, Door Top (Stainless Steel)
19	Panel, Door Lower (Black)
19	Panel, Door Lower (Stainless Steel)
20	Panel, Door Upper (Stainless Steel)
20	Panel, Door Upper (Black)
21	Board, Filler Upper
22	Trim, Hinge Side (Black)
22	Trim, Hinge Side (Stainless Steel)
23	Edging, Panel
