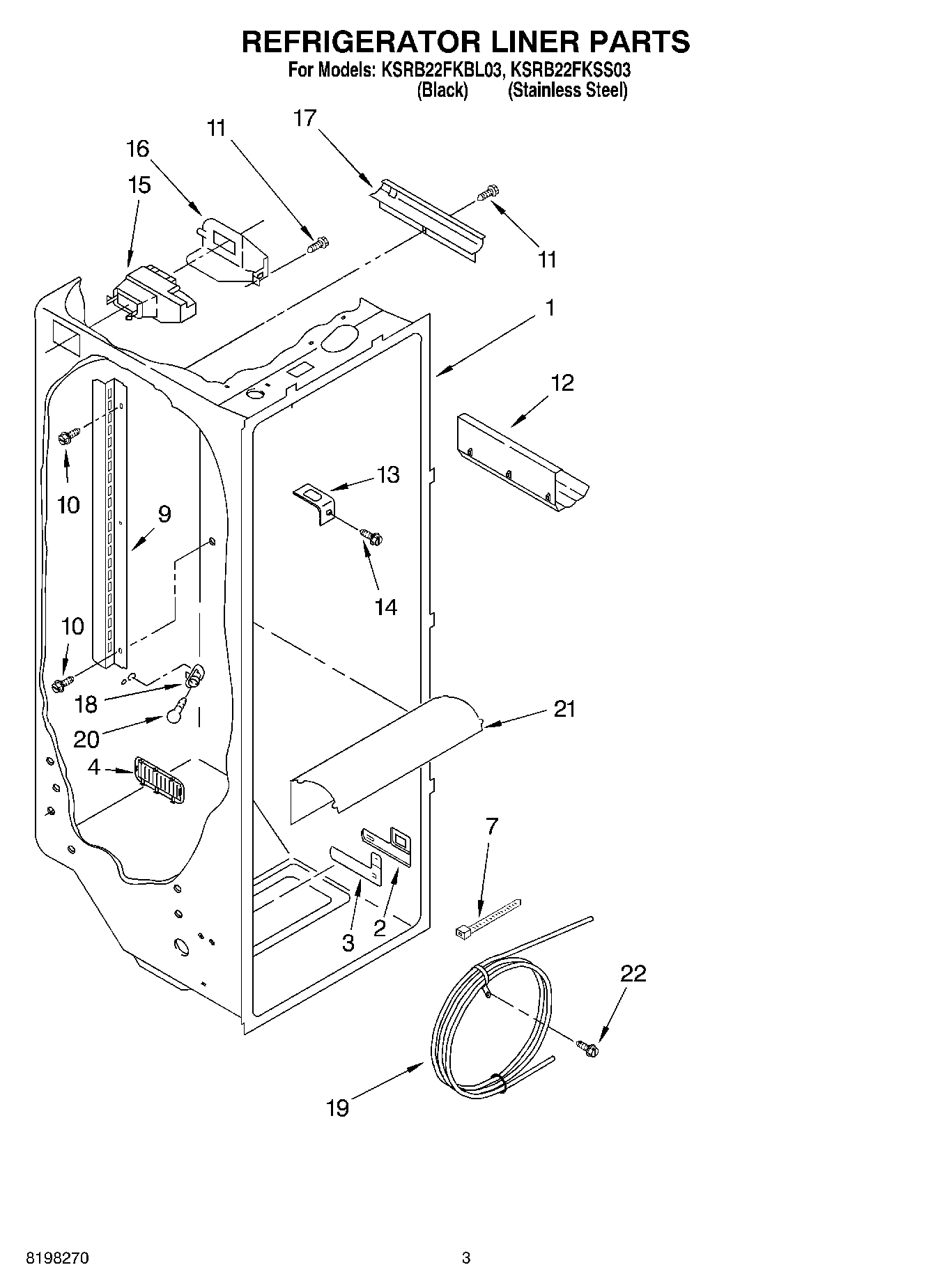

KSRB22FKSS03 02 – REFRIGERATOR LINER PARTS

KSRB22FKSS03 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRB22FKSS03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
7WPW10339879 Whirlpool Wire Tie
9Shelf Ladder
10WP488729 Whirlpool Refrigerator Door Screw
11W10759522 Whirlpool Screw
12W10777924 Whirlpool Refrigerator Wine Rack
13WP2256085 Whirlpool Refrigerator Retainer
14WP488488 Whirlpool Refrigerator Screw
15WP2209751 Whirlpool Refrigerator Air Diffuser Assembly
16WP2212240 Whirlpool Refrigerator Cover
172150331 Whirlpool Refrigerator Wire Cover
184387478 Whirlpool Refrigerator Light Socket
19WP2256126 Whirlpool Refrigerator Reservoir
20RANGE ONLY 40W 120V APPL BULB
21Light Lens
22Screw (2)
