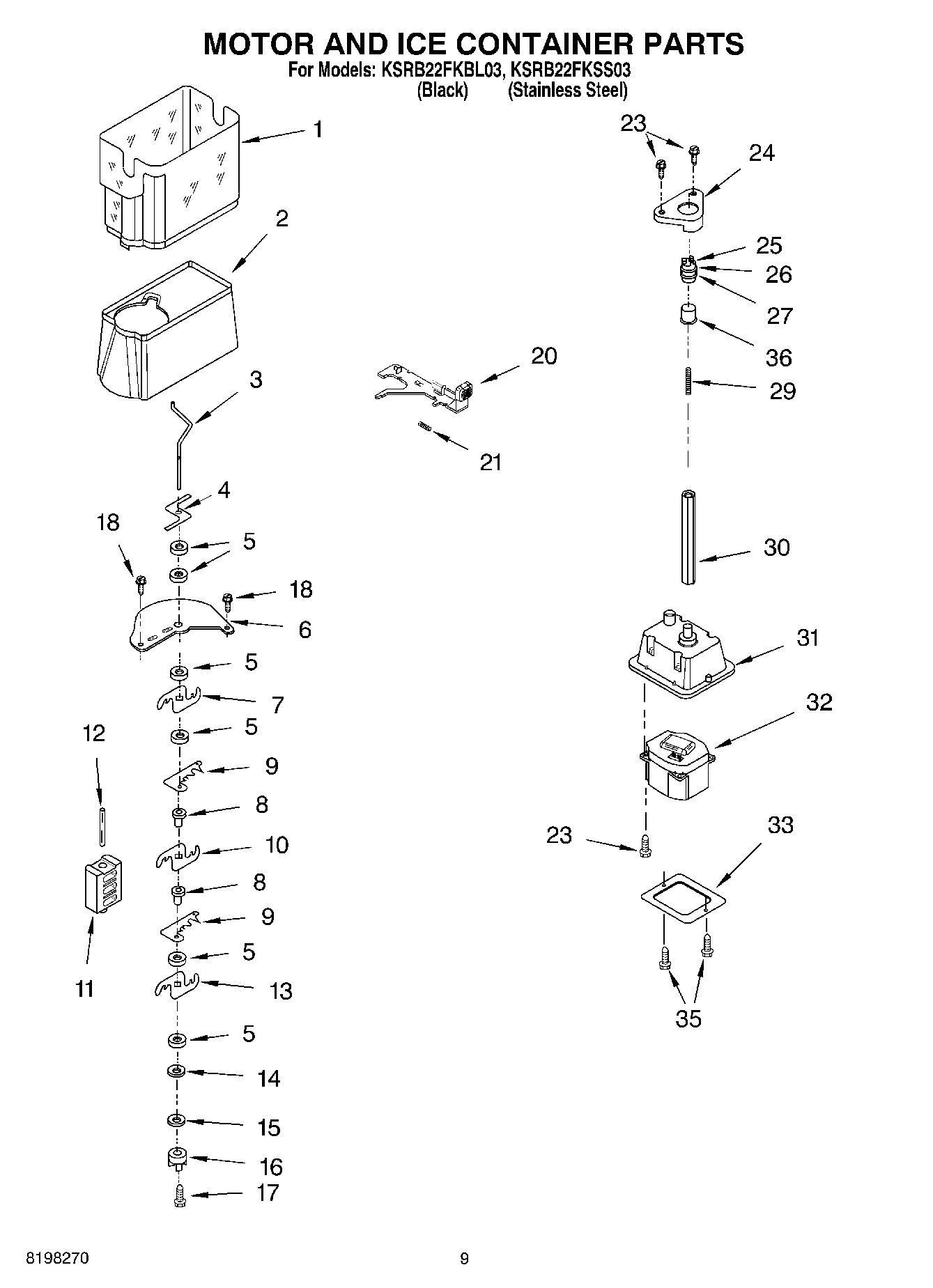

KSRB22FKSS03 06 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1Ice Bin
2Crusher Bin
3Auger
4BLade, Stirring
5WP1119007 Whirlpool Refrigerator Spacer
6Cover, Crusher
7W10278733 Whirlpool Refrigerator Blade
8WP1119005 Whirlpool Refrigerator Spacer
9Blade, Fixed
10W10278732 Whirlpool Refrigerator Blade
11Block, Blade
12489229 Whirlpool Refrigerator Roll Pin
13W10278731 Whirlpool Refrigerator Blade
14WP489235 Whirlpool Refrigerator Washer
15WP2198661 Whirlpool Refrigerator Washer
16WP2220457 Whirlpool Refrigerator Ice Bin Coupling
17WP8281164 Whirlpool Refrigerator Screw
18WP3400065 Whirlpool Refrigerator Screw
20Latch, Bin
21WP2198608 Whirlpool Refrigerator Spring
23WP8281163 Whirlpool Refrigerator Screw
24Holder
25WP2220458 Whirlpool Drive Cam
26WP2198628 Whirlpool Door Seal
27WP2212370 Whirlpool Washer
29W10852956 Whirlpool Refrigerator Spring
30WP2188917 Whirlpool Drive Shaft
31Enclosure, Motor
32WP2212363 Whirlpool Refrigerator Motor
33Cover
35WP489478 Whirlpool Refrigerator Screw
36WP2212365 Whirlpool Refrigerator Sleeve
