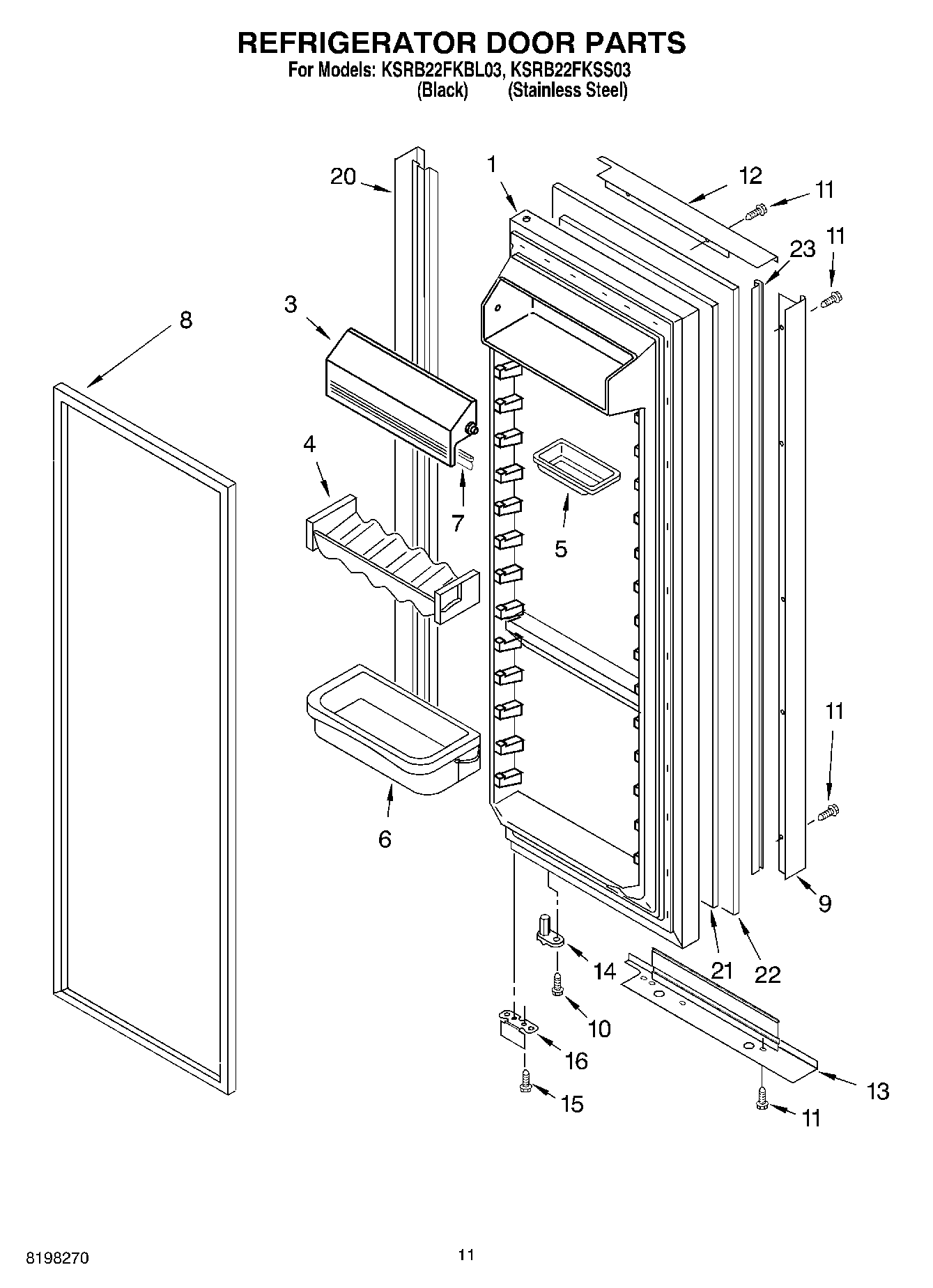

KSRB22FKSS03 07 – REFRIGERATOR DOOR PARTS

KSRB22FKSS03 07 – REFRIGERATOR DOOR PARTS

Written by

in

KSRB22FKSS03 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item No.8) (Black)
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
6Shelf Bin (3)
7Gasket, Door Compartment
82159081 Whirlpool Refrigerator Door Gasket
9Handle (Stainless Steel)
9Handle (Black)
10WP3400012 Whirlpool Refrigerator Screw
11Screw (Black)
11Screw
12Trim, Door Top (Stainless Steel)
12Trim, Door Top (Black)
13Trim, Door Bottom (Black)
13Trim, Door Bottom (Stainless Steel)
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16Bracket, Door Stop (Black)
20Trim, Hinge Side (Stainless Steel)
20Trim, Hinge Side (Black)
21Board, Filler
22Panel, Door (Black)
22Panel, Door (Stainless Steel)
23Edging, Panel
