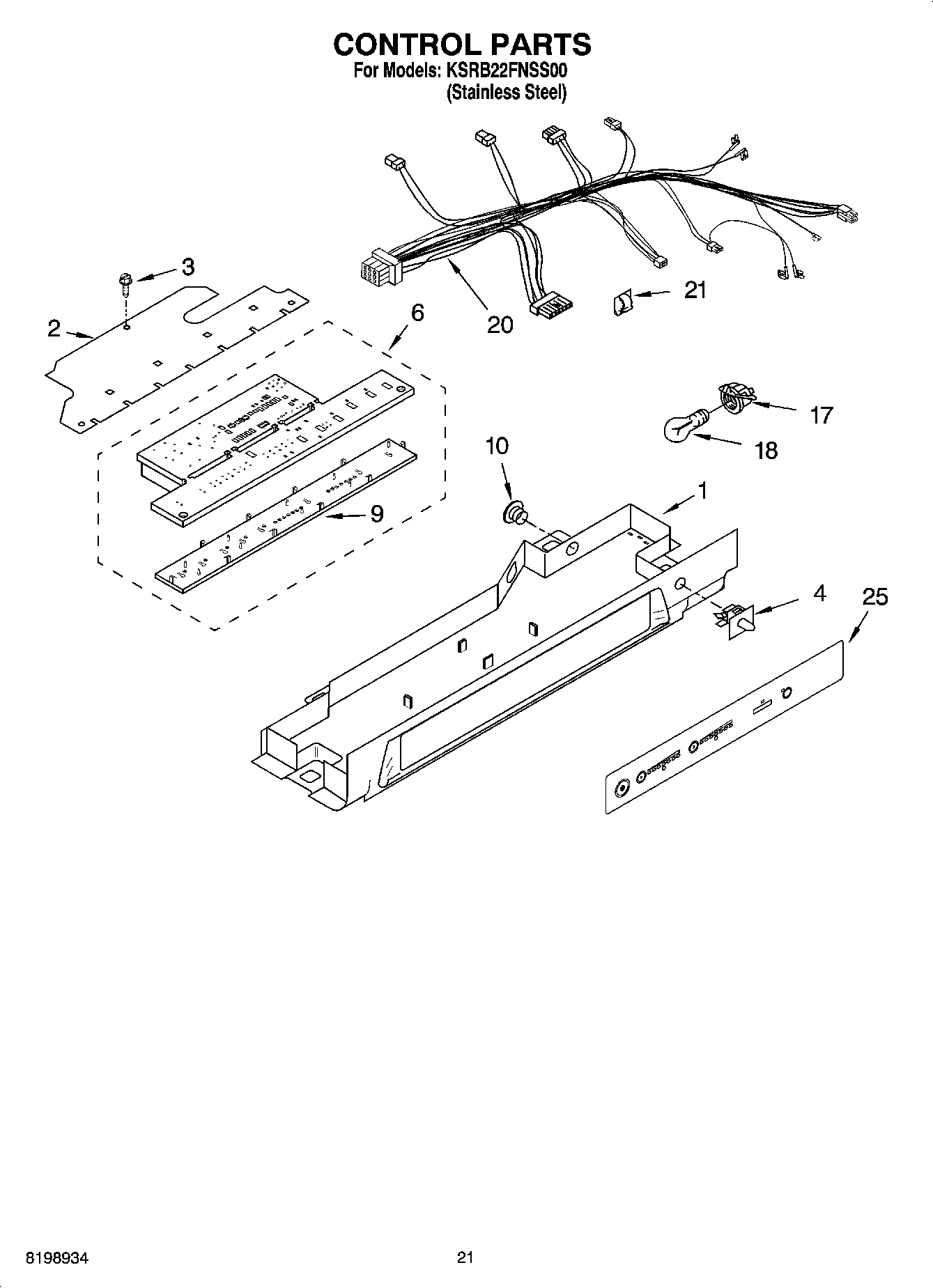

KSRB22FNSS00 12 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Products

Position	Product
	WPL ARI94368A9
	Torx Key
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI94364A4
	Ice Container Assembly
	WPL ARI94365A6
	WPL ARI94366A1
	WPL ARI94367A9
	WP542638 Whirlpool Refrigerator Grease
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	212643 Whirlpool Refrigerator Permagum Sealer
	350956 Whirlpool Spray Assembly
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	876370 Whirlpool Refrigerator Insulation
	WP72107 Whirlpool Touchup
	833938 Whirlpool Refrigerator Terminal
	350930 Whirlpool White Spray Paint
	606755 Whirlpool Refrigerator Bag
	511873 Whirlpool Refrigerator Paint
1	Control Box
2	Cover, Ctrl Box
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
6	Control Board Asm (Includes 25)
9	Insert, Control Board (Not Available Order6)
10	940014 Whirlpool Refrigerator Primary Button Plug
17	4387478 Whirlpool Refrigerator Light Socket
18	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
25	Overlay, Control Box
