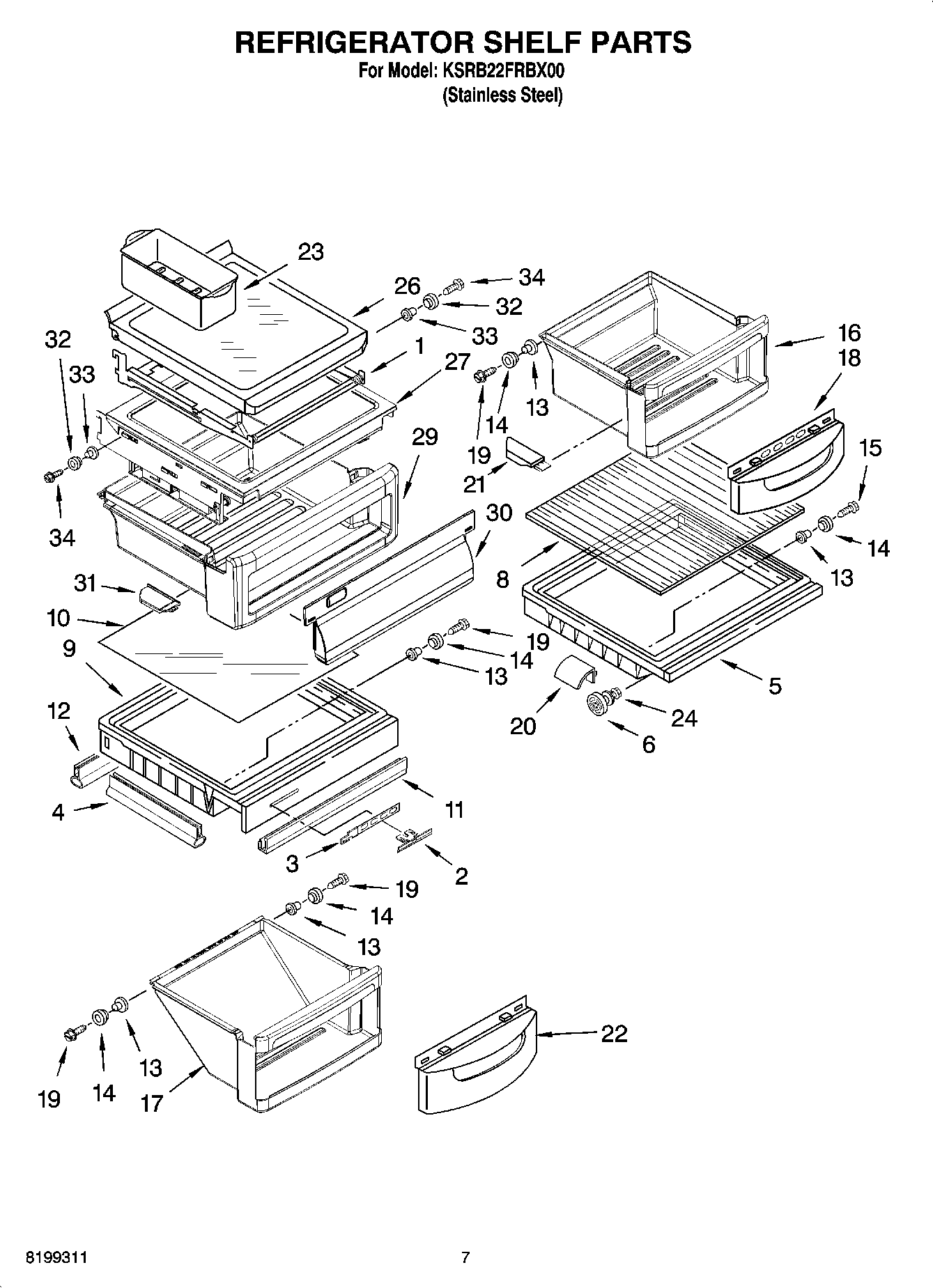

KSRB22FRBX00 05 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Button, Humidity Control
3	2174252 Whirlpool Refrigerator Slide
4	Gasket, Side (2)
5	WP2223357 Whirlpool Refrigerator Cover
6	W11223328 Whirlpool Refrigerator Shelf Stud
8	Glass, Meat Pan Cover
9	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19)
10	Glass, Crisper Cover
11	WP1125528 Whirlpool Refrigerator Gasket
12	GASKET (REAR)
13	Eyelet, Roller
14	Roller
15	WPW10272364 Whirlpool Refrigerator Screw
16	Crisper Pan (Includes 13, 14 18, 19 & 21)
17	Meat Pan (Includes 13, 14, 19 & 22)
18	Window, Crisper
19	WP489261 Whirlpool Refrigerator Screw
20	2176095 Whirlpool Refrigerator Deflector
21	Cap, Crisper Pan (Right Side)
21	2223285 Whirlpool Refrigerator Cap
22	Window, Meat Pan
23	W10136387A Whirlpool Refrigerator Egg Container
24	WP3-24004-109 Whirlpool Refrigerator Screw
26	Shelf & Roller Assembly
27	Shelf, Snack Pan
29	Snack Pan (Includes 30, 31, 32, 33, & 34)
30	Window, Snack Pan
31	Cap, Crisper Pan (Left Side)
31	Cap, Crisper Pan (Right Side)
32	Roller
33	Eyelet, Roller
34	Screw
