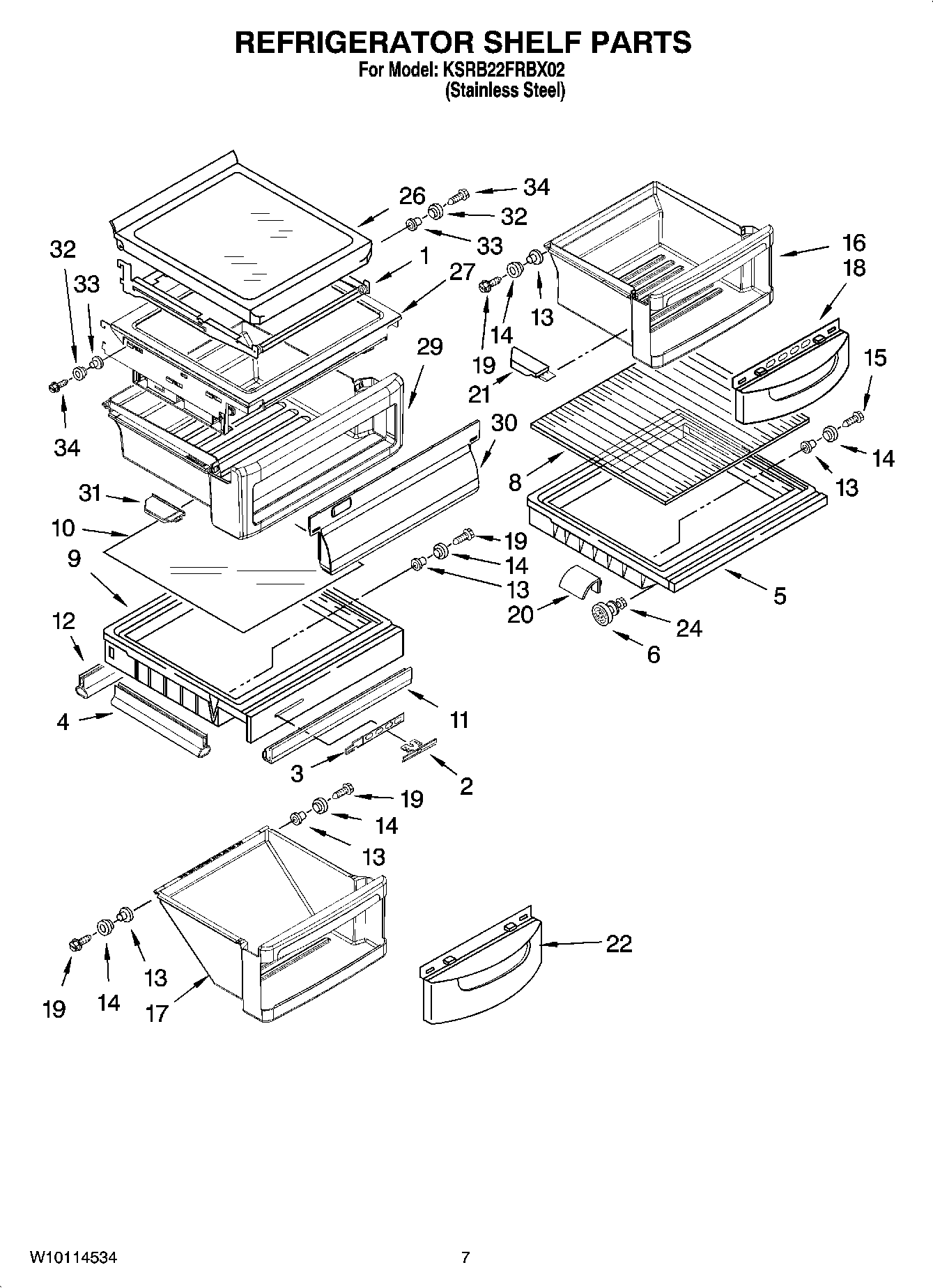

KSRB22FRBX02 05 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Button, Humidity Control
3	2174252 Whirlpool Refrigerator Slide
4	Gasket, Side (2)
5	WP2223357 Whirlpool Refrigerator Cover
6	W11223328 Whirlpool Refrigerator Shelf Stud
8	Glass, Meat Pan Cover
9	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19)
10	Glass, Crisper Cover
11	WP1125528 Whirlpool Refrigerator Gasket
12	GASKET (REAR)
13	Eyelet, Roller
14	Roller
15	WPW10272364 Whirlpool Refrigerator Screw
16	Crisper Pan (Includes 13, 14 18, 19 & 21)
17	Meat Pan (Includes 13, 14, 19 & 22)
18	Window, Crisper
19	WP489261 Whirlpool Refrigerator Screw
20	2176095 Whirlpool Refrigerator Deflector
21	2223285 Whirlpool Refrigerator Cap
21	Cap, Crisper Pan (Right Side)
22	Window, Meat Pan
24	WP3-24004-109 Whirlpool Refrigerator Screw
26	Shelf & Roller Assembly
27	Shelf, Snack Pan
29	Snack Pan (Includes 30, 31, 32, 33, & 34)
30	Window, Snack Pan
31	Cap, Crisper Pan (Right Side)
31	Cap, Crisper Pan (Left Side)
32	Roller
33	Eyelet, Roller
34	Screw
