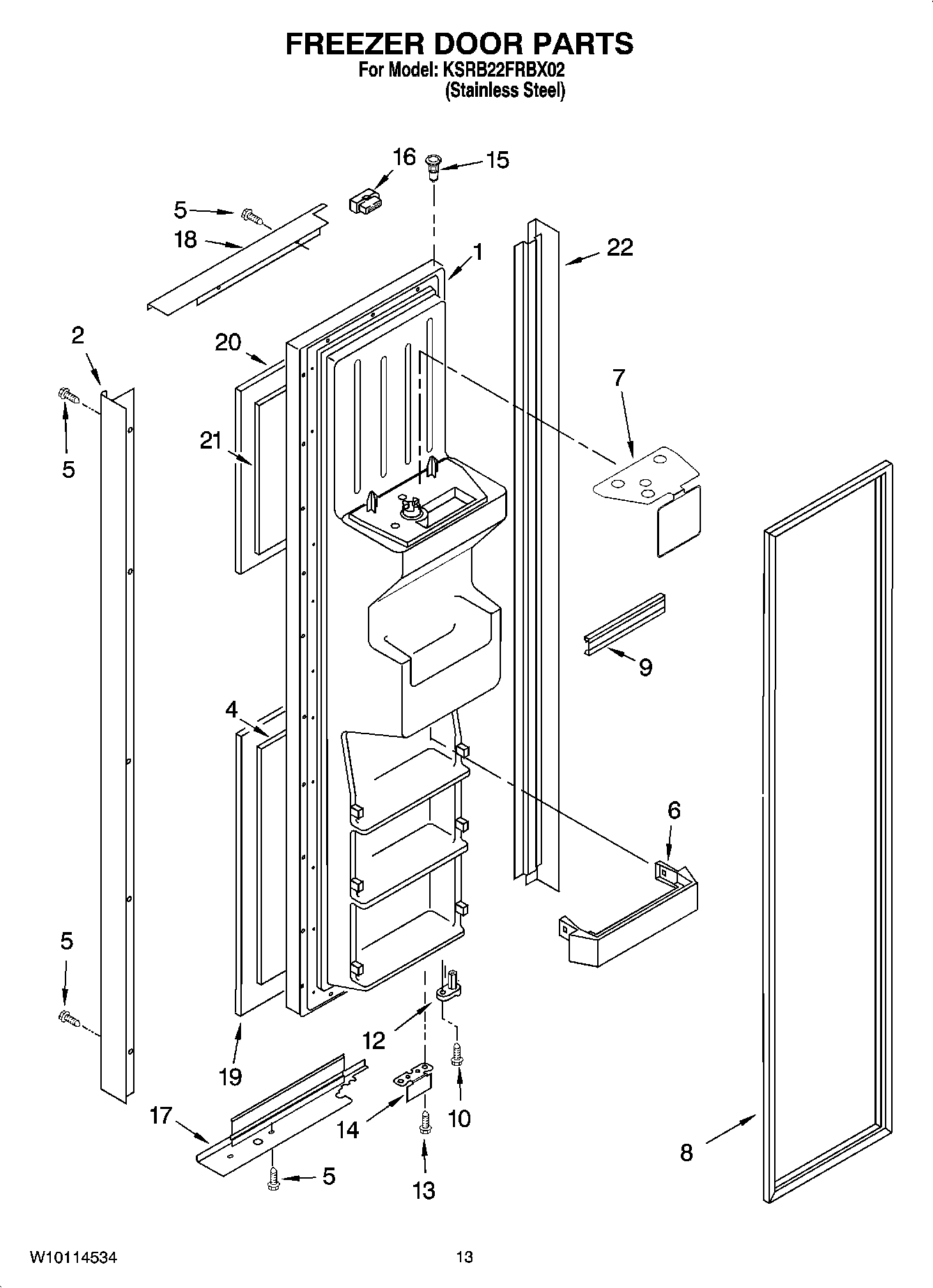

KSRB22FRBX02 08 – FREEZER DOOR PARTS

KSRB22FRBX02 08 – FREEZER DOOR PARTS

Written by

in

KSRB22FRBX02 08 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
2Handle (Stainless Steel)
4Board, Filler Lower
5WP3196175 Whirlpool Screw
6Trivet, Shelf (3)
7Safety Barrier
82159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP3400012 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Black)
15WP2182181 Whirlpool Refrigerator Thimble
16WP2154473 Whirlpool Refrigerator Connector
17Trim, Door Bottom (Stainless Steel)
18Trim, Door Top (Stainless Steel)
19Panel, Door Lower (Stainless Steel)
20Panel, Door Upper (Stainless Steel)
21Board, Filler Upper
22Trim, Hinge Side (Stainless Steel)
