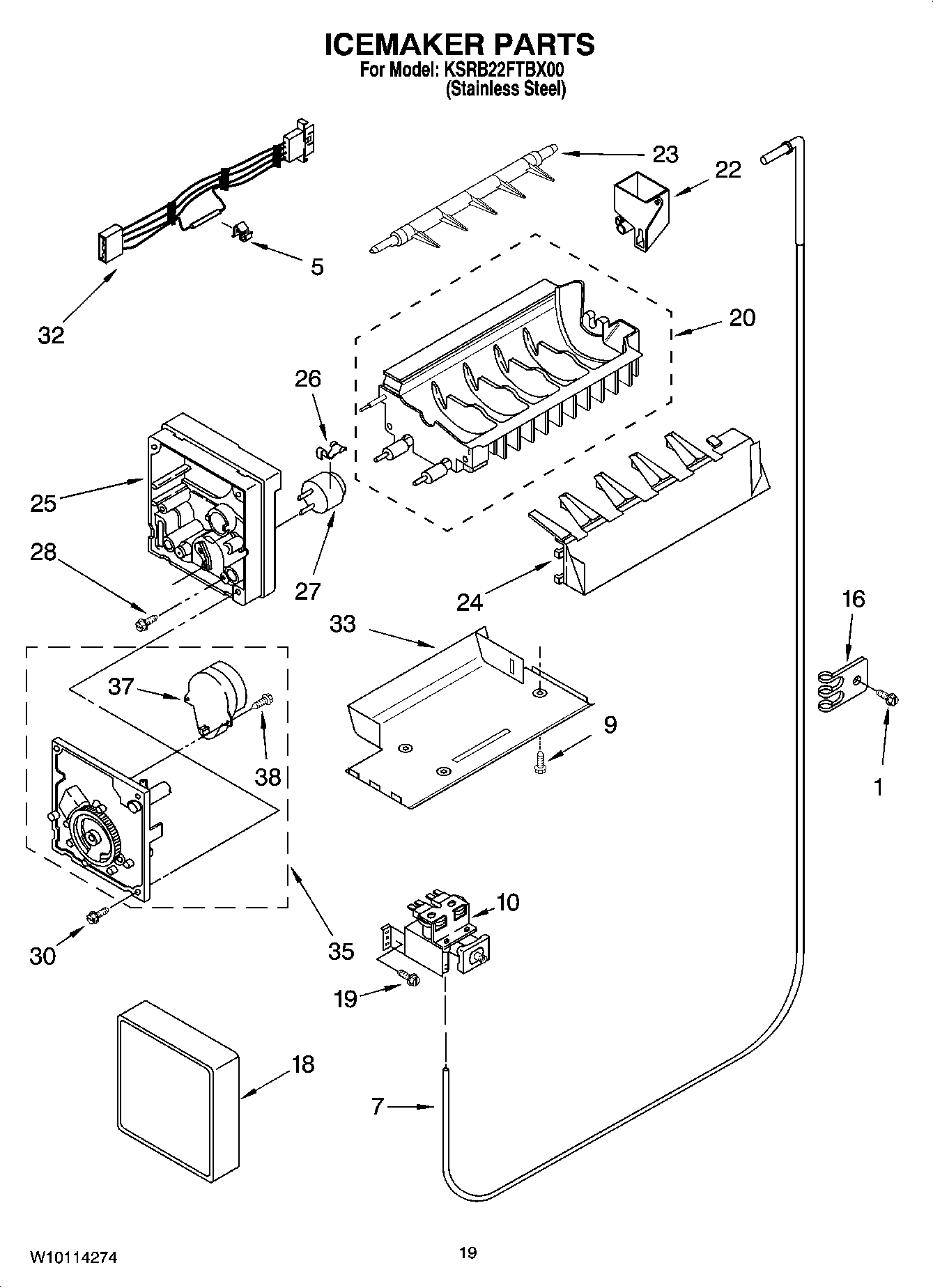

KSRB22FTBX00 11 – ICEMAKER PARTSadmin2025-04-26T11:31:55+00:00KSRB22FTBX00 11 – ICEMAKER PARTS ProductsPositionProduct5WP628379 Whirlpool Refrigerator Clip7WP2256096 Whirlpool Refrigerator Fitting9WP489478 Whirlpool Refrigerator Screw10W10822681 Whirlpool Refrigerator Water Inlet Valve16WP488366 Whirlpool Refrigerator Clamp18WPW10289690 Whirlpool Ice Maker Cover19WPW10141625 Whirlpool Refrigerator Screw Assembly20WPW10122550 Whirlpool Refrigerator Ice Mold22WP628356 Whirlpool Refrigerator Fill Cup23626753 Whirlpool Refrigerator Ejector Arm24W10297245 Whirlpool Refrigerator Arm Stripper25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly32WPW10309401 Whirlpool Refrigerator Wire Harness33Bracket, Icemaker Mounting35W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly37Motor (Not Serviced, Order Item 35)38489136 Whirlpool Refrigerator Screw100WPW10190961 Whirlpool Ice Maker
