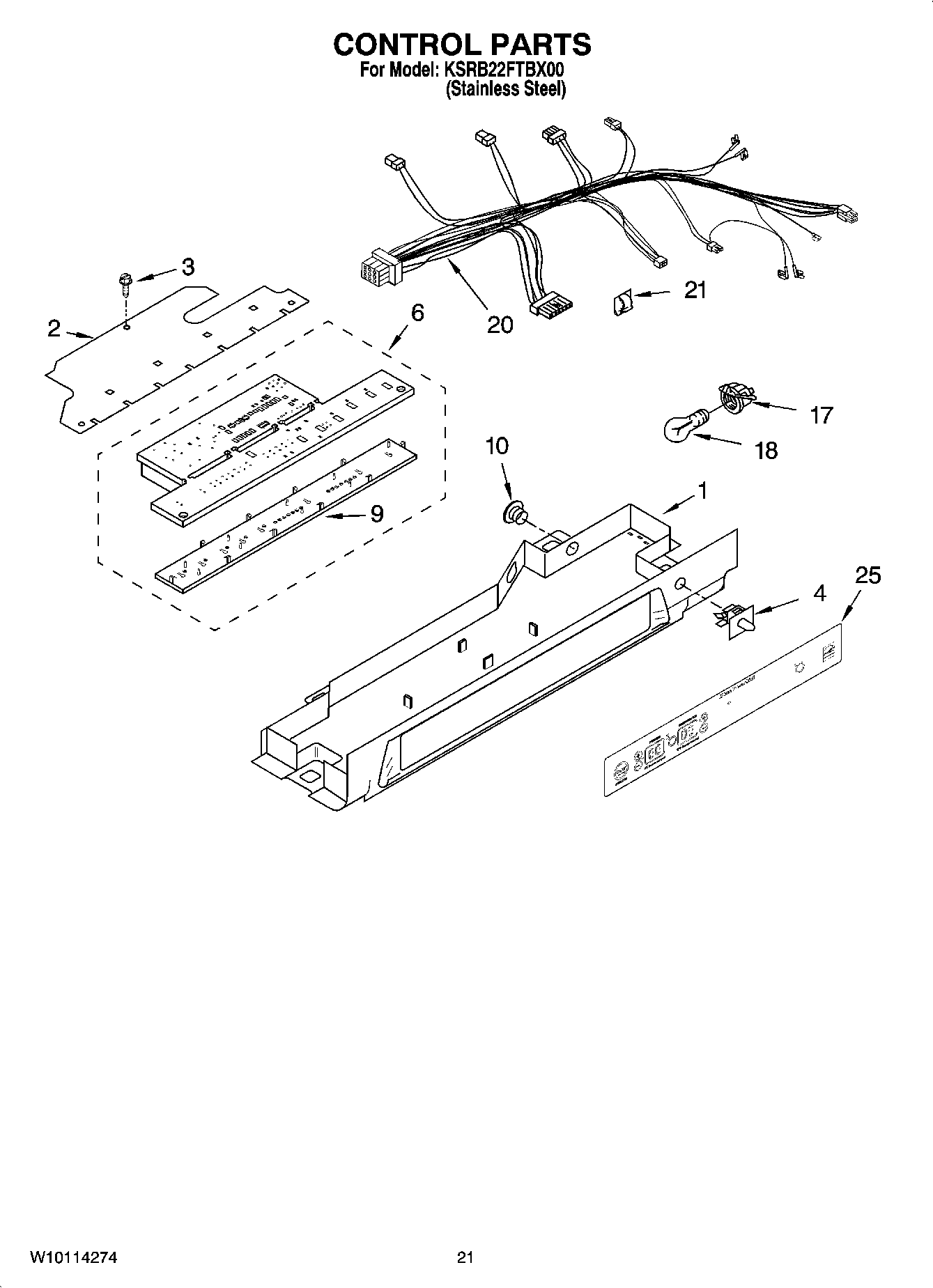

KSRB22FTBX00 12 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
8171357 Whirlpool Spray Nozzle
TORX SCREW WRENCH
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
PAINT, BULK (1 QT. GRAPHITE)
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
WPL 799833
Enamel, Black (1 Qt. Uncut)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
TAPE, VINYL (3/4 X 108“)
833938 Whirlpool Refrigerator Terminal
Torx Key
WP542638 Whirlpool Refrigerator Grease
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
1Control Box
2Cover, Ctrl Box
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
6Electronic Control
9Insert, Control Board (Not Available Order6)
10940014 Whirlpool Refrigerator Primary Button Plug
174387478 Whirlpool Refrigerator Light Socket
18RANGE ONLY 40W 120V APPL BULB
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
25Overlay, Control Box
