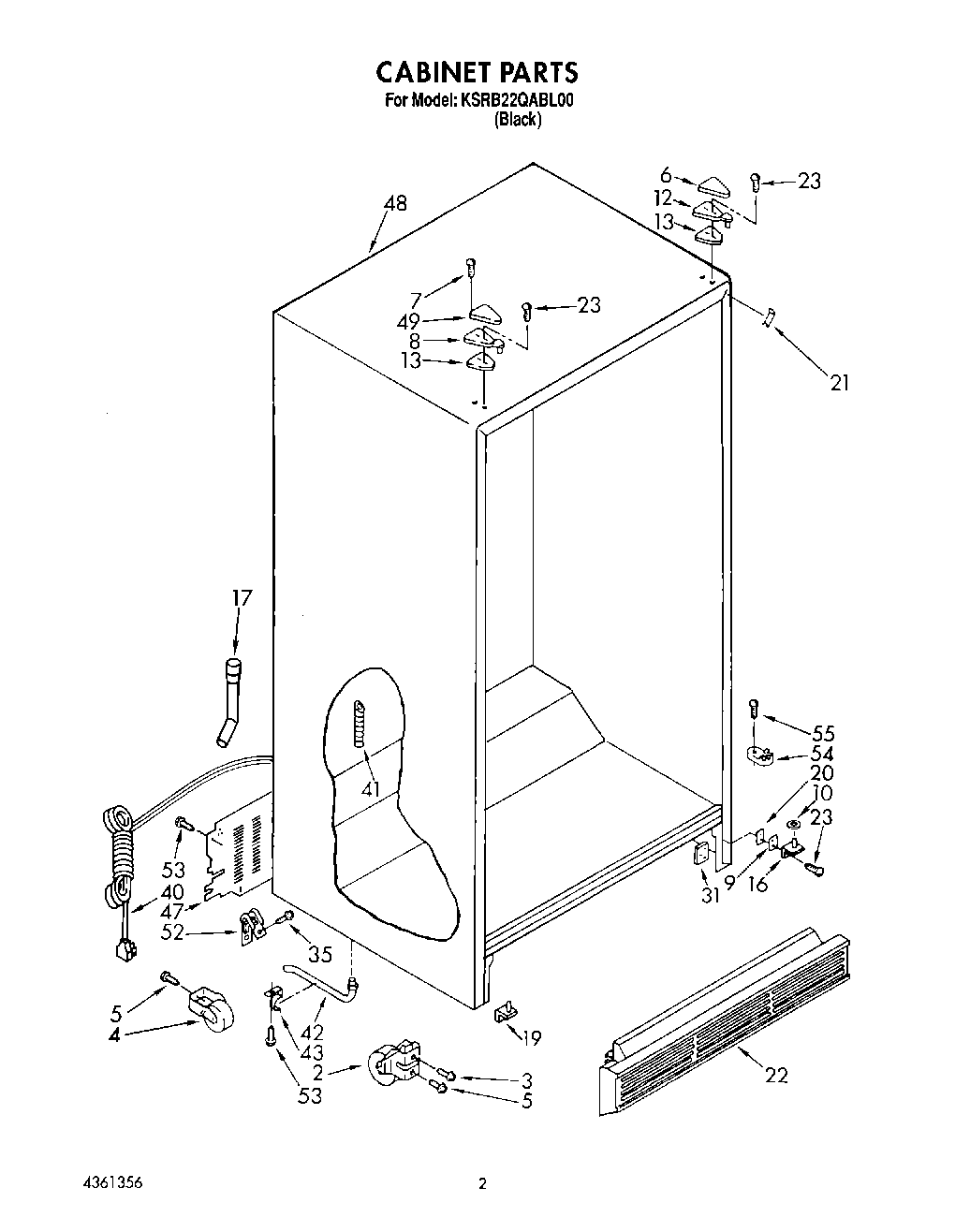

KSRB22QABL00 02 – CABINET

Products

PositionProduct
2Front Roller (2)
3Screw, 5/16-24 x 1-1/4
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5Screw, 1/4-28 x 1/2 (2)
6Hinge Cover (Black)
7Screw
8Hinge Top (R.H.)
9Shim, Bottom Hinge
10Washer, 7/16
12Hinge, Top (L.H.)
13Shim, Hinge Freezer Door
16Hinge Bottom (R.H.)
17Tube, Water Inlet
19hinge Bottom (L.H.)
20Spacer, Hinge
21Filler, Wrapper (Black)
22Grille
23Screw
31Tap Plate (2)
35WP489464 Whirlpool Refrigerator Screw
40Cord, Service
41W11566763 Whirlpool Fitting
42WP1108438 Whirlpool Refrigerator Extension
43WP1108439 Whirlpool Refrigerator Clip
47Cover, Unit
48Cabinet (Not A Serviceable Part)
49Hinge Cover
52549193 Whirlpool Refrigerator Power Clamp
54WPW10329686 Whirlpool Door Cam Black
55WP489399 Whirlpool Refrigerator Screw
