KSRB22QABL00 09 – UNIT

KSRB22QABL00 09 – UNIT

Written by

in

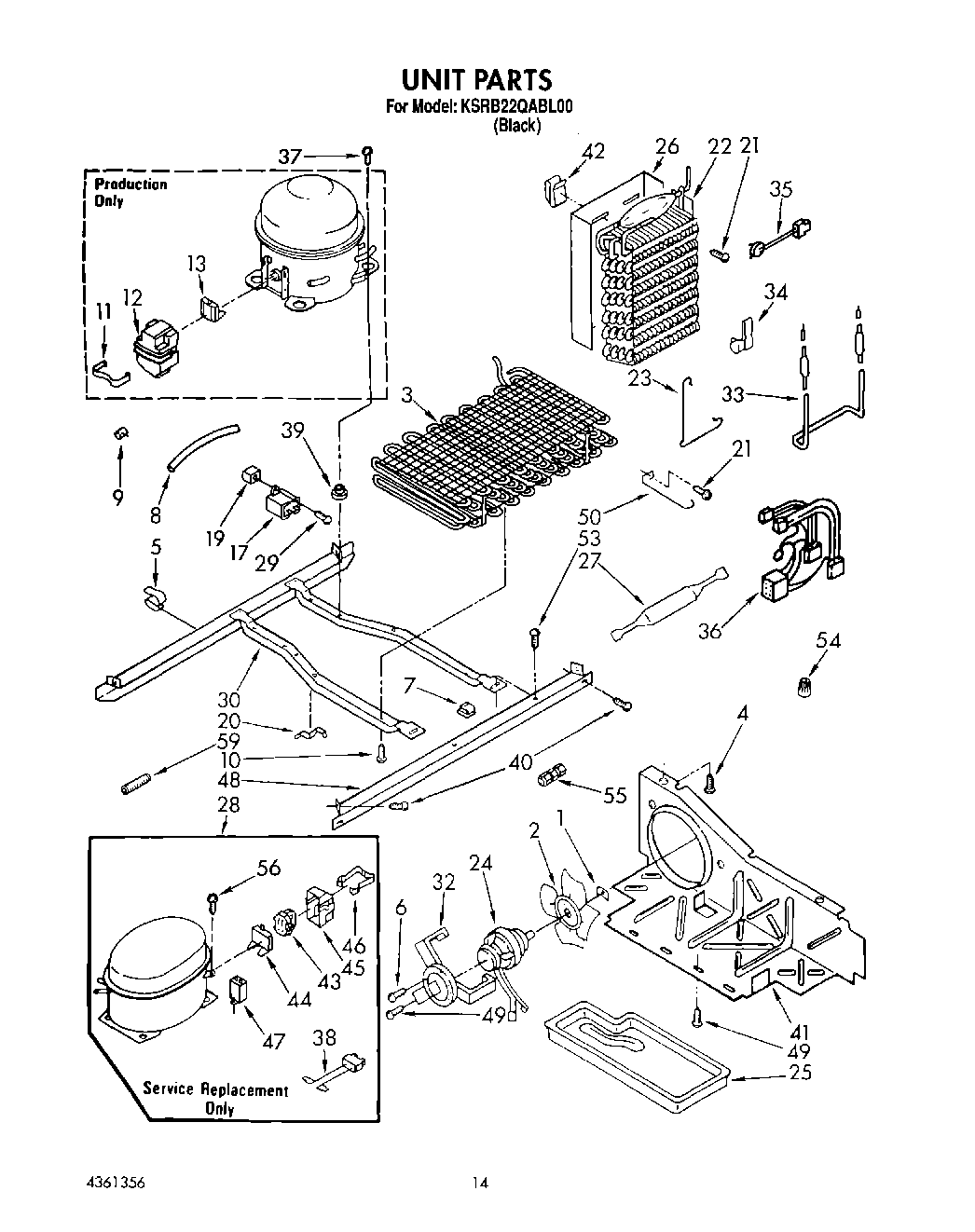

KSRB22QABL00 09 – UNIT

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
5	Clip, Wire
6	681390 Whirlpool Refrigerator Screw
7	WP488366 Whirlpool Refrigerator Clamp
8	SLEEVE
9	WP2158826 Whirlpool Refrigerator Dampener
11	case spring
12	Case, Relay
13	Overload (Includes Relay)
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
19	Screw Grommet
20	Clip (2)
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clip, Defrost Heater
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 59) (Also Order 876765 Tube Kit)
30	2304903 Whirlpool Refrigerator Frame
32	Fan, Motor Bracket
33	Heater, Defrost
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
36	Unit, Harness
37	Screw
38	WP2172890 Whirlpool Refrigerator Wire
39	Grommet (Production)
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover
46	Strap
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WP4211117 Whirlpool Refrigerator Connector
56	W11693756 Whirlpool Screw Assembly
59	Spring-Tube
